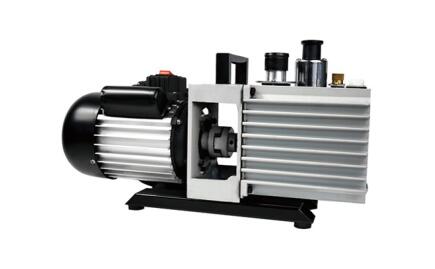

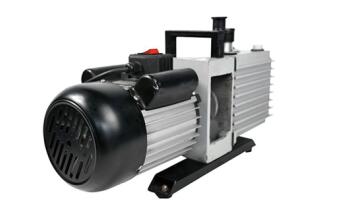

2XZ-0.25,2XZ-0.5,2XZ-1,2XZ-2,2XZ-4,2XZ-8
FAITHFUL
The series of pumps is a basic equipment,which used to remove the gas from theseal the containers. lt can be used alone, can also be used as booster pump, diffusionpump, molecular pump of the foreline pump, maintenance pump, titanium pump pre.pumping pump. lt is widely used in refrigeration, printing, pharmacy, food packing,medical treatment, instrument chemical industry, semiconductor vacuum steamanalysis and physical-chemical experiment.
Characteristics:
1.2XZ series of vacuum pump is the rotary slice pump with dipole unit constructionstructure. lt could exhaust air and vacuum the equipment serialize the process ofrefrigeration, drying and sealing of container to make it complete.
2. The advantages of small volume, light weight, low noise and easy to operate
The series of pumps is a basic equipment,which used to remove the gas from theseal the containers. lt can be used alone, can also be used as booster pump, diffusionpump, molecular pump of the foreline pump, maintenance pump, titanium pump pre.pumping pump. lt is widely used in refrigeration, printing, pharmacy, food packing,medical treatment, instrument chemical industry, semiconductor vacuum steamanalysis and physical-chemical experiment.
Characteristics:
1.2XZ series of vacuum pump is the rotary slice pump with dipole unit constructionstructure. lt could exhaust air and vacuum the equipment serialize the process ofrefrigeration, drying and sealing of container to make it complete.
2. The advantages of small volume, light weight, low noise and easy to operate
Model | 2XZ-0.25 | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8 | |
Pumping rate(L/S) | 0.25 | 0.5 | 1 | 2 | 4 | 8 | |
Ultimate | on | 6 | 6*10-1 | 6*10-2 | |||
off | 1.33 | ||||||
Revolution speed (speed/minure) | 1400 | ||||||
Working voltage(kv) | 220 | 220 | 220 | 220/380 | 220/380 | 220/380 | |
Motor Power(KV) | 0.12 | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | |
Inlet diameter(mm) | 10 | 16 | 16 | 25 | 25 | 32 | |
Oil consumption(L) | 0.3 | 0.42 | 0.4 | 0.48 | 0.55 | 1.3 | |
Pump oil temperature rise(℃) | ≤50 | ||||||
Outline size (mm) long | 410 | 475 | 475 | 485 | 525 | 515 | |
Outline size (mm) wide | 125 | 148 | 148 | 148 | 148 | 170 | |
Outline size (mm) high | 230 | 255 | 255 | 275 | 275 | 340 | |
Gross weight(kg) | 11 | 13 | 14 | 20 | 22 | 53 | |
Noise(DB) | ≤65 | ≤65 | s66 | S67 | ≤70 | ≤72 |
Model | 2XZ-0.25 | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8 | |
Pumping rate(L/S) | 0.25 | 0.5 | 1 | 2 | 4 | 8 | |
Ultimate | on | 6 | 6*10-1 | 6*10-2 | |||
off | 1.33 | ||||||
Revolution speed (speed/minure) | 1400 | ||||||
Working voltage(kv) | 220 | 220 | 220 | 220/380 | 220/380 | 220/380 | |
Motor Power(KV) | 0.12 | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | |
Inlet diameter(mm) | 10 | 16 | 16 | 25 | 25 | 32 | |
Oil consumption(L) | 0.3 | 0.42 | 0.4 | 0.48 | 0.55 | 1.3 | |
Pump oil temperature rise(℃) | ≤50 | ||||||
Outline size (mm) long | 410 | 475 | 475 | 485 | 525 | 515 | |
Outline size (mm) wide | 125 | 148 | 148 | 148 | 148 | 170 | |
Outline size (mm) high | 230 | 255 | 255 | 275 | 275 | 340 | |
Gross weight(kg) | 11 | 13 | 14 | 20 | 22 | 53 | |
Noise(DB) | ≤65 | ≤65 | s66 | S67 | ≤70 | ≤72 |
