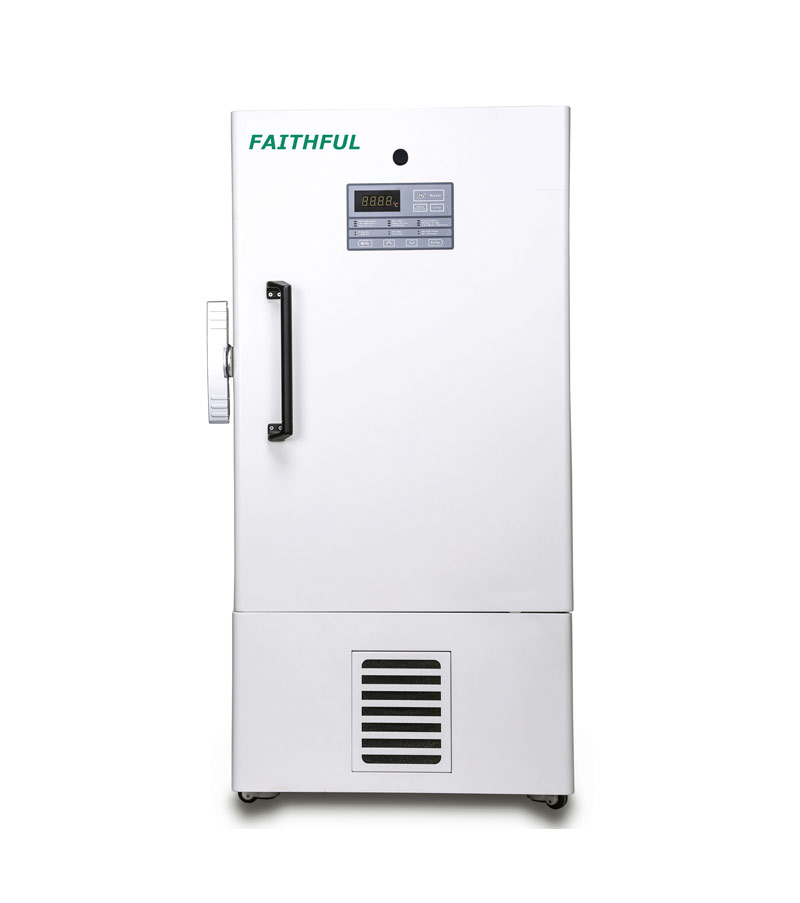

-86°CUltra Low Temperature Freezer -FSF-86V588E

Promed Ultra Low Temperature Freezer are specially designed to store samples products
Availability:
Quantity:
  • FSF-86V588E

  • FAITHFUL

Features

  • Ambient temperature :10℃~32℃.

  • Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1℃.

  • Independent research and development of mixed refrigerant can make device save energy 50%.

  • Better uniformity, uniformity is increased 30%.

  • The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.

  • 304 stainless steel inner chamber for friendly using and easy cleaning.

  • VIPⅡPLUS technology, special narrow design for entering elevators.

Safety

  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.

  • Visual and audible alarm system:High/low temperature,Power failure,Abnormal voltage,Sensor error,Filter screen check,Low battery,Condenser clean,High ambient temperature,Door ajar alarm

  • Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

  • Keyboard lock, password protection to avoid set parameter randomly.

  • Special noise reduction design.Dimensions

Humanized design

  •  4 casters with stopper for easy moving and fixation.

  • Standard 25mm test hole for easy connecting to temperature monitoring systems.

  • 3 adjustable shelves for easy storing.

  • Removable condenser dust gauze convenient for cleaning and maintenance.

  • Removable inner door for user to defrost and clean.

  • Standard USB port,USB port to read temperature and alarm conditions in recent 1 months.

Special:

  • Patented technology, mixed refrigerant.

  • Save energy up to 50%.

  • Wide voltage design: 187V~242V available.

  • Build-in back-up battery: 72 hours power failure alarm.

  • 9 visual and audible alarms.

Performance
Temperature Range
-40~-86°C
Ambient Temperature
+10~+32°C
Controller
Microprocessor
Display
Digital Display
Refrigeration SystemCompressor/Brand
2/SECOP
Refrigerant
Mixed
Cooling Type
Direct cooling
Defrost TypeManual
Electrical DataPower Supply(V/Hz)
220/50~60; 115/60
Rated Power(W)
1500
Electrical Current(A)
9.1
Power Consumption
16.5kWh/24h
Power failure backup system
72H
DimensionsCapacity588L
Interior Size(W*D*H)
606*738*1310mm
Exterior Size(W*D*H)
880*1090*1995mm
Package Size(W*D*H)
970*1140*2190mm
 N.t./G.t.(approx)
290/360kg
Loading Qty(20'/40'/40'H)
12/24/24
AlarmHigh/Low Temperature
Y
Sensor Error
Y
Power Failure
Y
Door ajar
Y
High Ambient temp.
Y
Condenser clean
Y
Low battery
Y
Filter screen check
Y
Abnormal voltage
Y
AccessoriesData Logger
Optional
Caster
4
USB port
Y
Remote alarm port
Y
RS232/485 port
Y
Inner Door/shelf
2/3
Test hole
1/25MM
CO2/LN2 back up system
Optional
Cold storage box loading QTY
40000
