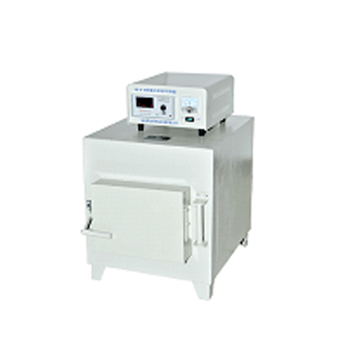

Box-resistance Furnace

Box-resistance Furnace

Quantity:

Product Description

1. The series box-resistance furnaces adopt the cold rolling steel spraying exterior. Lifting and horizontal moving type door ensure the inner temperature evenness and no leakage under the high temperature.

2. PID two digitals screen controller or Programmable controller as requirement. Controller has the function of timing and over-temperature protection.

3. Medium temperature box adopts enclosed firepot. The spiral electric alloy wire coil as heating component coiled on the furnace walls. It is efficient and durable.

4. High-temperature tubular furnace adopts high temperature proof combustion tube, and takes Silicon Carbide Rod as heating component to fix on the firepot exterior.

5. High-temperature box-resistance furnace takes Silicon Carbide Rod as heating component to fix inside the firepot.

6. The heat preservation material adopts 0.4-0.6 light cellular heat insulator stick and alumina silica cell cotton, it has lower thermal storage and heat conductivity factor, large thermal storage in firepot, heating fast, the furnace surface temperature is low and high effective.

Optional accessories: LCD controller, Program temperature control device, Chimney


ModelPower
(KW)

Max

 Tem.

(℃)
Voltage
V
Working
Voltge
V

Tem.

Rising

 time
(Empty/min)

Inner

 Chamber

Size (mm)
Exterior

Size

(mm)

Packing

Size

(mm)

N.W.

(Kg)

G.W.
(Kg)

SX-

2.5

-10
2.51000220220≤60200×
120
×80
595×
410
×467
780×
490
×550
6780

SX-

4

-10
4220220≤80300×
200
×120
790×
500
×527
900×
610
×640
134150

SX-

8

-10
8380380≤90400×
250
×160
910×
600
×635
930×
630
×650
203230

SX-

12

-10
12380380≤100500×
300
×200
1100×
720×
675
1120×
770×
740
271305

XL

-1

4220220≤80325×
200
×125
650×
600
×470
750×
650
×540
7092

SX-

2.5

-12
2.51200220220≤100200×
120
×80
595×
410
×464
790×
590
×560
6780

SX-

5

-12
5220220≤120300×
200
×120
790×
500
×527
900×
590
×640
135150

SX-

10

-12
10380380≤120400×
250
×160
910×
600
×635
1120×
770
×740
203230

SRJX-

4

-13

(elema)

413002200-210≤240250×
250
×100
650×
510
×485
850×
640
×600
185206

SRJX-

5-

13
(elema)
52200-
210
≤240250×
250
×100

SRJX-

8-

13
(elema)
83800-
350
≤350500×
278
×180
850×
630
×610
SRJX-
2-13

(single

tube)

22200-
210
≤45φ
30×
180
965×
570
×600
930×
640
×635
190210
SRJX-

2.5

-13

(two

tube)

2.52200-
210
≤452-φ
22×
180
450×
270
×360
680×
460
×510
2025
