Catalogue -FTDL-5G/5G PLUS

Quantity:

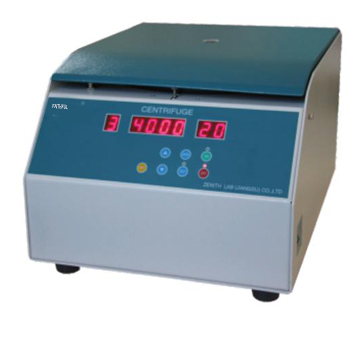

FLC-5G:Microcomputer control,brushless motor variable frequency

Display rotor NO,change RPM/RCF directly

Imbalanced protection,self locking,overspeed protection,speed no signal protection,motor Holzer fault protection,high or low power supply voltage protection,over-current protection

Fault automatic diagnosis and recognition,programmable operation,automatic storage of data

With electronic door lock device,easy to operate,emergency unlocking device

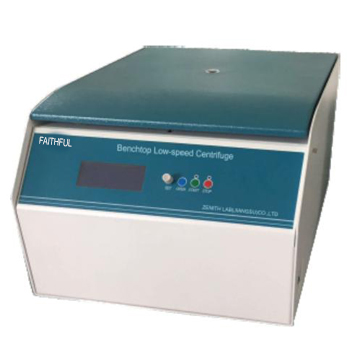

FLC-5G plus:Intelligent microcomputer control,brushless motor drive

LCD display with High-definition and high contrast customization

Automatic rotor identification system,RPM,RCF,running time will be showed at the same time

Rotary encoder operation,with emergency lock device

10 period of ascending and descending speed gear is optional

10 program memory function,including rotor number in each group,RPM,RCF,time,lifting speed

Have door cover,imbalance,overspeed,no speed signal protection,motor hall fault protection,power supply voltage is too high,too low protection,over-current protection


ModelFTDL-5GFTDL-5Gplus
MAX RPM500RPM500RPM
MAX RCF4540xg4540xg
Timer0-99min0-99min59s
Max Rotor capacity100ml*8 swing rotor100ml*8 swing rotor
Voltage110V 60Hz/220V 50Hz110V 60Hz/220V 50Hz
Dimension450*600*360mm450*600*360mm
Weight40kg42kg
