FHC-12MINI / PLUS
FAITHFUL

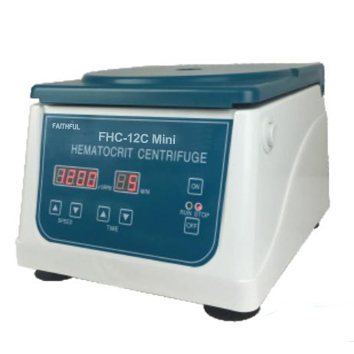

FHC-12C Mini:
High strenght plastic case,small volume and light weight
High strenght variable frequency brushless motor drive
Digital display speed and running time
With mechanicaldoor lock,safety switch,open cover stop
Error code shows,speed can be adjusted
Accel/Decel speed rate adjustable
Over Speed alarm,unbalanced protection
Brake function,automatic alarm after work
With reader

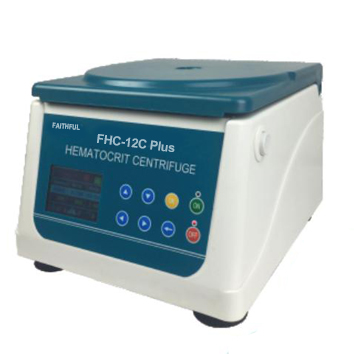

FHC-12C Plus:
High strength plastic case,small volume and light weight
Microprocessor control
LCD display speed /RCF/time/Acceleration/Deceleration/rotor NO./Door station
Frequency conversion brushless motor
Over speed alarm and finished alarm
Mechanical door lock,the cover open and will stop
10 groups of programs with memory function
Programs can be programmed according to user parameters
Wiht reader
FHC-12C Mini:
High strenght plastic case,small volume and light weight
High strenght variable frequency brushless motor drive
Digital display speed and running time
With mechanicaldoor lock,safety switch,open cover stop
Error code shows,speed can be adjusted
Accel/Decel speed rate adjustable
Over Speed alarm,unbalanced protection
Brake function,automatic alarm after work
With reader
FHC-12C Plus:
High strength plastic case,small volume and light weight
Microprocessor control
LCD display speed /RCF/time/Acceleration/Deceleration/rotor NO./Door station
Frequency conversion brushless motor
Over speed alarm and finished alarm
Mechanical door lock,the cover open and will stop
10 groups of programs with memory function
Programs can be programmed according to user parameters
Wiht reader
Model | FHC-12 Mini | FHC-12 plus |
MAX RPM | 12000RPM | 12000RPM |
MAX RCF | 15300xg | 17200xg |
Timer | 0-99min | 0-99min59s |
Rotor capacity | Φ1.5*75mm*24 capillary tubes | Φ1.5*75mm*24 capillary tubes/13000rpm(standard) 1.5ml*12/16000rpm (optional replaceable) |
Voltage | 110V 60HZ/220V 50HZ | 110V 60HZ/220V 50HZ |
Dimension | 260*300*205mm | 260*300*205mm |
Weight | 7kg | 7kg |
Model | FHC-12 Mini | FHC-12 plus |
MAX RPM | 12000RPM | 12000RPM |
MAX RCF | 15300xg | 17200xg |
Timer | 0-99min | 0-99min59s |
Rotor capacity | Φ1.5*75mm*24 capillary tubes | Φ1.5*75mm*24 capillary tubes/13000rpm(standard) 1.5ml*12/16000rpm (optional replaceable) |
Voltage | 110V 60HZ/220V 50HZ | 110V 60HZ/220V 50HZ |
Dimension | 260*300*205mm | 260*300*205mm |
Weight | 7kg | 7kg |
