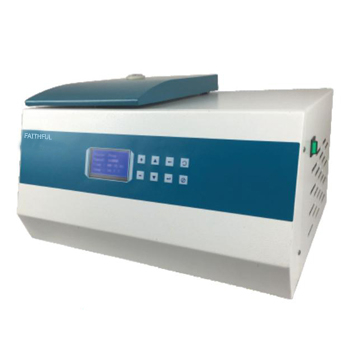

FHC-16F / 20F
FAITHFUL
Horizontal-type
DC Brushless Invertermotor
French TECUMSEH refrigeration compressor
LCD display speed,RCF and timer
Enabling automatic malfunction alarm
Touch panel control
With safety switch and electromagnetic door locks
Error code display,speed Accel/Decel rates adjustment
Horizontal-type
DC Brushless Invertermotor
French TECUMSEH refrigeration compressor
LCD display speed,RCF and timer
Enabling automatic malfunction alarm
Touch panel control
With safety switch and electromagnetic door locks
Error code display,speed Accel/Decel rates adjustment
Model | FHC-16F | FHC-20F |
MAX RPM | 16000RPM | 20000RPM |
MAX RCF | 17800xg | 26500xg |
Timer | 0-99min | 0-99min |
Angle Rotor capacity | 1.5ml/2ml*12(standard) | 1.5ml/2ml*12(standard) |
Temperature range | -10℃~+40℃ | -10℃~+40℃ |
Temperature accuracy | ±2℃ | ±2℃ |
Voltage | 220V 50Hz | 220V 50Hz |
Dimension | 560*460*370mm | 760*520*390mm |
Weight | 65kg | 100kg |
Model | FHC-16F | FHC-20F |
MAX RPM | 16000RPM | 20000RPM |
MAX RCF | 17800xg | 26500xg |
Timer | 0-99min | 0-99min |
Angle Rotor capacity | 1.5ml/2ml*12(standard) | 1.5ml/2ml*12(standard) |
Temperature range | -10℃~+40℃ | -10℃~+40℃ |
Temperature accuracy | ±2℃ | ±2℃ |
Voltage | 220V 50Hz | 220V 50Hz |
Dimension | 560*460*370mm | 760*520*390mm |
Weight | 65kg | 100kg |
