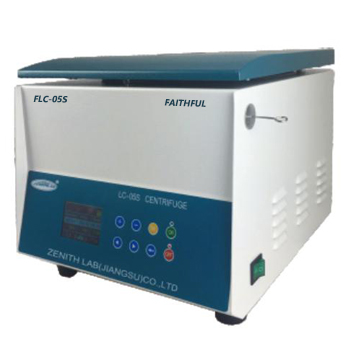

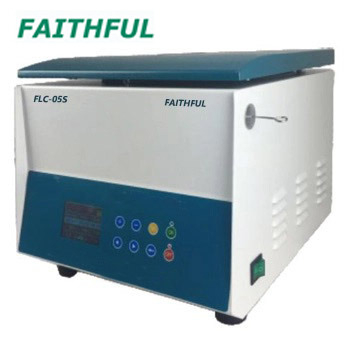

FLC-05S/05S plus
FAITHFUL
Mental case
Microcomputer control,brushless motor variable frequency
Electronic door lock control,with emergency unlock device
10 groups of ACC/DEC rate to choose and memory
10 groups of programs with function,RPM/RCF ,time,Acceleration/Deceleration rotor NO/Door station
Programs can be programmed according to user parameters
Imbalanced protection,self locking,overspeed protection,speed no signal protection,motor Holzer fault protection,high over-current protection
Fault automatic diagnosis and recognition,programmable operation storage of data.
Mental case
Microcomputer control,brushless motor variable frequency
Electronic door lock control,with emergency unlock device
10 groups of ACC/DEC rate to choose and memory
10 groups of programs with function,RPM/RCF ,time,Acceleration/Deceleration rotor NO/Door station
Programs can be programmed according to user parameters
Imbalanced protection,self locking,overspeed protection,speed no signal protection,motor Holzer fault protection,high over-current protection
Fault automatic diagnosis and recognition,programmable operation storage of data.
| Model | FLC-05Splus | FLC-05S |
| MAX RPM | 5000RPM | 5000RPM |
| MAX RCF | 3600dg | 3840xg |
| Timer | 0-99min59s | 0-99min59s |
| Rotor capacity | Angle 20ml*24(Standard) | Swing 10ml*16(Standard) |
| Voltage | 110V 60Hz/220V 50Hz | 110V 60Hz/220V 50Hz |
| Dimension(mm) | 340*410*330mm | 340*410*360mm |
| Weight | 19kg | 24kg |
| Model | FLC-05Splus | FLC-05S |
| MAX RPM | 5000RPM | 5000RPM |
| MAX RCF | 3600dg | 3840xg |
| Timer | 0-99min59s | 0-99min59s |
| Rotor capacity | Angle 20ml*24(Standard) | Swing 10ml*16(Standard) |
| Voltage | 110V 60Hz/220V 50Hz | 110V 60Hz/220V 50Hz |
| Dimension(mm) | 340*410*330mm | 340*410*360mm |
| Weight | 19kg | 24kg |
