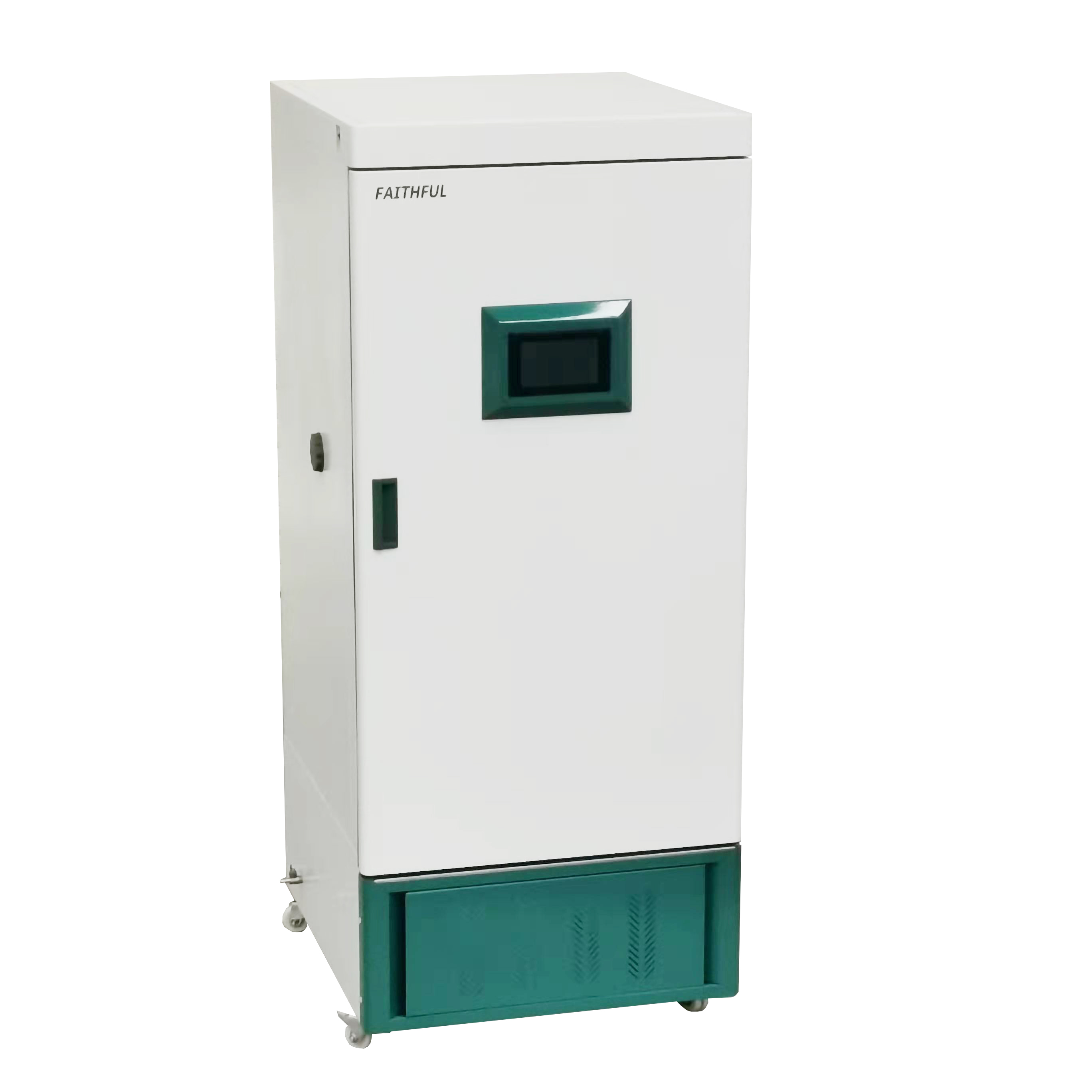

Climate Chamber with Humidity Control/Plant Growth Chamber

Light culture of microorganism, cell tissue, seedling, insect and small animal under the control of precise humidity
Availability:
Quantity:
  • FPG250, FPG350, FPG450

  • FAITHFUL

●Double door structure, with high quality stalinite to observe sample.

●7.0 inch true color touch screen display, convenient to view historical temperature data and appointment auto start and stop.

● Full spectrum Multi-stage adjustable, 30 sections programmed Temp. LUX ,RH controller.

●Full spectrum LED top light source design, high ilumination, low thermal radiation, long service life, removable Light partition, adjustable layer space.

●Internal humidification system. Small humidifier particles, high humidity uniformity, small water consumption, with automatic water intake, water shortage alarm function.

●The evaporator temperature is collectively controlled by the backflow valve and expansion valve, greatly prolonging the service life of the compressor.

●Imported high quality temperature sensor and compressor.


Model FPG250FPG350FPG450
Cycle ModeForced convection, Rear micropore. Supply air in front of the plate
FunctionTemp. RangeWithout illumination:0~65℃; With illumination:10~65℃
Temp. Resolution Ratio0.1℃
Temp.Motion±0.5℃
Temp. Uniformity±1.0℃
illumination(LX)Full spectrum 0-30000LX many degrees for adjusting
Humidity Range40%~95%RH
Humidity Motion±5% RH
StructureInner ChamberSUS304satinless steel sheet
Outer ShellCold rolling steel electrostatic spraying exterior
Thermal Insulation MaterialPolyurethane
Light barrierStandard four layer full spectrum LED lamp board
HeaterStainless steel heating tube
Power Rating2.0kw 2.2kw2.5kw
CompressorAir cooled hermetic compressor
CoolantR134A
Defrosting StructureAutomatic
Humidity control modeAutomatic
Leading wire holeThe outer diameter of standard inflation port interface is 10mm
ControllerTemp. control mode30 sections program
Temp. setting modeTouch screen settings
Temp. display mode7.0 inch true color touch screen display
Operation functionFixed tempperature operation,timing function,auto stop. Appointment start, program operaiton
Program patternStandard configuration
SensorPT100 Temp. Sensor, Imported chip humidity sensor
Additional funcitonReservation switch,historical tempperature and humidity data curve query, U disk data storage and export,Deviation correction,menu locked,power failure back-up,power failure memory,intelligent defrosting
  Safety deviceOver tempperature will automatically cut off the heating, long-term under tempperature cut off the refrigeration systemp, protect the sample; loop self diagnosis
SpecificationInner Chamber size(W*L*H)(mm)600*500*840630*580*960630*670*1100
Exterior size (W*L*H)(mm)794*726*1600824*806*1720824*896*1860
Packing size (W*L*H)(mm)893*863*1850943*923*1960823*1033*2110
Volume250L 350L450L
Load per rack15kg
Shelf space120mm
Supply(50/60Hz)Current ratingAC220V/9.1A AC220V/10AAC220V/11.5A
NW/GW (kg)225/255260/300310/350
 AccessoryShelf4
Shelf plate8
 Optional accessoriesLight barrier, USB interface and upper computer software, printer, wireless SMS alarm, CO2 concentration control

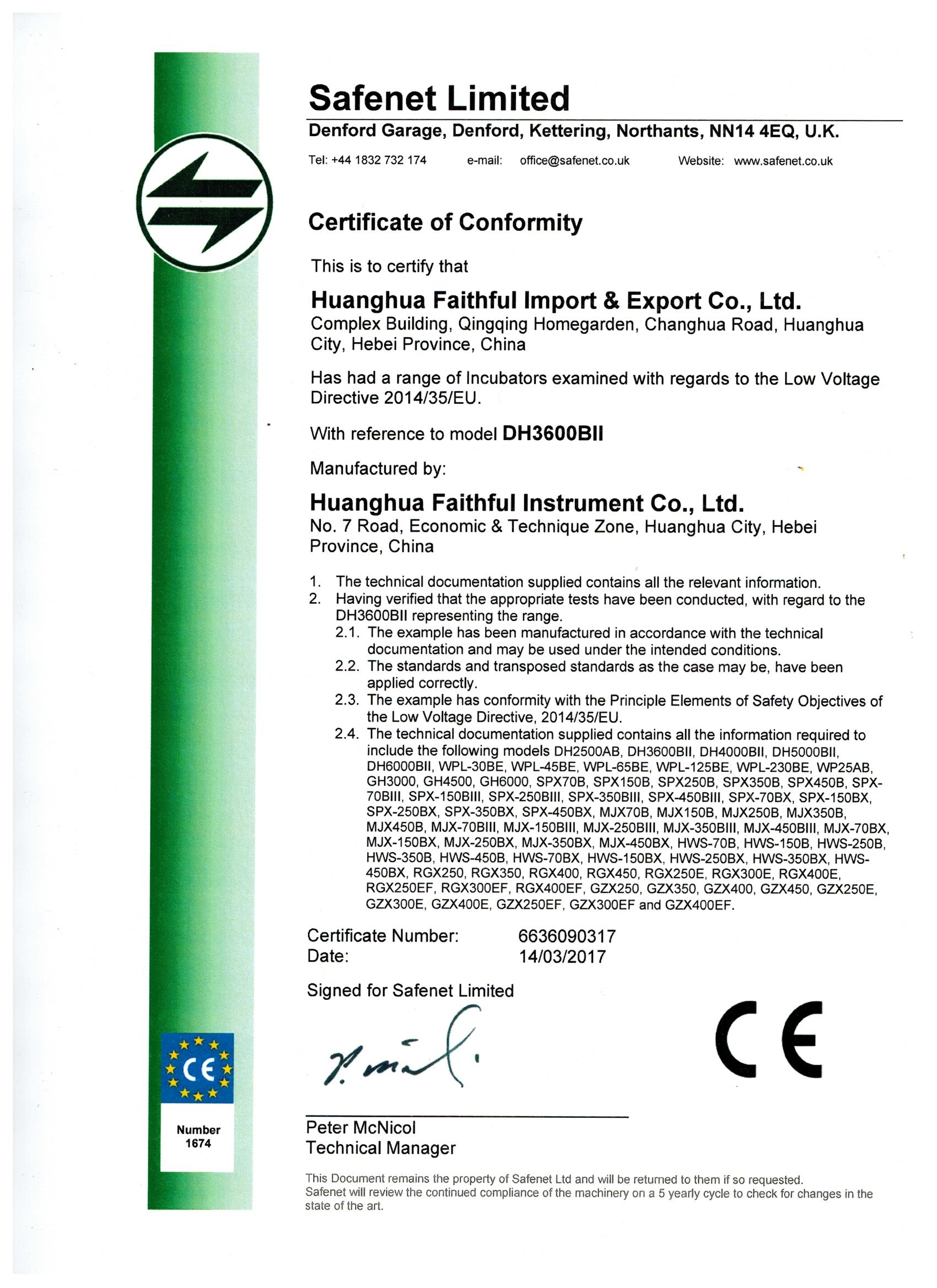

CE for Incubator LVD.jpg
