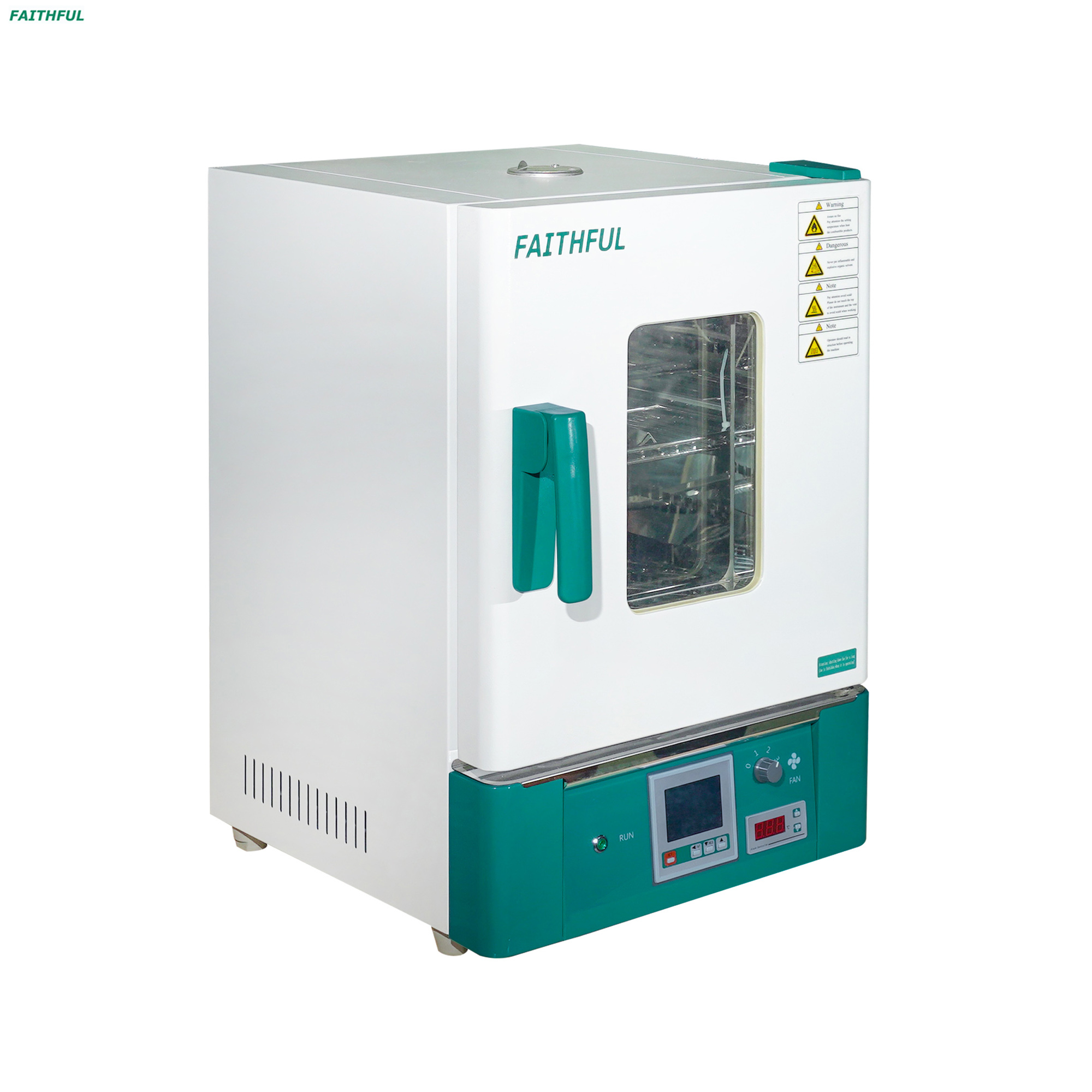

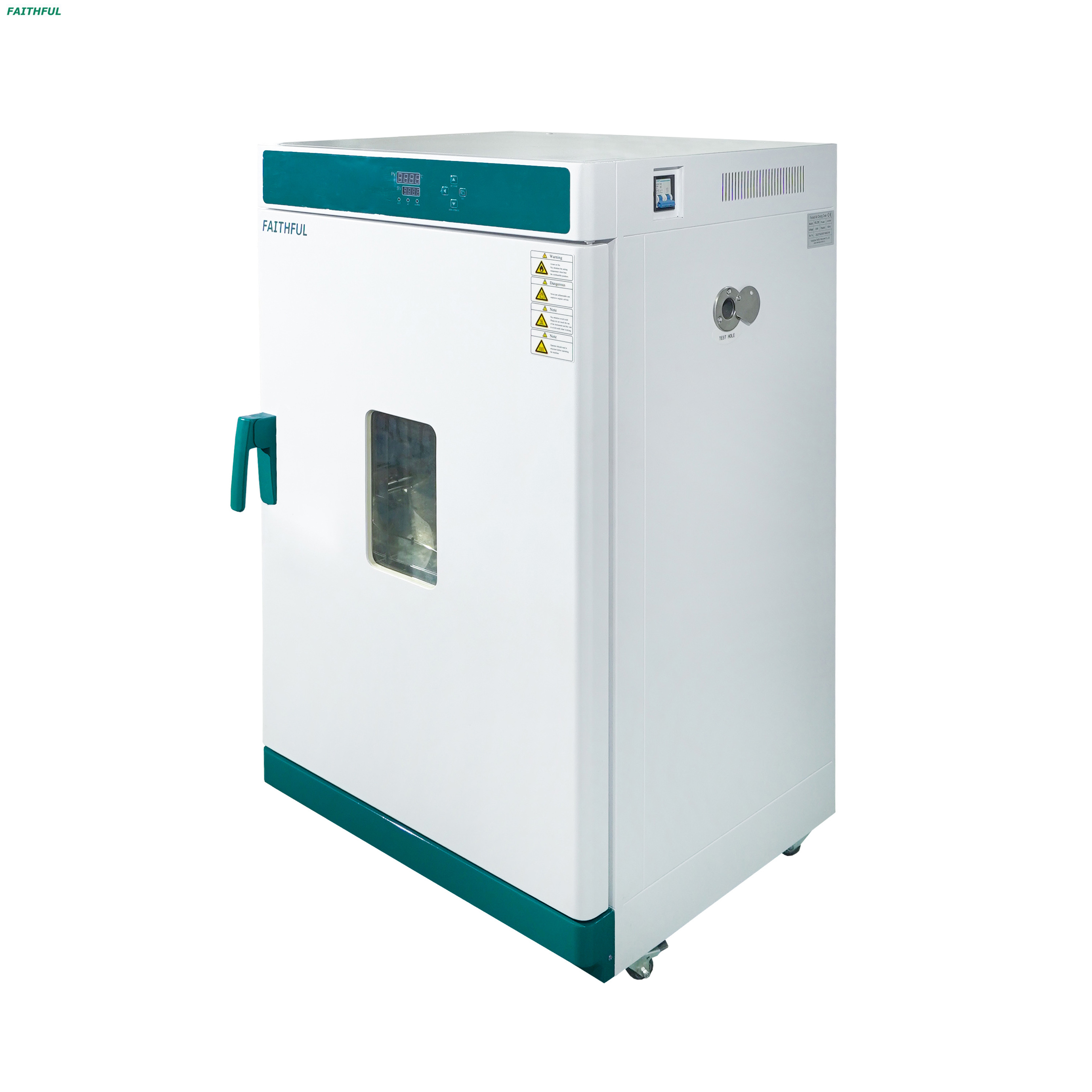

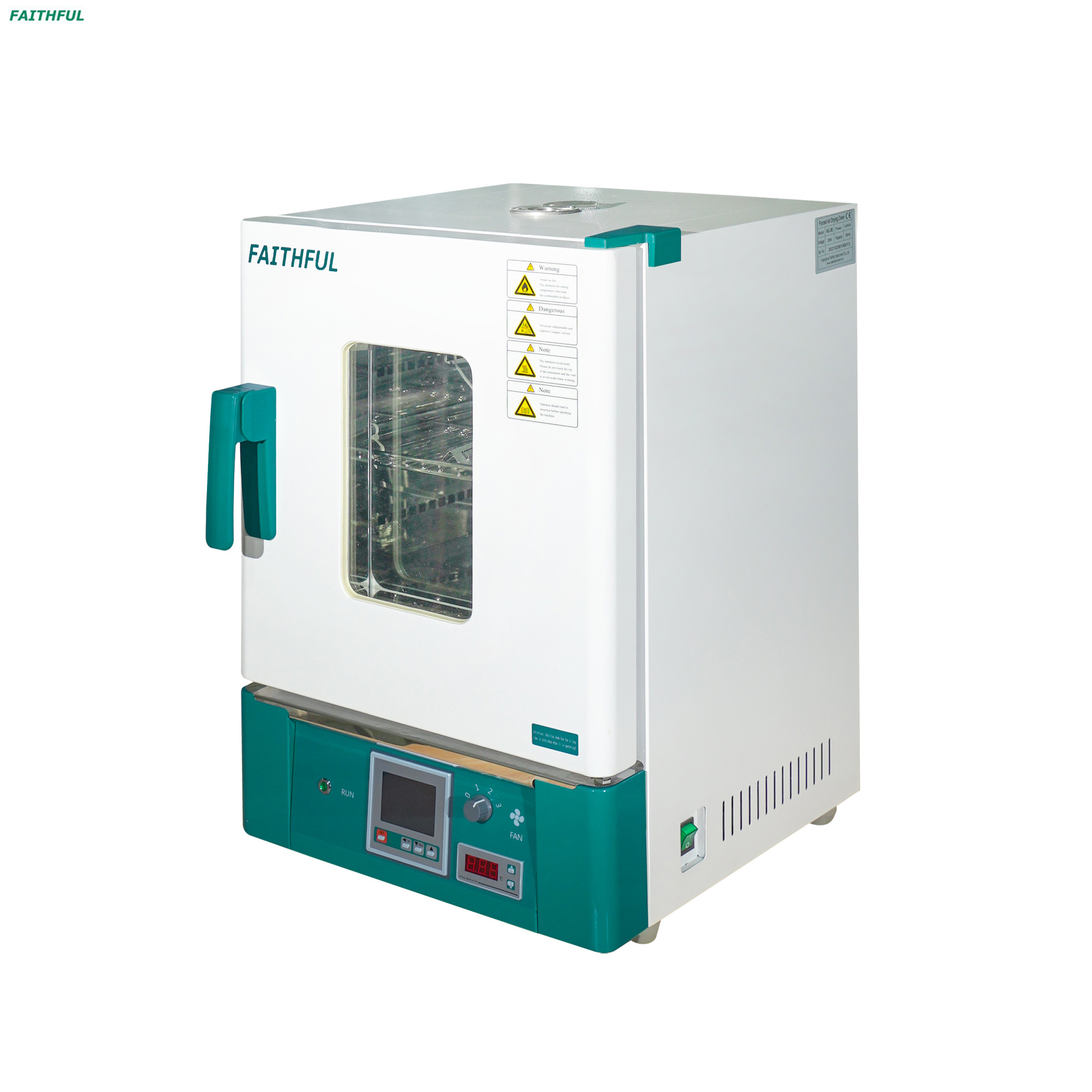

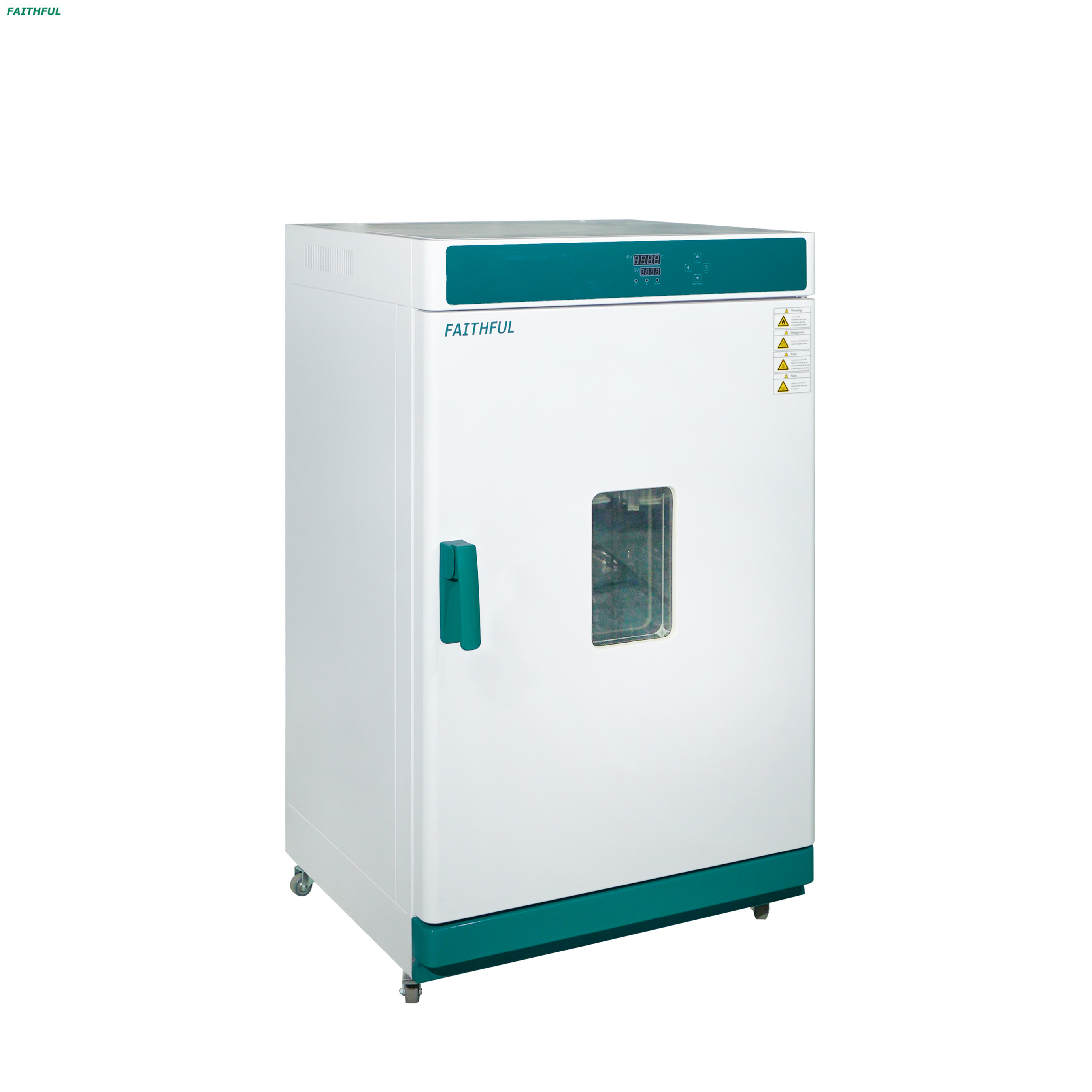

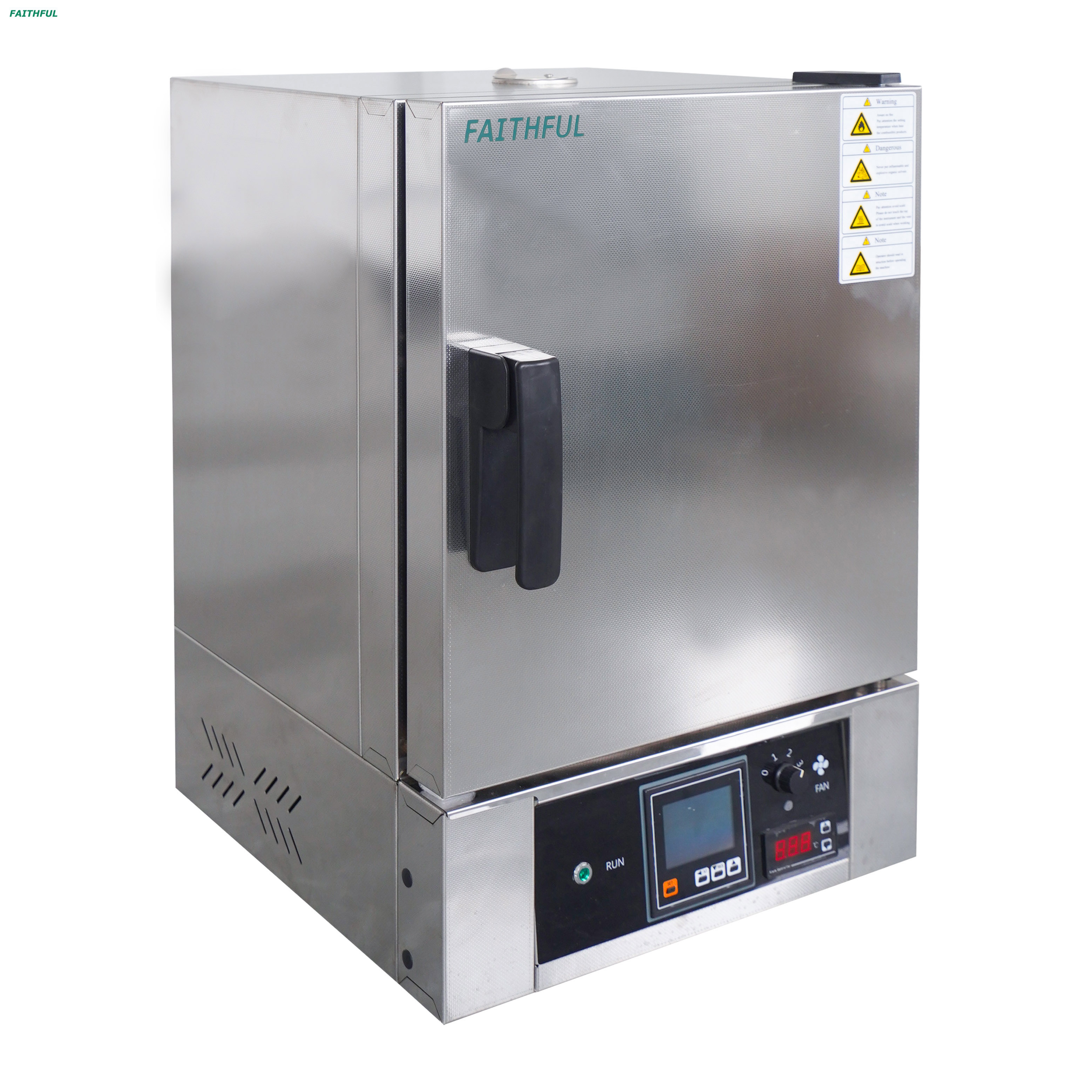

WPL-30BE,WPL-45BE, WPL-65BE, WPL-85BE, WPL-125BE, WPL-230BE,WPL-30BE(304), WPL-45BE(304), WPL-65BE(304), WPL-85BE(304), WPL-125BE(304)
FAITHFUL
Product Description
1. Unique vertical double duct supply horizontal air circularly.
2. 4 grades 3 speed adjustable speed fan, LED running indicator light.
3. Over-temperature protection system: LED red light on meanwhile cut off heating circuit to improve product safety when workroom temperature exceed the alarm value.
4. High precision digital independent temperature limiter.
5. 304:SUS304 Stainless Steel Body.
Product Description
1. Unique vertical double duct supply horizontal air circularly.
2. 4 grades 3 speed adjustable speed fan, LED running indicator light.
3. Over-temperature protection system: LED red light on meanwhile cut off heating circuit to improve product safety when workroom temperature exceed the alarm value.
4. High precision digital independent temperature limiter.
5. 304:SUS304 Stainless Steel Body.

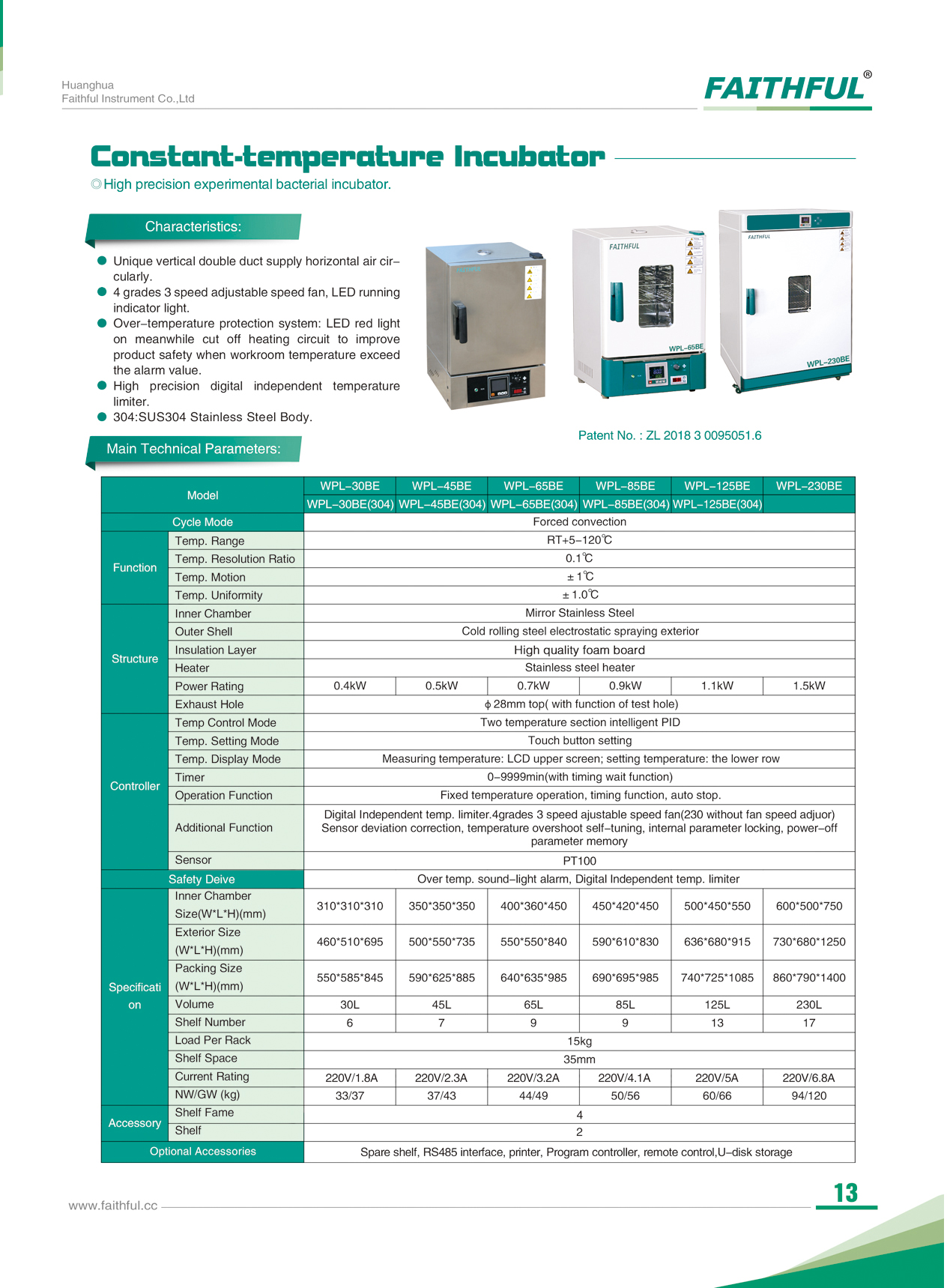

Model | WPL- 30BE | WPL- 45BE | WPL- 65BE | WPL- 85BE | WPL- 125BE | WPL- 230BE | |
WPL- 30BE(304) | WPL- 45BE(304) | WPL- 65BE(304) | WPL- 85BE(304) | WPL- 125BE(304) | |||
Cycle Mode | Forced convection | ||||||
Function | Temp. range | RT+5-120℃ | |||||
Temp. Resolution Ratio | 0.1℃ | ||||||
Temp. Motion | ±1℃ | ||||||
Temp. Uniformity | ±1.0℃ | ||||||
Structure | Inner Chamber | Mirror Stainless Steel | |||||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
Insulation layer | High quaility foam board | ||||||
Heater | Stainless steel electric heating tube | ||||||
Power rating | 0.4kW | 0.5kW | 0.7kW | 0.9kW | 1.1kW | 1.5kW | |
Exhaust hole | φ35mm top( with function of test hole) | ||||||
Controller | Temp control mode | Two temperature section intelligent PID | |||||
Temp. setting mode | Touch button setting | ||||||
Temp. display mode | Measuring temperature: LCD upper screen; setting temperature: the lower row | ||||||
Timer | 0-9999min(with timing wait function) | ||||||
Operation function | Fixed temperature operation, timing function, auto stop. | ||||||
Additional function | Digital Independent temp.limiter.4 grades 3 speed ajustable speed fan (230 without fan speed adjuor) Sensor deviation correction,temperature overshoot self-tuning,internal parameter locking,power-off parameter memory | ||||||
Sensor | pt100 | ||||||
Safety device | Over temp. sound-light alarm, digital independent temp, limiter | ||||||
Specification | Inner Chamber size(W*L*H)(mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 | 600*500 *750 |
Exterior size (W*L*H)(mm) | 460*510 *695 | 500*550 *735 | 550*550 *840 | 590*610 *830 | 636*680 *915 | 735*835 *1115 | |
Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885 *1287 | |
Volume | 30L | 45L | 65L | 85L | 125L | 230L | |
Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | |
Load per rack | 15kg | ||||||
Shelf space | 40mm | ||||||
Current rating | 220V/ 1.8A | 220V/ 2.3A | 220V/ 3.2A | 220V/ 4.1A | 220V/ 5A | 220V/ 6.8A | |
NW/GW (kg) | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | |
Shelf fame | 4 | ||||||
Shelf | 2 | ||||||
optional accessories | Shelf, U-disk storage, Printer, 3.5 inch color touch screen temperature controller |
Model | WPL- 30BE | WPL- 45BE | WPL- 65BE | WPL- 85BE | WPL- 125BE | WPL- 230BE | |
WPL- 30BE(304) | WPL- 45BE(304) | WPL- 65BE(304) | WPL- 85BE(304) | WPL- 125BE(304) | |||
Cycle Mode | Forced convection | ||||||
Function | Temp. range | RT+5-120℃ | |||||
Temp. Resolution Ratio | 0.1℃ | ||||||
Temp. Motion | ±1℃ | ||||||
Temp. Uniformity | ±1.0℃ | ||||||
Structure | Inner Chamber | Mirror Stainless Steel | |||||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
Insulation layer | High quaility foam board | ||||||
Heater | Stainless steel electric heating tube | ||||||
Power rating | 0.4kW | 0.5kW | 0.7kW | 0.9kW | 1.1kW | 1.5kW | |
Exhaust hole | φ35mm top( with function of test hole) | ||||||
Controller | Temp control mode | Two temperature section intelligent PID | |||||
Temp. setting mode | Touch button setting | ||||||
Temp. display mode | Measuring temperature: LCD upper screen; setting temperature: the lower row | ||||||
Timer | 0-9999min(with timing wait function) | ||||||
Operation function | Fixed temperature operation, timing function, auto stop. | ||||||
Additional function | Digital Independent temp.limiter.4 grades 3 speed ajustable speed fan (230 without fan speed adjuor) Sensor deviation correction,temperature overshoot self-tuning,internal parameter locking,power-off parameter memory | ||||||
Sensor | pt100 | ||||||
Safety device | Over temp. sound-light alarm, digital independent temp, limiter | ||||||
Specification | Inner Chamber size(W*L*H)(mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 | 600*500 *750 |
Exterior size (W*L*H)(mm) | 460*510 *695 | 500*550 *735 | 550*550 *840 | 590*610 *830 | 636*680 *915 | 735*835 *1115 | |
Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885 *1287 | |
Volume | 30L | 45L | 65L | 85L | 125L | 230L | |
Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | |
Load per rack | 15kg | ||||||
Shelf space | 40mm | ||||||
Current rating | 220V/ 1.8A | 220V/ 2.3A | 220V/ 3.2A | 220V/ 4.1A | 220V/ 5A | 220V/ 6.8A | |
NW/GW (kg) | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | |
Shelf fame | 4 | ||||||
Shelf | 2 | ||||||
optional accessories | Shelf, U-disk storage, Printer, 3.5 inch color touch screen temperature controller |
