Desktop Constant-temperature Drying Oven
Home » Product » Lab Equipment » Drying Oven » Desktop Constant-temperature Drying Oven » Desktop Constant-temperature Drying Oven

Product Classification

Contact Us

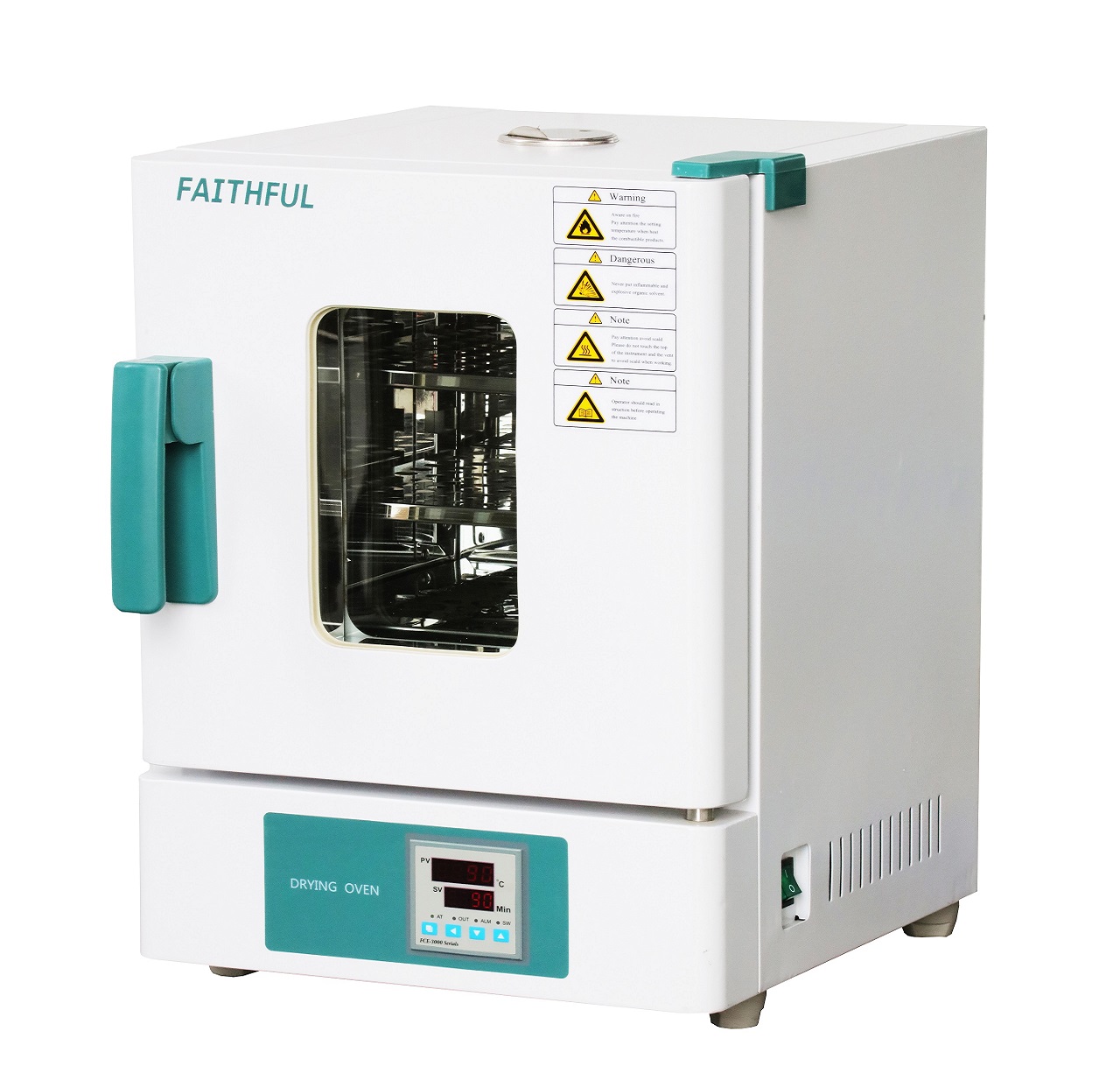

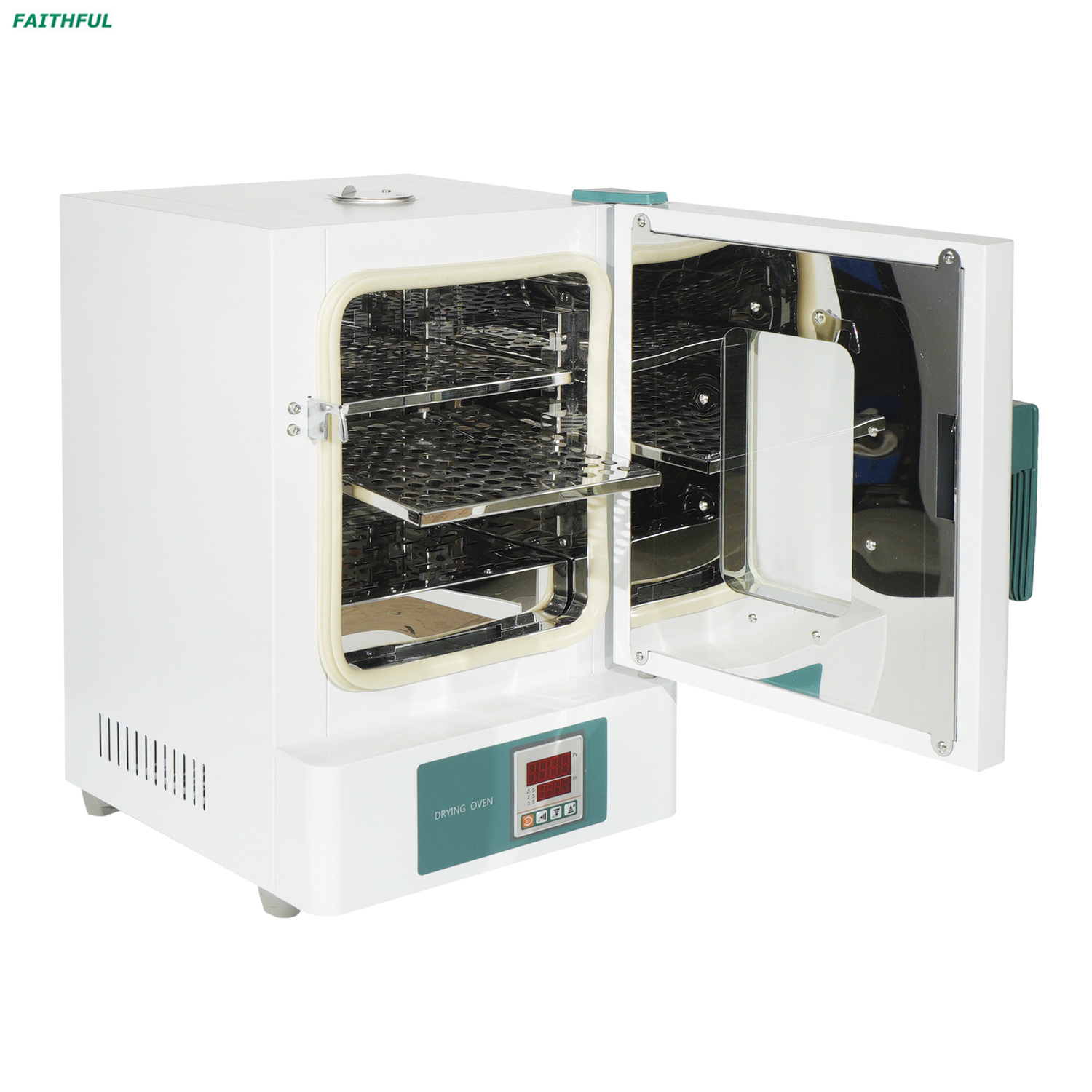

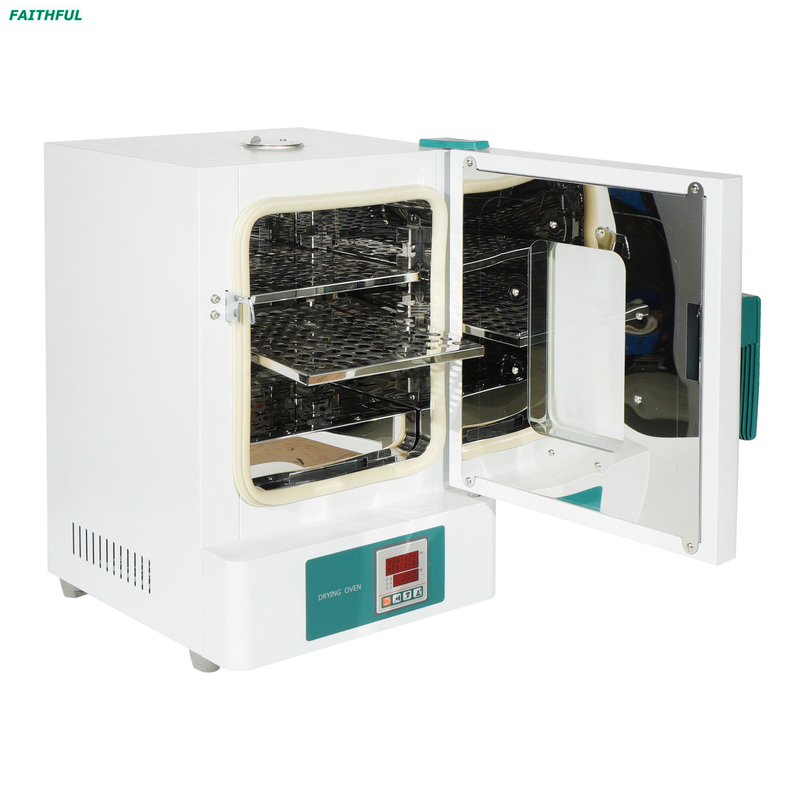

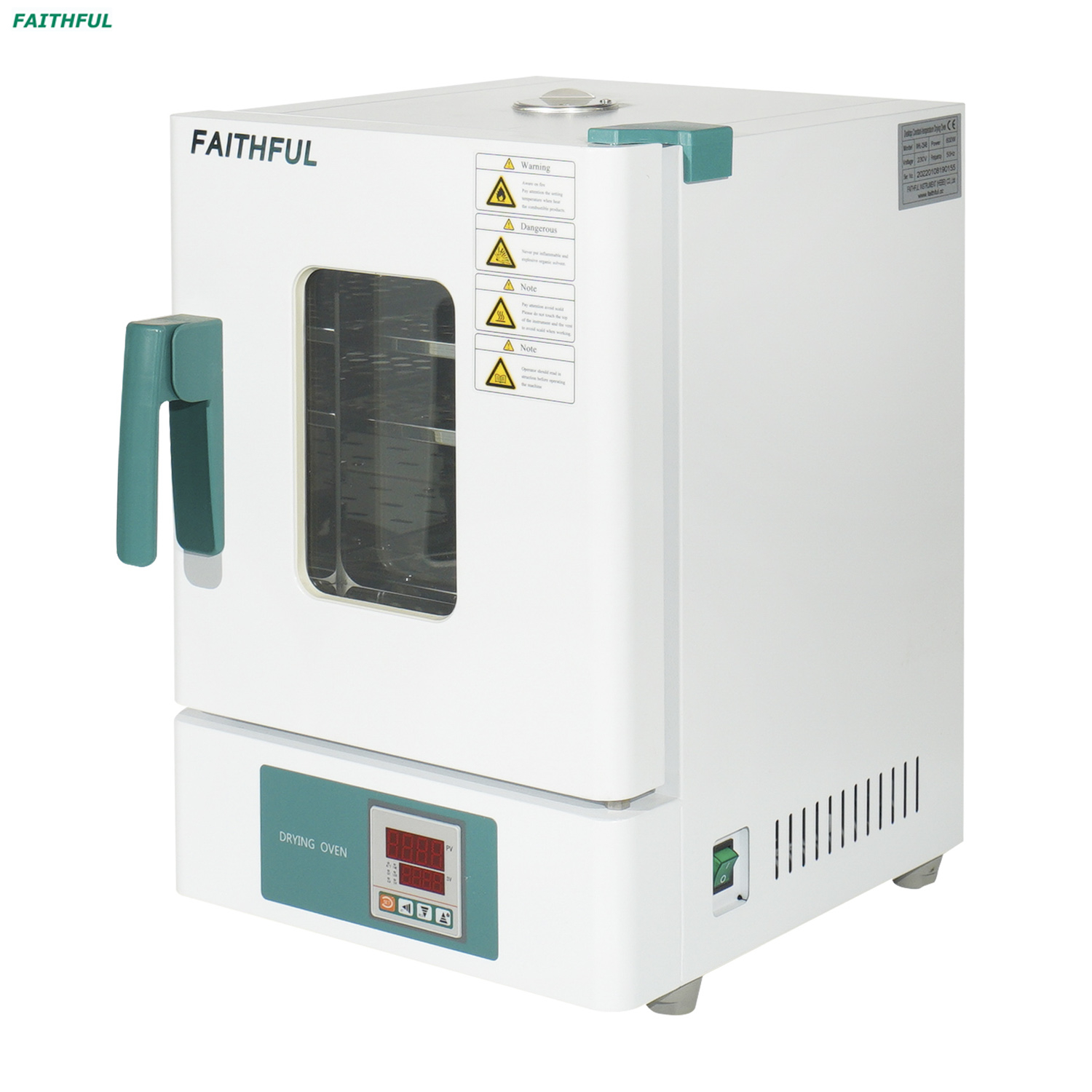

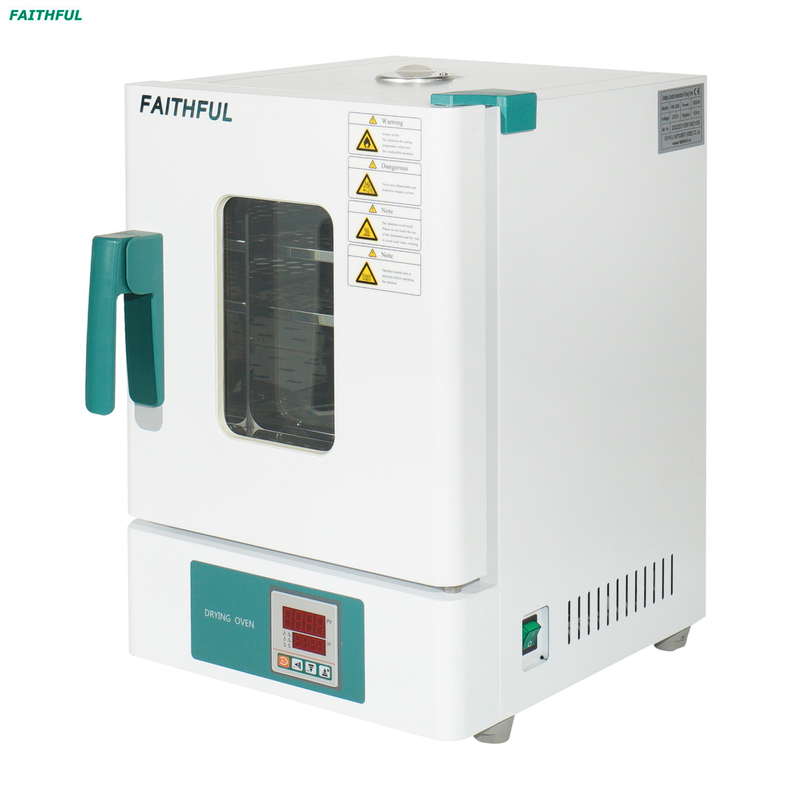

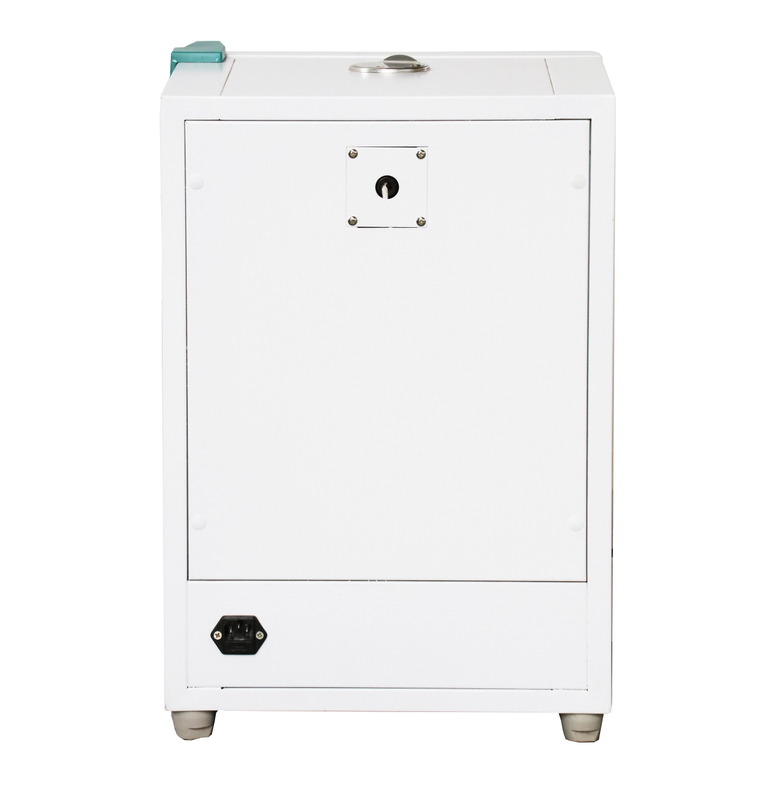

Desktop Constant-temperature Drying Oven

Light natural convection drying oven / incubator

Quantity:

Product Description:

1. In the work room, the hot air is convective naturally and cyclically.

2. Digital display microcomputer intelligent PID temperature controller.

3. New anti-hot handle.



modelWHL-25A/WHL-25AB
Cycle ModeNatural convection
FunctionTemp. RangeRT+10-300

Temp. Resolution

Ratio

0.1
Temp. Motion±1
Temp. Uniformity±3.5%
StructureInner Chamber

B model: mirror stainless steel; without;

B model: High strength

galvanized sheet
Outer Shell

cold rolling steel electrostatic spraying

 exterior

Insulation layerHigh quaility rock wool board (with CE)
HeaterNickel chromium alloy heating wire
Power rating0.6kW
Exhaust holeφ28mm top (with function of test hole)
ControllerTemp. control modeTwo temperature section intelligent PID
Temp. set modeTouch button setting
Temp. display mode

Measuring temperature: display on the four digital

 tubes upper row

setting temperature: display on the lower row
Timer0-9999min(with timing wait function)
Operation function


fixed temperature operation, timing function,

auto stop

Additional function

Sensor deviation correction, temperature overshoot

 self-tuning, internal

parameter locking, power-off parameter memory
SensorPT100
Safety deviceover temperature sound-light alarm
Specification

Inner Chamber siz

e(W*L*H)(mm)

260*260*260

Exterior size

(W*L*H)(mm)

380*455*568

Packing size

(W*L*H)(mm)

500*530*657
Volume18L
Shelf number6
Load per rack15kg
Shelf space29mm
(50/60HZ)Current ratingAC220V/2.7A
NW/GW (kg27/35
AccessoryShelf2
Optional accessoriesShelf,Programmable controller

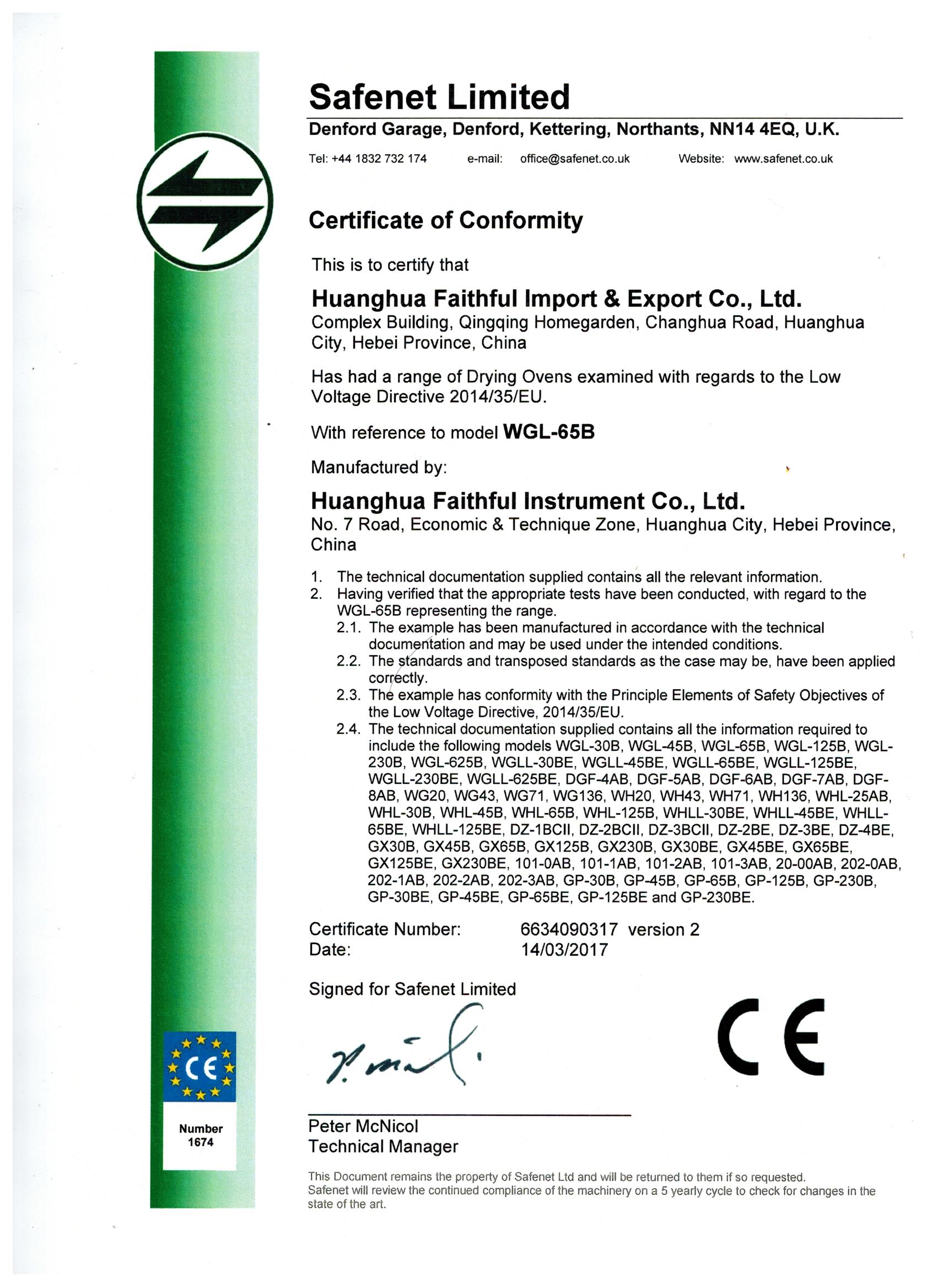

CE for Drying Oven LVD
