98-II-C

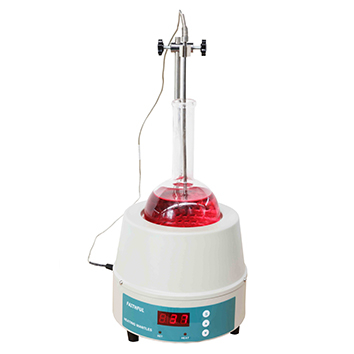

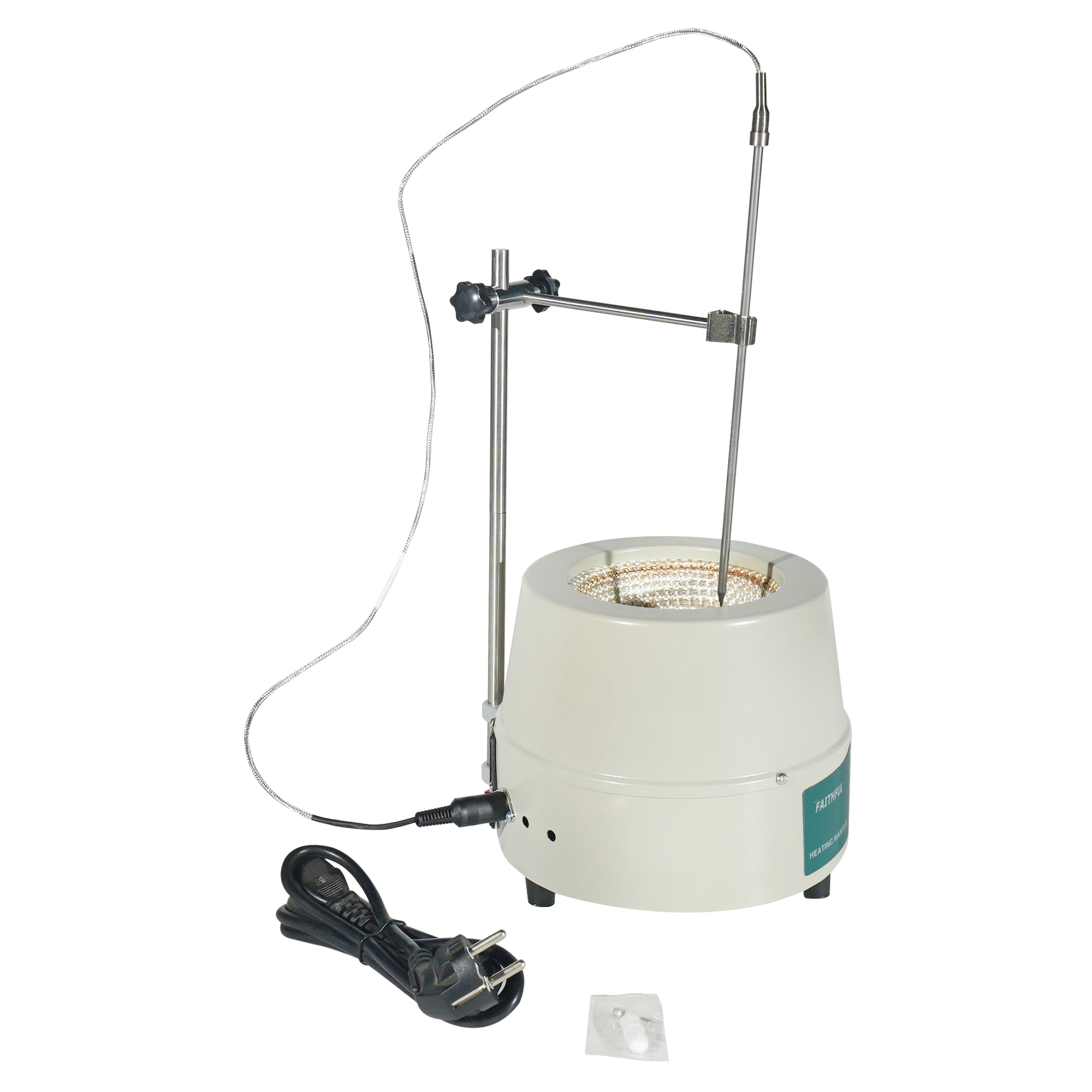

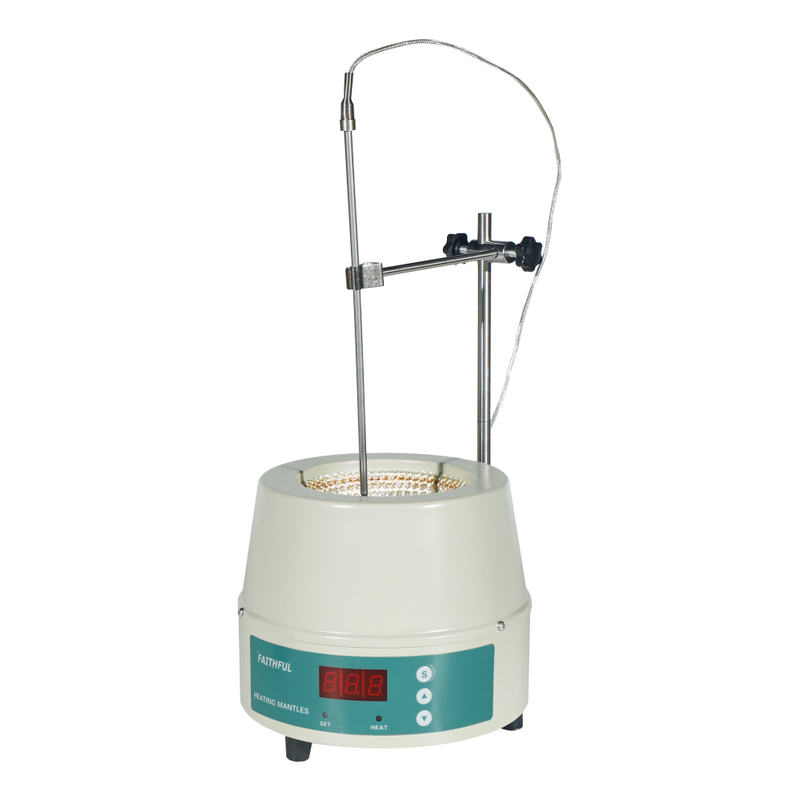

Product Description:
1. PID Single Screen Temperature controller. Fast heating, temperature uniformity and high precise temperature control.
2. Several Rows type, produce as Customer inquiry, beautiful shape, easy to operate and effective.
3. PT100 Temperature sensor, with Adjustable Sensor Rack and Stainless Rods.
Product Description:
1. PID Single Screen Temperature controller. Fast heating, temperature uniformity and high precise temperature control.
2. Several Rows type, produce as Customer inquiry, beautiful shape, easy to operate and effective.
3. PT100 Temperature sensor, with Adjustable Sensor Rack and Stainless Rods.
Model | 98-II-C | |||||||||||
Function | Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | |
Heating Mode | Surface heat-conduction | |||||||||||
Surface Max. Temp.( ℃) | 450℃ | |||||||||||
Temperature control range | RT+20~250℃ | |||||||||||
Structure | Heating element | Nichrome wire | ||||||||||
Shell(Insulation Layer) | High quality aluminum silicate cotton | |||||||||||
Heating power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 | ||
Controller | Working Mode | Continuous | ||||||||||
Specification | Exterior size (mm) | ¢220×165 | ¢280×220 | ¢330×230 | ¢340×245 | ¢350×250 | ¢425×320 | ¢470×340 | ||||
Packing size (mm) | 230×230×195 | 290×290×300 | 340×340×350 | 360×360×300 | 390×390×310 | 430×430×350 | 510×510×380 | |||||
Voltage(V) | 100~120V or 200~240V | 200~240V | ||||||||||
N.W. (Kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | |||||
G.W. (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 |
Model | 98-II-C | |||||||||||
Function | Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | |
Heating Mode | Surface heat-conduction | |||||||||||
Surface Max. Temp.( ℃) | 450℃ | |||||||||||
Temperature control range | RT+20~250℃ | |||||||||||
Structure | Heating element | Nichrome wire | ||||||||||
Shell(Insulation Layer) | High quality aluminum silicate cotton | |||||||||||
Heating power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 | ||
Controller | Working Mode | Continuous | ||||||||||
Specification | Exterior size (mm) | ¢220×165 | ¢280×220 | ¢330×230 | ¢340×245 | ¢350×250 | ¢425×320 | ¢470×340 | ||||
Packing size (mm) | 230×230×195 | 290×290×300 | 340×340×350 | 360×360×300 | 390×390×310 | 430×430×350 | 510×510×380 | |||||
Voltage(V) | 100~120V or 200~240V | 200~240V | ||||||||||
N.W. (Kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | |||||
G.W. (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 |
