F-5MB,F-10MB,F-15MB,F-20MB,F-28MB,F-10MA,F-15MA,F-20MA,F-30MA
FAITHFUL

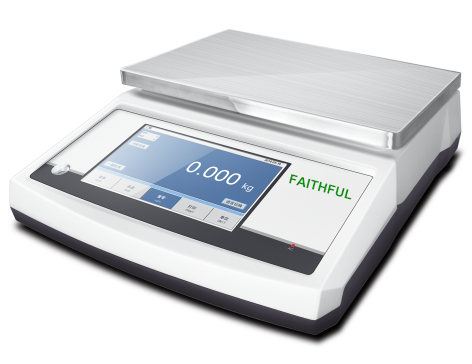

F-MA/MAB series weighing scale use high precision weighing sensor to keep weighing stable. We support different interface and accessories to extend functions .And the under weighing function is suit for density.
F-MA/MAB series weighing scale use high precision weighing sensor to keep weighing stable. We support different interface and accessories to extend functions .And the under weighing function is suit for density.
Model | F-10MA | F-15MA | F-20MA | F-30MA | F-5MB | F-10MB | F-15MB | F-20MB | F-28MB |
Capacity(g) | 11kg | 16kg | 21kg | 31kg | 5.5kg | 11kg | 16kg | 21kg | 28kg |
Sensor | Load Cell | ||||||||
Resolution(g) | 1 | 0.1 | |||||||
Min weighing(g) | 4 | 0.4 | |||||||
Stable time | ≤2S | ||||||||
Display | LCD(white back light with black font) | ||||||||
Pan size | 315*230mm | 315*230mm | |||||||
Operation temp | 5-25℃ | ||||||||
Repeat ability | ±2g | ±0.2g | |||||||
Liner | ±3g | ±0.3g | |||||||
Draft shield size | 240*190*265mm | ||||||||
Option | RS232C & RS485、Printer | ||||||||
Packing size | Inside:410*165*400mm Outside:800*420*420mm | ||||||||
G. weight | 4/16kg |
Model | F-10MA | F-15MA | F-20MA | F-30MA | F-5MB | F-10MB | F-15MB | F-20MB | F-28MB |
Capacity(g) | 11kg | 16kg | 21kg | 31kg | 5.5kg | 11kg | 16kg | 21kg | 28kg |
Sensor | Load Cell | ||||||||
Resolution(g) | 1 | 0.1 | |||||||
Min weighing(g) | 4 | 0.4 | |||||||
Stable time | ≤2S | ||||||||
Display | LCD(white back light with black font) | ||||||||
Pan size | 315*230mm | 315*230mm | |||||||
Operation temp | 5-25℃ | ||||||||
Repeat ability | ±2g | ±0.2g | |||||||
Liner | ±3g | ±0.3g | |||||||
Draft shield size | 240*190*265mm | ||||||||
Option | RS232C & RS485、Printer | ||||||||
Packing size | Inside:410*165*400mm Outside:800*420*420mm | ||||||||
G. weight | 4/16kg |
