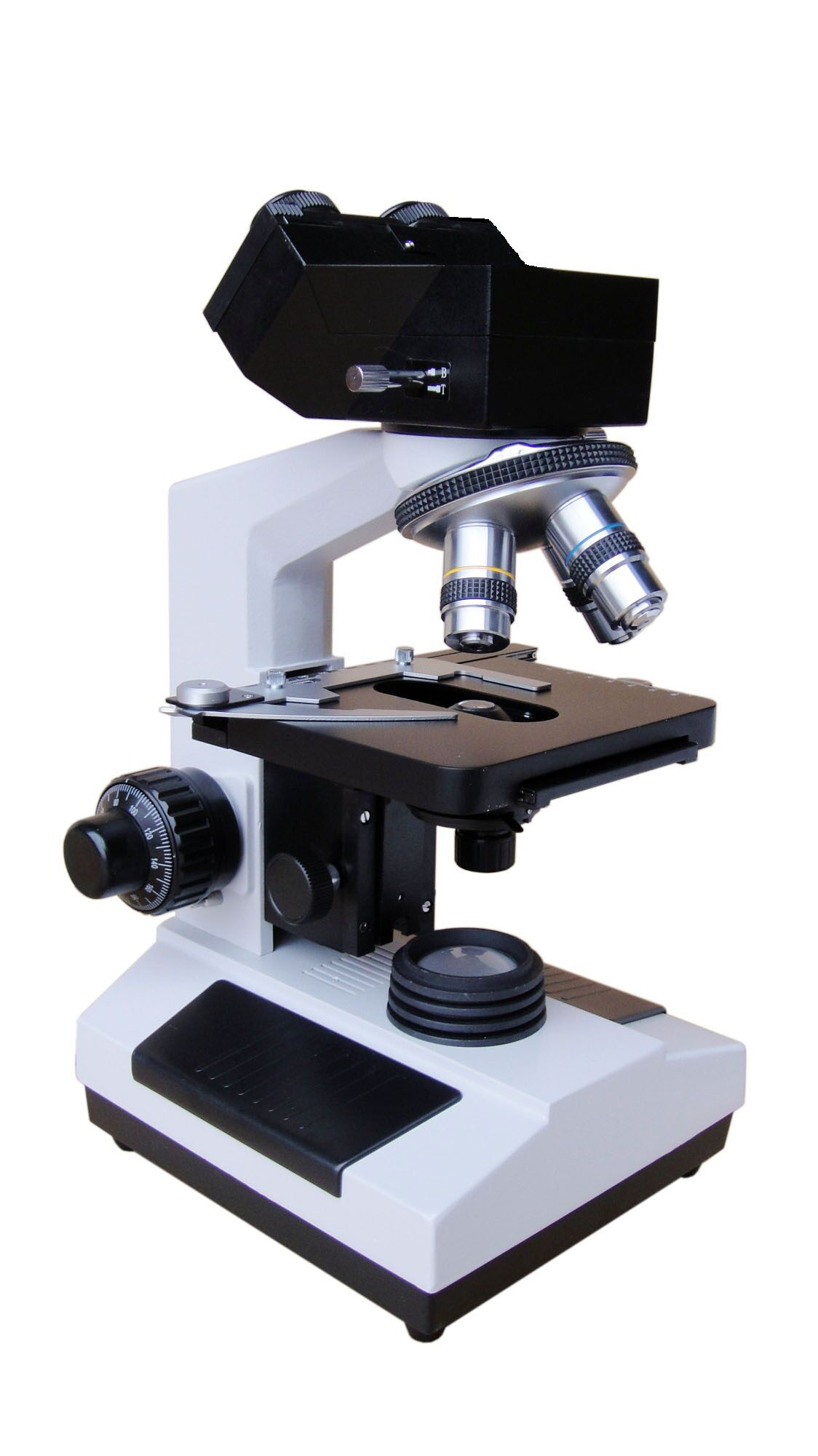

FSF-102-1600X (Binocular) , FSF-102B-1600X (Triocular)
FAITHFUL
It is mainly used to amplify tiny objects and become visible instruments to human eyes.
It is mainly used to amplify tiny objects and become visible instruments to human eyes.
| Model | FSF-102-1600X (Binocular) ; FSF-102B-1600X (Triocular) |
| Total Magnification | 40X-1600X |
| Eyepieces | WF10X，WF16X |
| Objectives | Achromatic 4X,10X,40X(S)，100X（S Oil） |
| Lens Tube | flow/30°articulated trinocular Inclined a cylindrical tube,Rotate 360° papillary distance :55-75mm,containing:CCD port |
| Condenser | Abbe TypeNA=1.25,With Adjustable Diaphragm And Filter Holder |
| illumination | bromine tungsten lamp6V/20W，Brightness can adjust |
| Focus formation | Coarse Adjustment Range：22mm，Fine Adjustment Range1.3mm |
| Working Stage | Planform size：140mmX140mm，move range：75*45mm |
| Options | LED light |
| Model | FSF-102-1600X (Binocular) ; FSF-102B-1600X (Triocular) |
| Total Magnification | 40X-1600X |
| Eyepieces | WF10X，WF16X |
| Objectives | Achromatic 4X,10X,40X(S)，100X（S Oil） |
| Lens Tube | flow/30°articulated trinocular Inclined a cylindrical tube,Rotate 360° papillary distance :55-75mm,containing:CCD port |
| Condenser | Abbe TypeNA=1.25,With Adjustable Diaphragm And Filter Holder |
| illumination | bromine tungsten lamp6V/20W，Brightness can adjust |
| Focus formation | Coarse Adjustment Range：22mm，Fine Adjustment Range1.3mm |
| Working Stage | Planform size：140mmX140mm，move range：75*45mm |
| Options | LED light |
