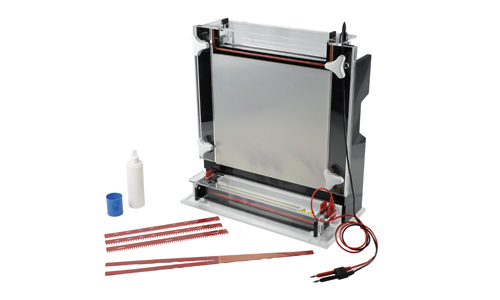

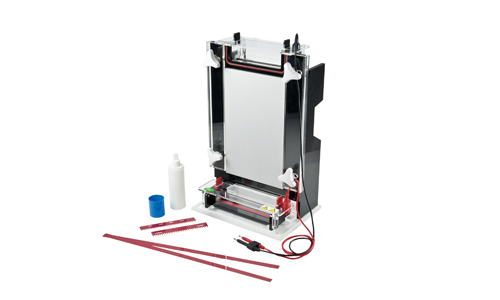

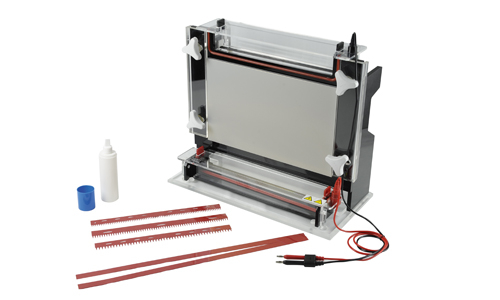

FSF-CX1B,FSF-CX2B,FSF-CX3B
FAITHFUL
Simple operation,only four fastening knobs needed.50% buffer savings compared with traditional tanks.
Unfolded electrodes make repair and parts replacement easy and quick.
Specid heat dissipation processed aluminum plate firmly clings to the gel plates,which effectively guarantees the gel temperature is even,ensuring the electrophoresis trip is straighter .
Simple operation,only four fastening knobs needed.50% buffer savings compared with traditional tanks.
Unfolded electrodes make repair and parts replacement easy and quick.
Specid heat dissipation processed aluminum plate firmly clings to the gel plates,which effectively guarantees the gel temperature is even,ensuring the electrophoresis trip is straighter .
Glass plate size(W×L) | Gel Size(W×L) | Gel thickness | Gel amount | Sample volume | Buffer Volume | Dimension(L×W×H) | Net weight | |
FSF-CX1B | 200×450 mm | 180×420 mm | 0.4mm | 1(pieces) | (0.4mm)50、62、 74、100wells | ~500 ( ml ) | 310×230×500(mm) | 11(kg) |
FSF-CX2B | 350×450 mm | 330×420 mm | 0.4(mm) | 1(pieces) | (0.4mm)50、62、 74、100wells | ~750(ml) | 455×230×500(mm) | 16.5(kg) |
FSF-CX3B | 350×350 mm | 330×320 mm | 0.4(mm) | 1(pieces) | (0.4mm)50、62、 74、100wells | ~750(ml) | 460×230×400(mm) | 13.2(kg) |
Glass plate size(W×L) | Gel Size(W×L) | Gel thickness | Gel amount | Sample volume | Buffer Volume | Dimension(L×W×H) | Net weight | |
FSF-CX1B | 200×450 mm | 180×420 mm | 0.4mm | 1(pieces) | (0.4mm)50、62、 74、100wells | ~500 ( ml ) | 310×230×500(mm) | 11(kg) |
FSF-CX2B | 350×450 mm | 330×420 mm | 0.4(mm) | 1(pieces) | (0.4mm)50、62、 74、100wells | ~750(ml) | 455×230×500(mm) | 16.5(kg) |
FSF-CX3B | 350×350 mm | 330×320 mm | 0.4(mm) | 1(pieces) | (0.4mm)50、62、 74、100wells | ~750(ml) | 460×230×400(mm) | 13.2(kg) |
