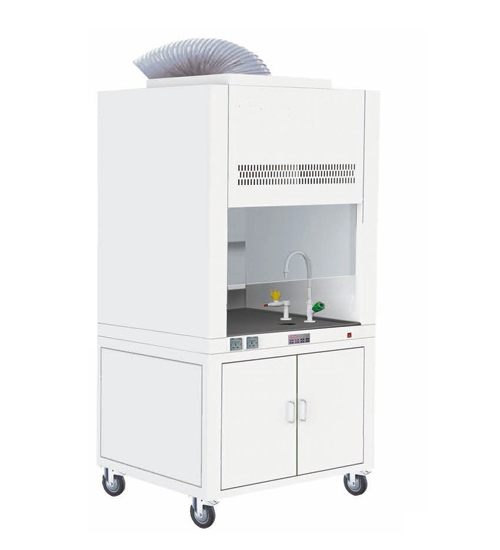

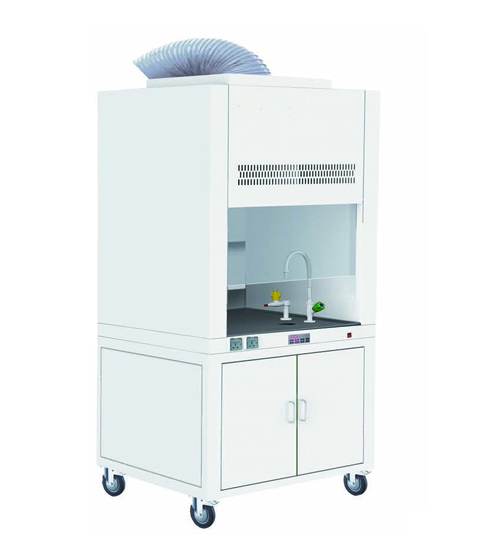

FSF Fume hood

Quantity:

1. UV Lamp for sterilization.

2. Built-in centrifugal blower.

3. Motorized front glass window.

4. Adjustable air speed: 9 levels.

5. Microprocessor control system, LED display.

6. Double-layer structure: 1.2mm sheet metal surface, melamine board inward.


ModelFSF1000FSF1200FSF1500FSF1800
External Size (W*D*H)1000*750*2320mm1200*800*2345mm1500*800*2345mm1800*800*2345 mm
Internal Size (W*D*H)820*520*872mm1020*670*750mm1320*670*750mm1620*670*750mm
Work Surface Height850mm
Max Opening520mm570mm570mm570mm
Air Velocity0.3-0.8m/s
Protection ClassClass I
Protection TypeIP 20
Noise≤60dB
Exhaust DuctPVC, Standard length: 4 meters.
Φ300mm
Pipe Strap
1 pc
Fluorescent Lamp14W*121W*128W*136W*1
UV LampEmission of 253.7 nanometers fo most efficient decontamination
BlowerBuilt-in centrifugal blower; Speed adjustable
Front Window5mm toughened glass; Motorized; Height adjustable
Power SupplyAC220V±0%, 50/60Hz; 110V±10%, 60Hz
Consumption400W400W500W500W
MaterialExteriorCold-rolled steel with anti-bacteria powder coating.
InteriorHigh grade melamine board with good acid and alkali resistance function
Work TableChemical resistant phenolic resin
Standard AccessoryUV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap
Total load of 2 waterproof sockets: 500W
4 meters PVC exhaust duct
Optional AccessoryActive carbon filte
Gross Weight272kg302kg331kg366kg
Package Size
(W*D*H)
Main Body1150*900*1870mm1350*950*1920mm1650*950*1890mm1950*950*1900mm
Base Cabinet1150*900*960mm1350*950*900mm1650*960*910mm1950*960*910mm
