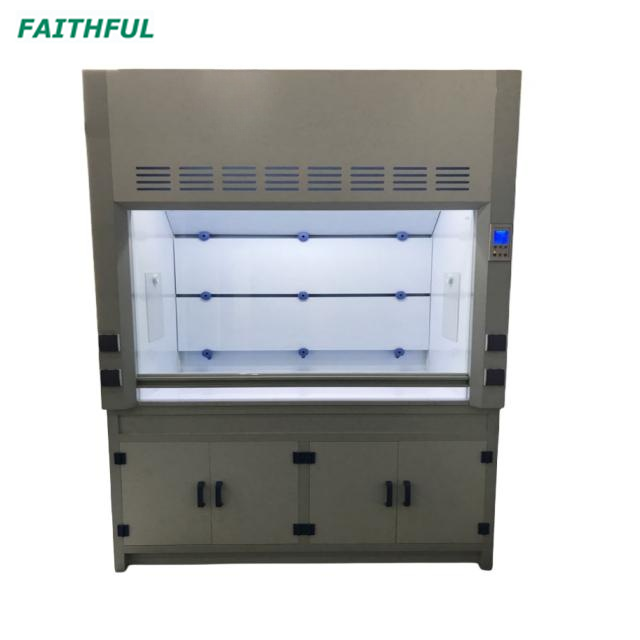

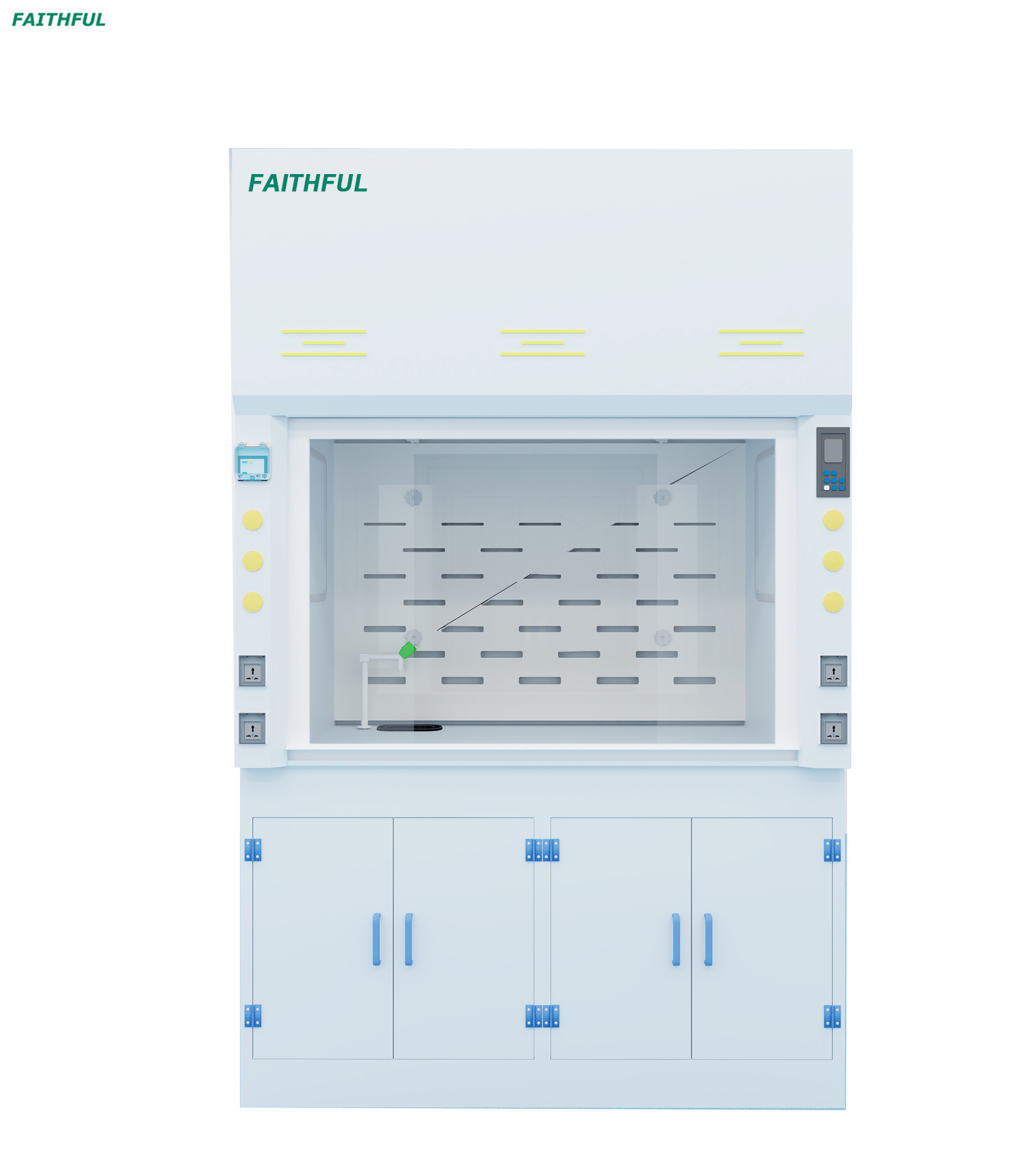

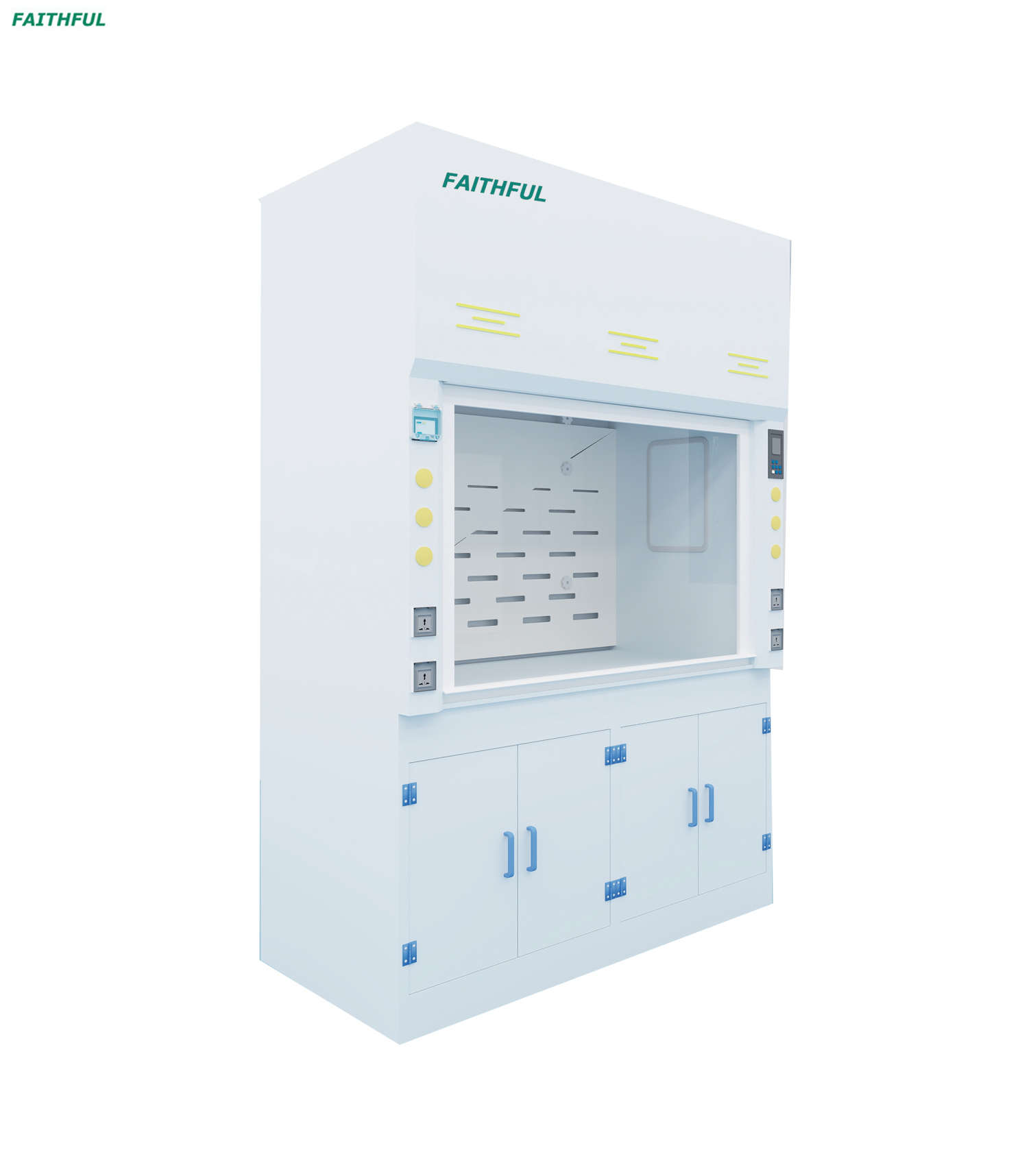

FSF PP Fume hood

Polypropylene Fume Hood is a fully PP constructed fume hood.
PP Fume Hood with strong acid and alkali resistance and anti-corrosion, it is widely used in medical, chemical, university, scientific research institution ,vehicle and steel factory and etc

It designed to handle the most corrosive application and environment.
The Fume Hood can against highly corrosive chemicals and fumes.

FSF Fume Hood Optional customized Size
Availability:
Quantity:
  • FSF-1200P,FSF-1500P,FSF-1800P

  • FAITHFUL

Standard Characters:

1.Shell: made of 8mm white PP board which has excellent anti-corrosion performance, with seamless welding make sure a strongcompact structure and tightness.

2.Cabinet door: made of 8mm white PP board, with shutter for ventilation inside the cabinet.

3. Worktop: Standard is Phenolic resin board. PP board, epoxy resin or ceramic worktop are optional.

4.Air collection hood: cone shape collecting hood made of white PPboard.

5.Fluorescent lamp: fully cover fluorescent lamp, model 1200/1500 is 30W, model 1800 is 40W.

6.Handle: PP handle

7.Hinge: PP hinge

8.Touch control panel: with buttons of power, fan, volume switch, lighting etc.

9.Air deflector: 8mm imported white PP board with excellent anti-corrosion performance.

10.Power: 4 PCS AC 220V,10A sockets, 1 main power switch and 1 backup power switch.

11.Viewing window: 5mm transparent PVC board

12. .Assay sink: one-piece form PP sink, acid and alkali resistant, with filtering and stink-blockfunction.

13.Water tap: 1 pc single outlet water tap.

14. .Air tap: air tap is optional.


Model

FSF-1200P

FSF-1500P

FSF-1800P

External Size(mm)

1200*850*2350

1500*850*2350

1800*850*2350

Working size(mm)

900*700*1100

1300*700*1100

1500*700*1100

Worktop height

850mm

850mm

850mm

Main material

8mm PP board

8mm PP board

8mm PP board

Window height

750mm

750mm

750mm

Illumination

≥300LUX

≥300LUX

≥300LUX

Gas collecting hood size

ç250

ç250

Ç315

Exhaust air rate

1200m3/h

1500m3/h

1800m3/h
