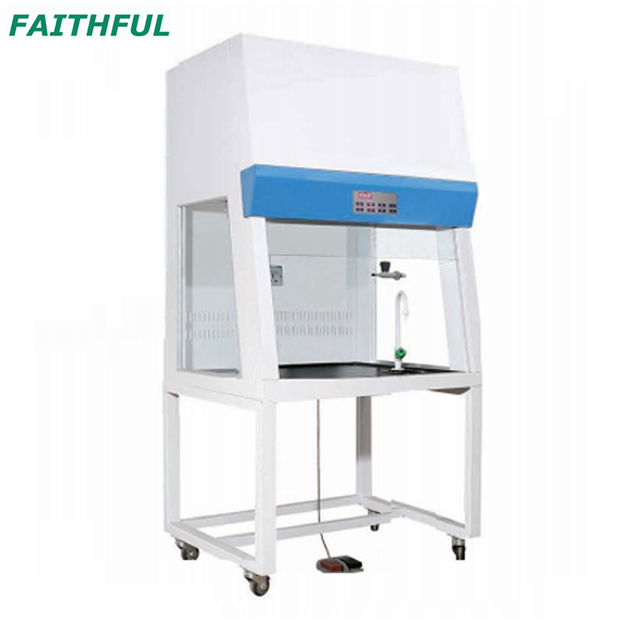

FSF-(X) Fume hood

Quantity:

1. UV lamp for sterilization.

2. Motorized front glass window.

3. Adjustable air speed: 9 levels.

4. Alarm when filter working time 3500 hours.

5. With air velocity memory function in case of power failure.

6. Back side air compensation, to avoid turbulence in work area.

7. 10°slope front ergonomics design, fatigue-free working posture.

8. Microprocessor control system, LED display shows filter working time .

9. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.


ModelFSF1000(X)FSF1200(X)FSF1500(X)FSF1800(X)
External Size (W*D*H)1000*840*2150mm1200*840*2150mm1600*840*2150mm1800*840*2150mm
Internal Size (W*D*H)880*730*745mm1080*730*745mm1380*730*745mm1680*730*745mm
Work Surface Height750mm
Max Opening520mm
BlowerBuilt-in centrifugal blower; Speed adjustable with 9 levels
Air Velocity0.3-0.8m/s
Noise≤60dB
Fluorescent Lamp18W*118W*136W*136W*1
UV LampEmission of 253.7 nanometers fo most efficient decontamination
Front WindowMotorized; 5 mm toughened glass, anti-UV
MaterialExterior:Cold-rolled steel with anti-bacteria powder coating.
Work Table:Chemical resistant phenolic resin
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption400W400W500W500W
Standard AccessoryWater tap, Gas tap, Water sink, Base stand, UV lamp*2, Fluorescent lamp. FH1000(X) with one
waterproof socket consumption not more than 500W, the rest models with two waterproof sockets
consumption not more than 500W, 4 meters exhaust duct, Active carbon filter, Foot switch
Gross Weight230kg253kg280kg340kg
Package Size
(W*D*H)
1230*1120*1680mm1350*1120*1680mm1650*1120*1680mm1950*1120*1680mm
