1.LCD display. It is easy to set up and use
2.Simultaneous display of set and actual time, temperature
3.Temperature deflection adjusting meet with different demands
4.Easy to replace the metal blocks and is very simple to clean and sterilize
5.Microprocessor controlled incubation time and temperature
6.Beep-signal/Stop after program completed
7.Peltier design of MK-20 provides efficient thermal control
Specification
Model | HSl100-2A | HPl100-2A |
Temperature control range | RT. +5° C--100° C | RT. -10° C-100° C |
Timer range | 1 min-99h59min | 1 min-99h59min |
Temp.stability@100° C | ±0.5℃ | ±0.5℃ |
Display accuracy | ±0.1℃ | ±0.1℃ |
Heating Time (25° C to 100° C) | ≤12min | ≤15min |
Cooling Time (20° C to -10° C) | - | ≤15min(20℃to-5℃)1f the room temperature 1s lower than 30℃ ≤15min(20℃to-10℃)1f the room temperature 1s lower than 30℃ |
Certificate | CE | CE |
Dimensions (L*W*H mm) | 300 x 220 x 180mm | 300 x 220 x 180mm |
Weight | 2.5kg | 5kg |
Ordering information
No. | Code | Description |
01 | AS-01040-00 | HBl-10(Heating),AC220V/120V, 50/60Hz, 150W |

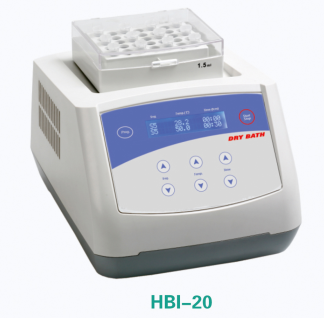

02 | AS-01050-00 | HBl-20 (Heating/Cooling), AC220V/120V, 50/60Hz, 200W |

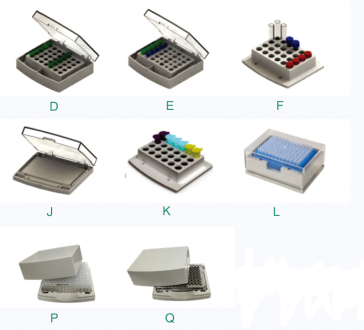

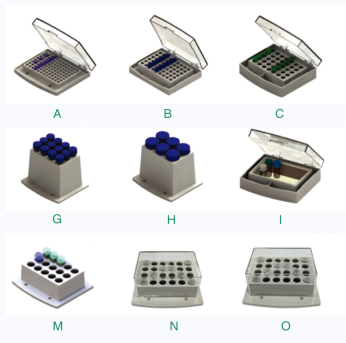

Accessories
No. | Code | Type | Description | The highest Temperature | The lowest Temperature |
01 | AS-01051-01 | A | 96 x O 2ml tubes | 100℃ | -10℃ |
02 | AS-01051-02 | B | 54 x O 5ml tubes | 100℃ | -10℃ |
03 | AS-01051-03 | C | 35 x 1 5ml tubes | 100℃ | -10℃ |
04 | AS-01051-04 | D | 35 x 2 0ml tubes | 100℃ | -10℃ |
05 | AS-01051-05 | E | 15 x O 5ml+20 x 1.5ml tubes | 100℃ | -10℃ |
06 | AS-01051-06 | F | 24 x diameter≤Φ12mm tubes | 100℃ | 0℃ |
07 | AS-01051-07 | G | 12 x 15ml Falcon | 100℃ | 0℃ |
08 | AS-01051-08 | H | 6 x 50ml Falcon | 100℃ | 0℃ |
09 | AS-01051-09 | I | 103 x 67 x 30ml Bath Block | 100℃ | 0℃ |
10 | AS-01051-010 | J | 96 x O 2ml Microplate | 100℃ | 0℃ |
11 | AS-01051-011 | K | 24 x 5ml tubes | 100℃ | 0℃ |
12 | AS-01051-012 | L | 96-Deep well plate | 80℃ | 8℃ |
13 | AS-01051-013 | M | 15 x 5ml Eppendorf tubes | 100℃ | 0℃ |
