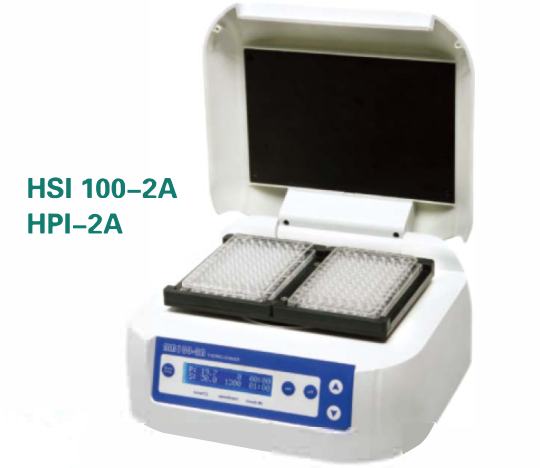

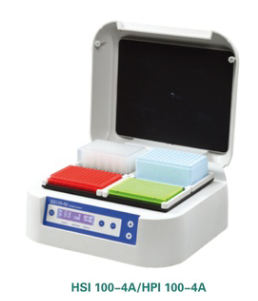

HPl100-2A/HPl100-4A Thermo Shaker Incubator for plates HSl100-2A/HSl100-4A Incubator for plates

Quantity:

Descriptipn:

1.HPI100-2A,HPI100-4A, HSI100-2A,HSI100-4A are designed for 1-4 standard 96 well plates in the thermostat mode.

2.HSI100-2A, HSI100-4A have only incubation functions.

3.HPI100-2A, HPI100-4A have incubation and shaking functions.

4.A distinctive feature for the MB100-2A, MB100-4A and MK100-2A, MK100-4A is two-side heating of microtest plates that allows     achieving exact correspondence of the set and actual temperature in wells of the microtest plates.

Features:

1.Heating plates above and below the microplates

2.Exact correspondence of the designed and actual temperature

3.LCD display. It is easy to set up and use

4.MB series have incubation and shaking functions


Specification

Model

HSl100-2A

HPl100-2A

HSl100-4A

HPl100-4A

Temperature control range

RT. +5° C--70° C

RT. +5° C--70° C

RT. +5° C--70° C

RT. +5° C--70° C

Timer range

1 min-99h59min

1 min-99h59min

1 min-99h59min

1 min-99h59min

Temp control accuracy

±0.5

±0.5

±0.5

±0.5

Display accuracy

±0.1

±0.1

±0.1

±0.1

Shaking Speed

100-1200rpm


100-1500rpm

Mixing Orbit


2mm


2mm

Heating Time (20 to 70° C)

20min

20min

20min

20min

Platform Capacity

2 plates

2 plates

4 plates

4 plates

Dimensions (mm)

280 x 270 x 150 mm

280 x 270 x 150 mm

320 x 350 x 185 mm

320 x 350 x 185 mm

Weight

4kg

6 5kg

8kg

9kg


Ordering information

No.

Code

Description

01

AS-01140-00

HSl100-2A, AC100-240V, 50/60Hz, 150W

02

AS-03030-00

HPI100-2A, AC100-240V, 50/60Hz, 150W

03

AS-01060-00

HSl100-4A, AC120/220V, 50/60Hz, 200W

04

AS-03020-00

HPI100-4A, AC120/220V, 50/60Hz, 300W
