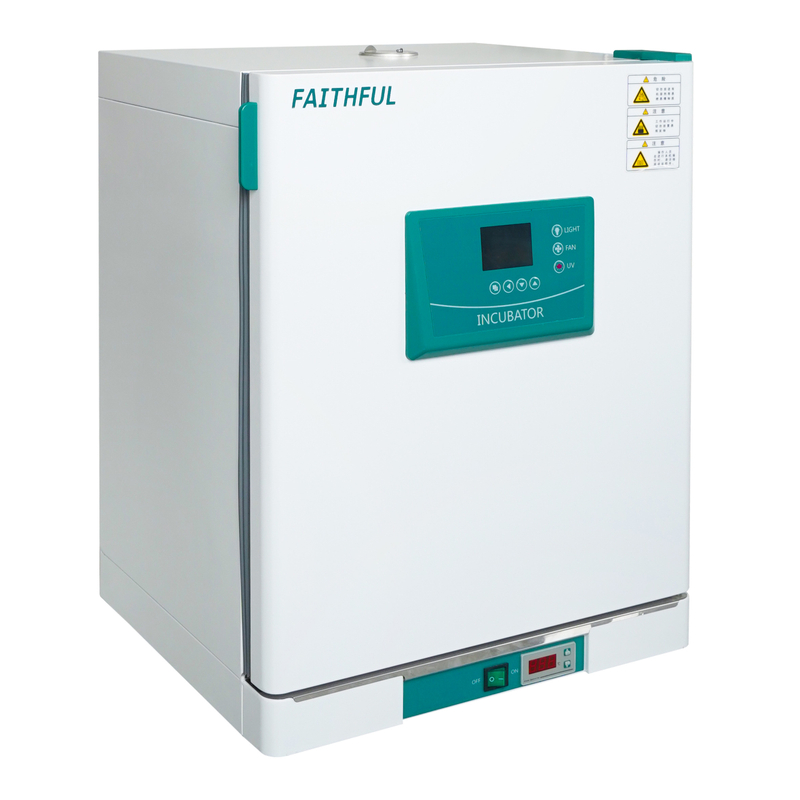

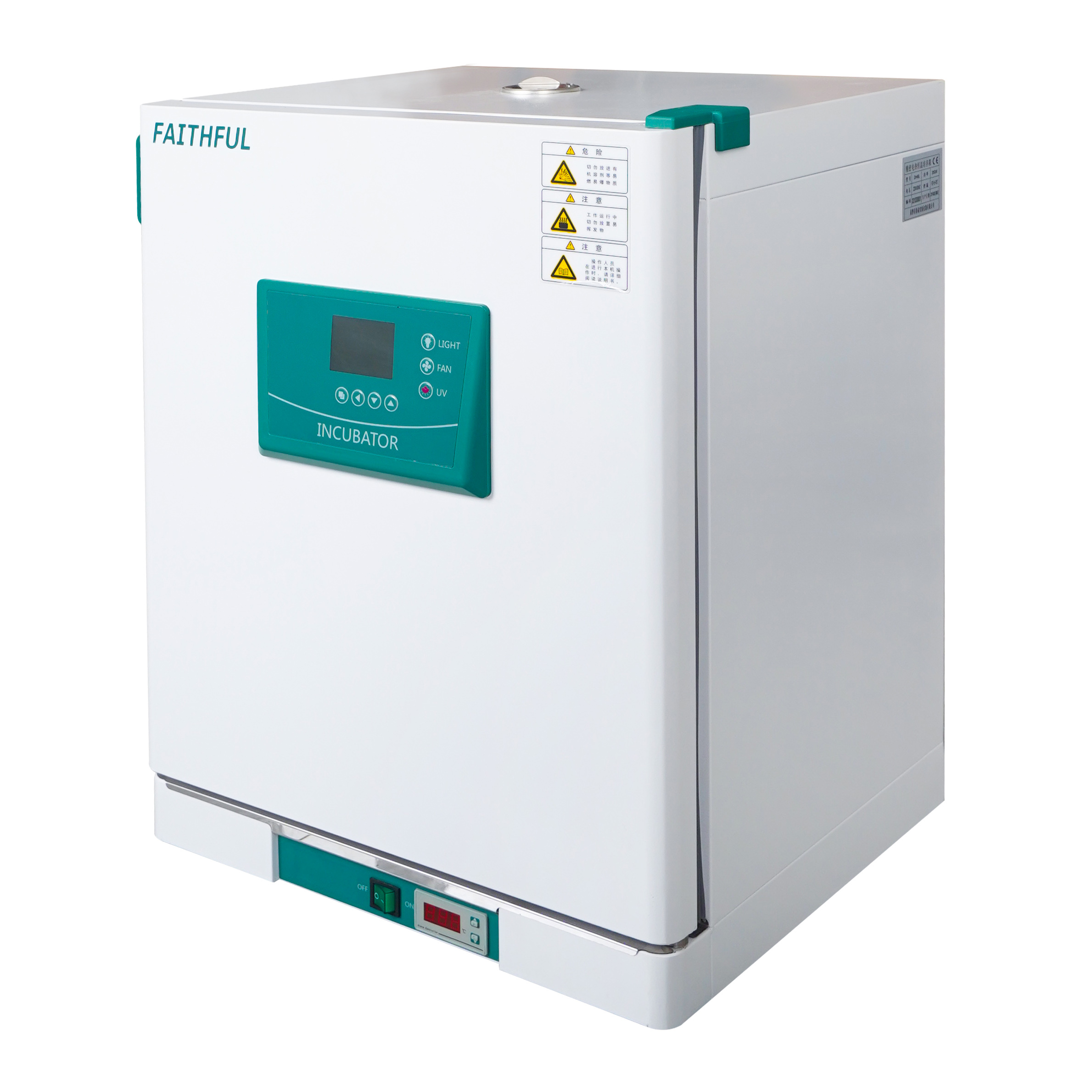

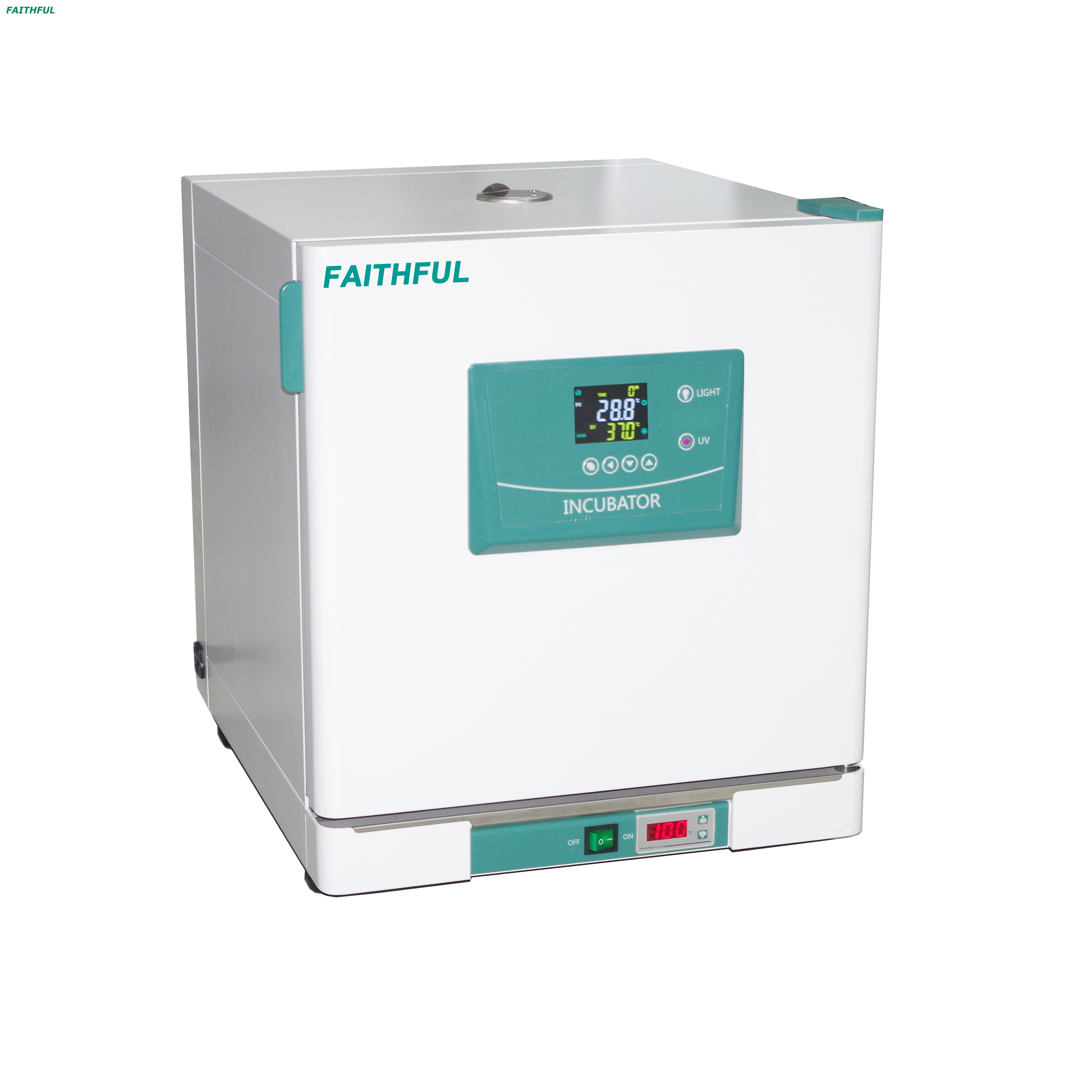

DH45L, DH65L, DH125L, DH210L
FAITHFUL
Product Description:

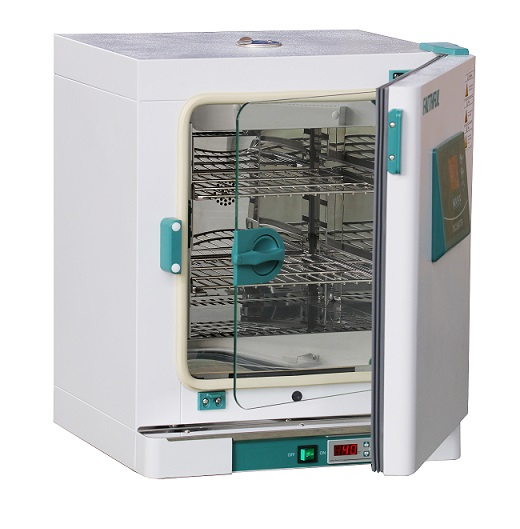

1. The double door structure adopts high quality glass, easy to observe samples, the outdoor with magnetic strip is easy to be opened and closed, good sealing, open door power-off function.
2. Standard lights, UV lamps, with breeze circulation fan.
3. High precision digital independent temperature limiter.
4.With function of cutting off UV lamp by open door.
Product Description:
1. The double door structure adopts high quality glass, easy to observe samples, the outdoor with magnetic strip is easy to be opened and closed, good sealing, open door power-off function.
2. Standard lights, UV lamps, with breeze circulation fan.
3. High precision digital independent temperature limiter.
4.With function of cutting off UV lamp by open door.

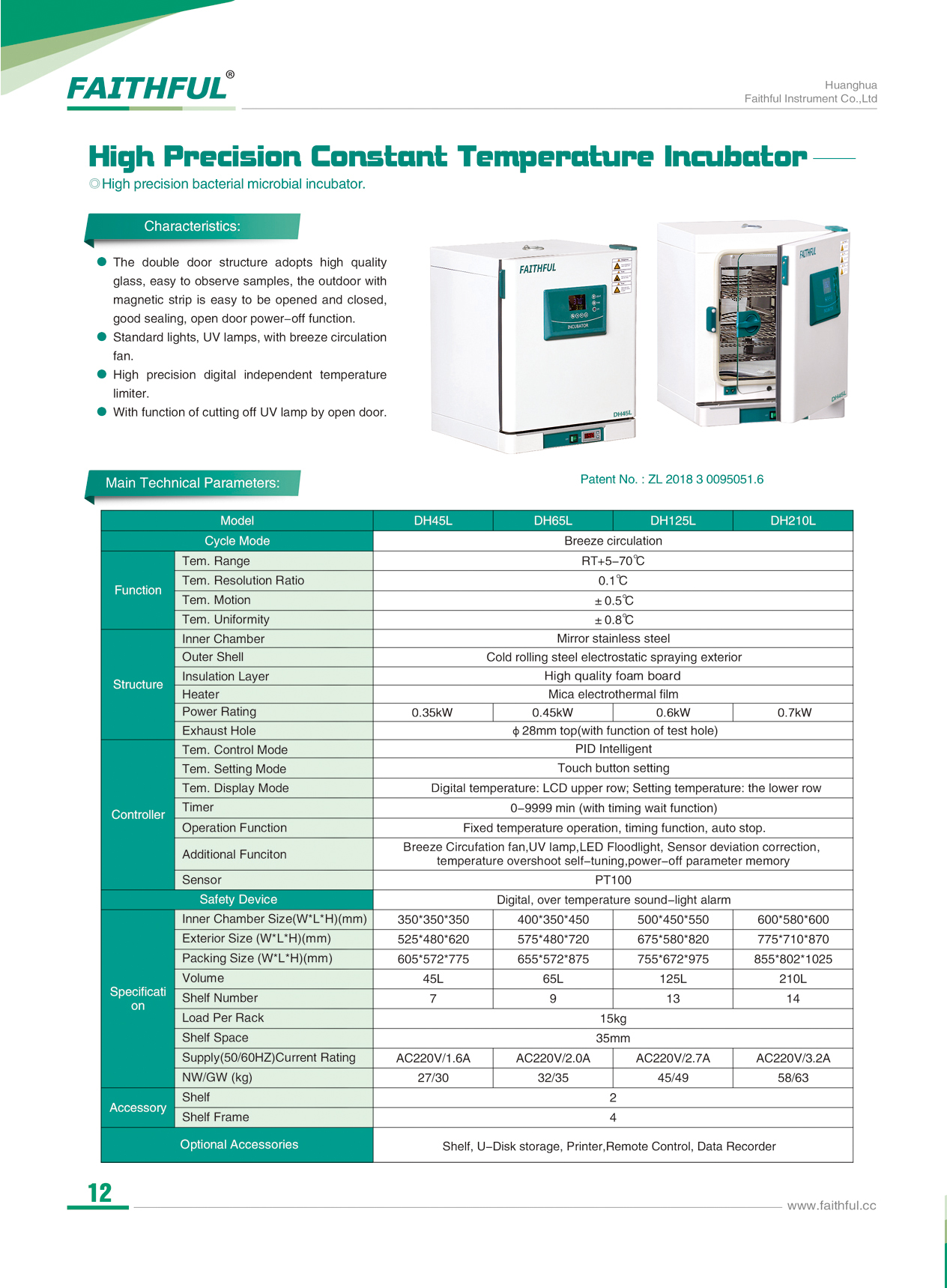

Model | DH45L | DH65L | DH125L | DH210L | |
Cycle Mode | Breeze circulation | ||||
Function | Tem. Range | RT+5-70℃ | |||
Tem. Resolution Ratio | 0.1℃ | ||||
Tem. Motion | ±0.5℃ | ||||
Tem. Uniformity | ±0.8℃ | ||||
Structure | Inner Chamber | Mirror stainless steel | |||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
Insulation layer | High quality foam board | ||||
Heater | Mica electrothermal film | ||||
Power Rating | 0.35kW | 0.45kW | 0.6kW | 0.7kW | |
Exhaust hole | φ35mm top(with function of test hole) | ||||
Controller | Tem. control mode | PID Intelligent | |||
Tem. setting mode | Touch button setting | ||||
Tem. display mode | Digital temperature: LCD upper row; Setting temperature: the lower row | ||||
Timer | 0-9999 min (with timing wait function) | ||||
Operation function | Fixed temperature operation, timing function, auto stop. | ||||
Additional funciton | Breeze circufation fan, UV lamp, LED Floodlight, Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory | ||||
Sensor | PT100 | ||||
Safety device | Digitial independent temp limiter, over temperature sound-light alarm | ||||
Specification | Inner Chamber size(W*L*H)(mm) | 350*350 *350 | 400*350 *450 | 500*450 *550 | 600*580 *600 |
Exterior size (W*L*H)(mm) | 525*480 *620 | 575*480 *720 | 675*580 *820 | 775*710 *870 | |
Packing size (W*L*H)(mm) | 595*562 *795 | 645*562 *885 | 745*662 *990 | 845*792 *1040 | |
Volume | 45L | 65L | 125L | 210L | |
Shelf number | 7 | 10 | 13 | 14 | |
Load per rack | 15kg | ||||
Shelf space | 35mm | ||||
Supply(50/60HZ)Current rating | AC220V/ 1.6A | AC220V/ 2.0A | AC220V/ 2.7A | AC220V/ 3.2A | |
NW/GW (kg) | 27/40 | 32/45 | 45/60 | 55/70 | |
Accessory | Shelf | 2 | |||
Shelf frame | 4 | ||||
optional accessories | Spare shelf, RS 485 port, USB data storage |
Model | DH45L | DH65L | DH125L | DH210L | |
Cycle Mode | Breeze circulation | ||||
Function | Tem. Range | RT+5-70℃ | |||
Tem. Resolution Ratio | 0.1℃ | ||||
Tem. Motion | ±0.5℃ | ||||
Tem. Uniformity | ±0.8℃ | ||||
Structure | Inner Chamber | Mirror stainless steel | |||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
Insulation layer | High quality foam board | ||||
Heater | Mica electrothermal film | ||||
Power Rating | 0.35kW | 0.45kW | 0.6kW | 0.7kW | |
Exhaust hole | φ35mm top(with function of test hole) | ||||
Controller | Tem. control mode | PID Intelligent | |||
Tem. setting mode | Touch button setting | ||||
Tem. display mode | Digital temperature: LCD upper row; Setting temperature: the lower row | ||||
Timer | 0-9999 min (with timing wait function) | ||||
Operation function | Fixed temperature operation, timing function, auto stop. | ||||
Additional funciton | Breeze circufation fan, UV lamp, LED Floodlight, Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory | ||||
Sensor | PT100 | ||||
Safety device | Digitial independent temp limiter, over temperature sound-light alarm | ||||
Specification | Inner Chamber size(W*L*H)(mm) | 350*350 *350 | 400*350 *450 | 500*450 *550 | 600*580 *600 |
Exterior size (W*L*H)(mm) | 525*480 *620 | 575*480 *720 | 675*580 *820 | 775*710 *870 | |
Packing size (W*L*H)(mm) | 595*562 *795 | 645*562 *885 | 745*662 *990 | 845*792 *1040 | |
Volume | 45L | 65L | 125L | 210L | |
Shelf number | 7 | 10 | 13 | 14 | |
Load per rack | 15kg | ||||
Shelf space | 35mm | ||||
Supply(50/60HZ)Current rating | AC220V/ 1.6A | AC220V/ 2.0A | AC220V/ 2.7A | AC220V/ 3.2A | |
NW/GW (kg) | 27/40 | 32/45 | 45/60 | 55/70 | |
Accessory | Shelf | 2 | |||
Shelf frame | 4 | ||||
optional accessories | Spare shelf, RS 485 port, USB data storage |
