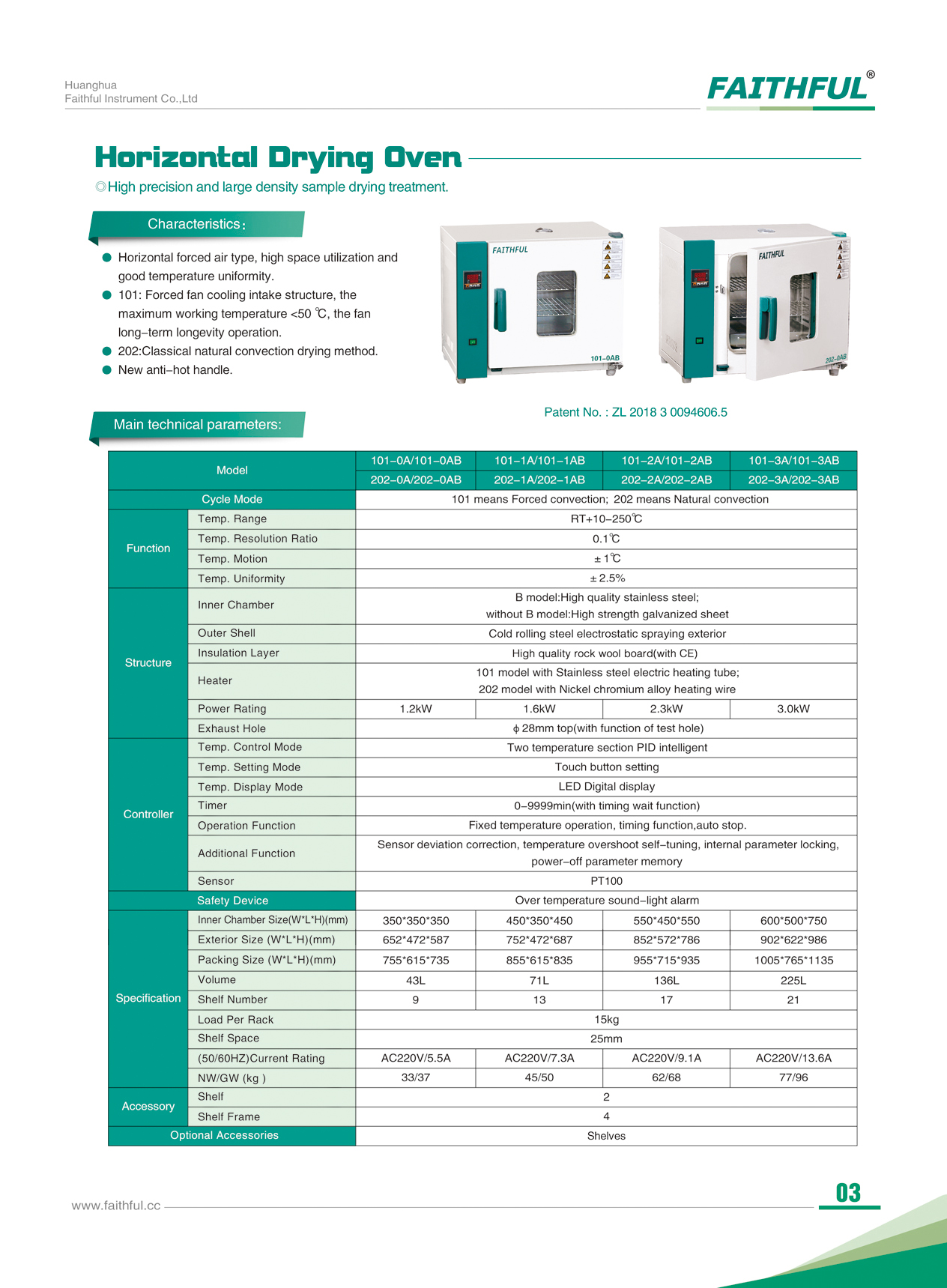

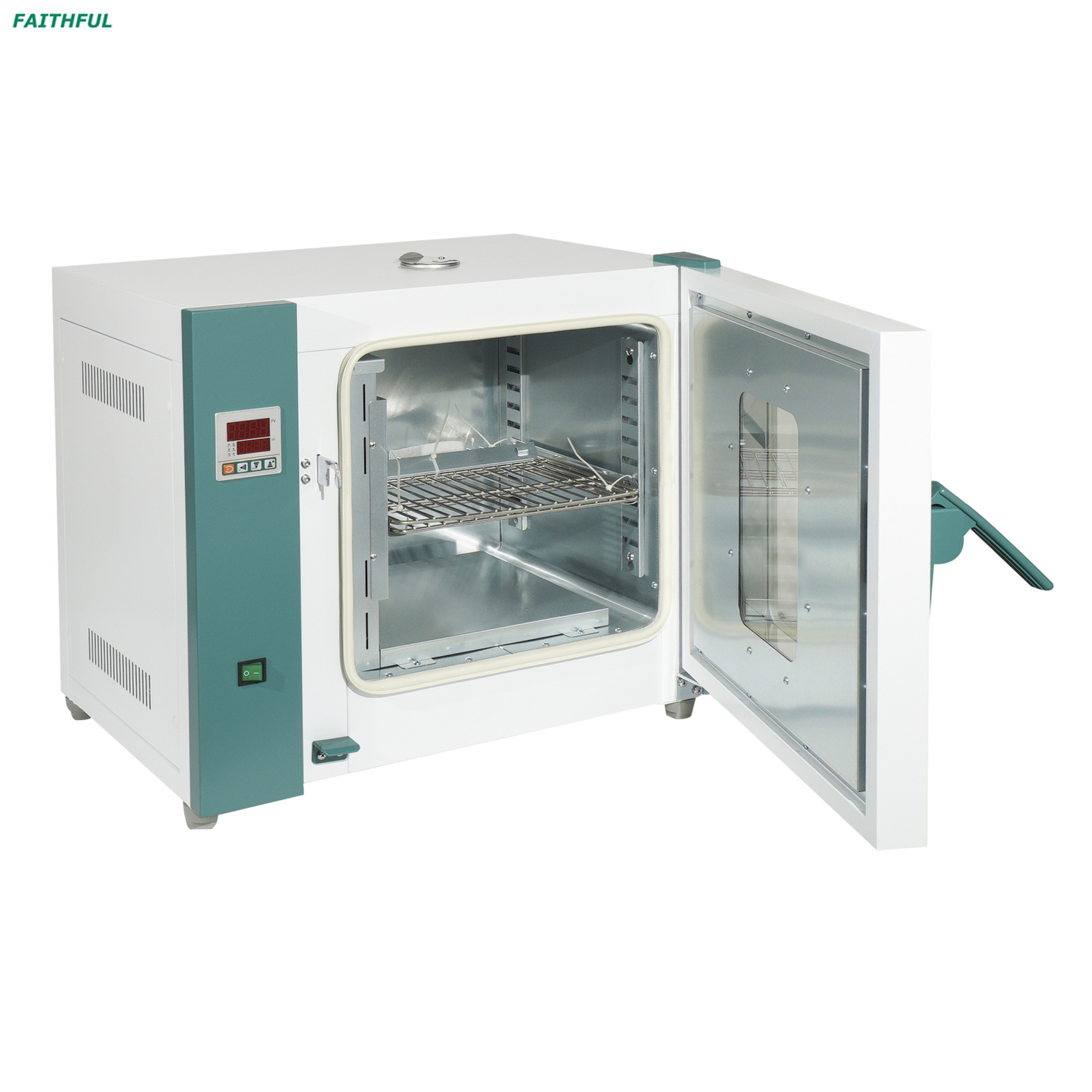

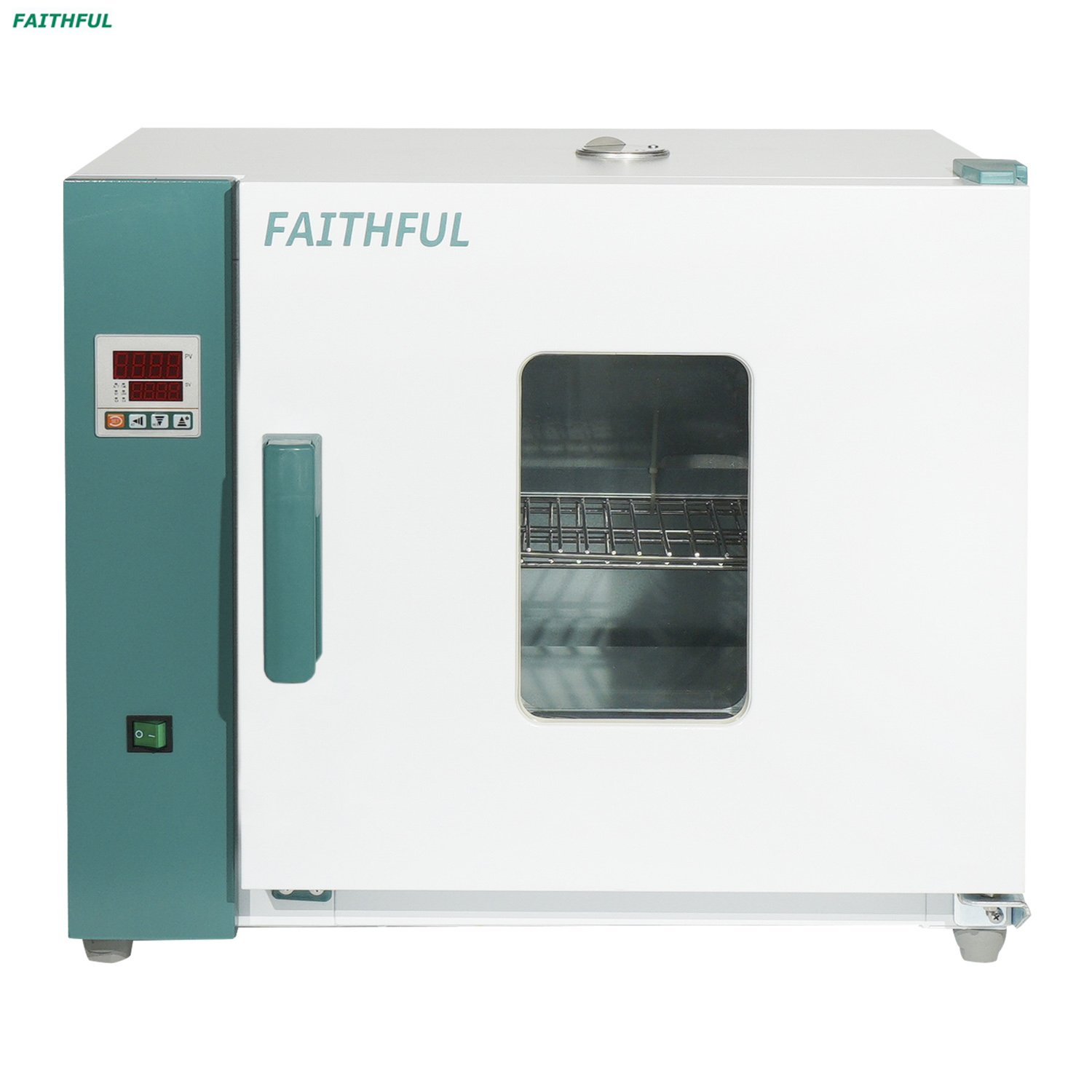

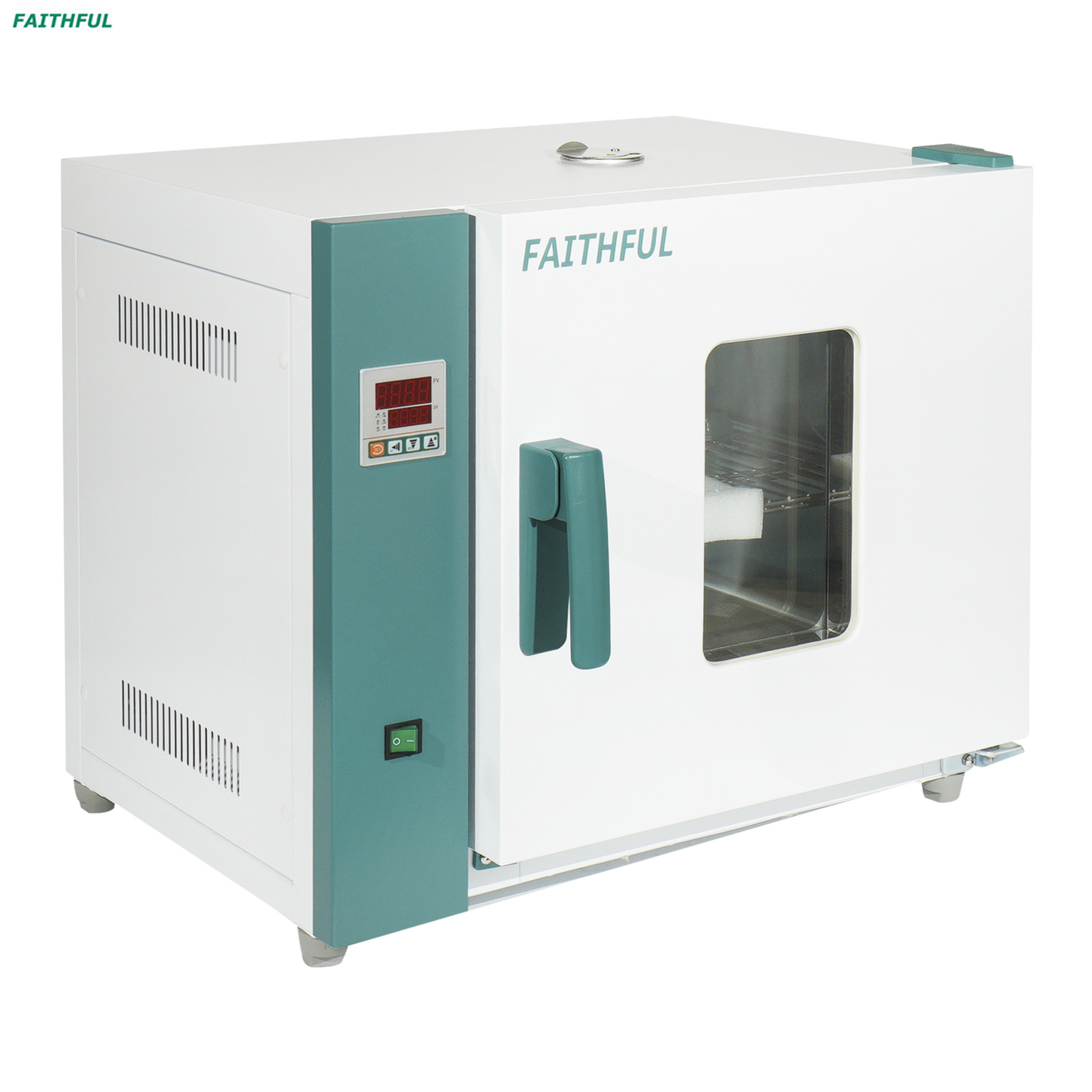

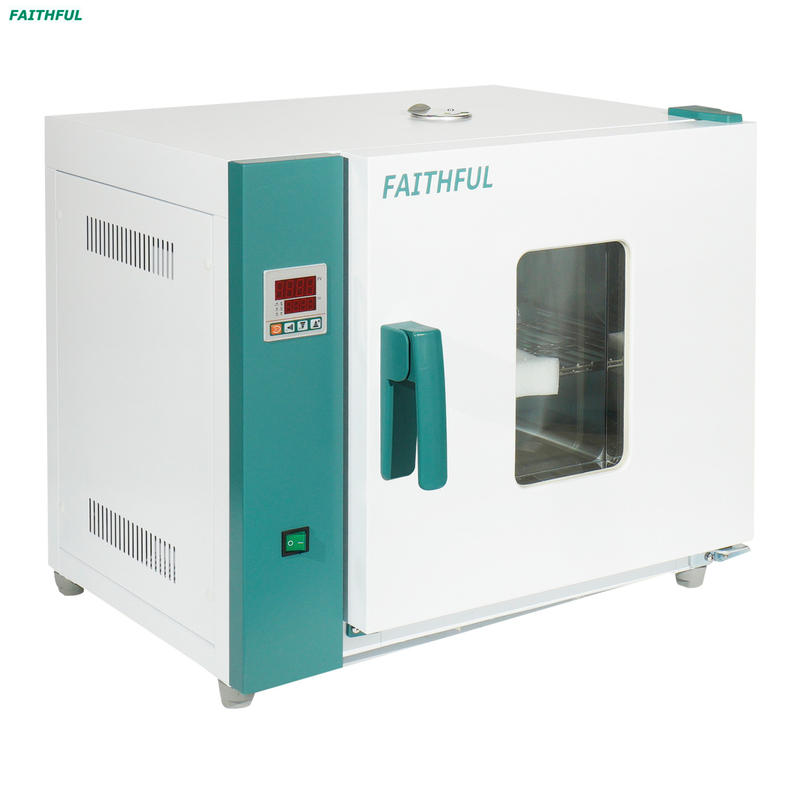

Horizontal  Drying Oven

High precision and large density sample drying treatment

Quantity:

Product Description

1. Horizontal forced air type, high space utilization and good temperature uniformity

2. 101: Forced fan cooling intake structure, the maximum working temperature<50 ℃, the fan long-term longevity operation

3. 202: Classical natural convection drying method

4. New anti-hot handle


Model101-0A/101-0AB101-1A/101-1AB101-2A/101-2AB101-3A/101-3AB
202-0A/202-0AB202-1A/202-1AB202-2A/202-2AB202-3A/202-3AB
Cycle Mode101 means Forced convection;202 means Natural convection
FunctionTemp. RangeRT+10-250
Temp. Resolution Ratio0.1
Temp. Motion±1
Temp. Uniformity±2.5%
StructureInner Chamber B model:High quality stainless steel;

 without B model:High strength galvanized sheet
Outer ShellCold rolling steel electrostatic spraying exterior
Insulation layerHigh quality rock wool board(with CE)
Heater101 model with Stainless steel electric heating tube;

202 model with Nickel chromium alloy heating wire
Power rating1.2kW1.6kW2.3kW3.0kW
Exhaust holeφ28mm top(with function of test hole)
ControllerTemp. control modeTwo temperature section PID intelligent
Temp. setting modeTouch button setting
Temp. display modeLED Digital display
Timer0-9999min(with timing wait function)
Operation functionFixed temperature operation, timing function,auto stop.
Additional functionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
Sensorpt100
Safety deviceOver temperature sound-light alarm
SpecificationInner Chamber size(W*L*H)(mm)350*350*350450*350*450550*450*550600*500*750
Exterior size (W*L*H)(mm)652*472*587752*472*687852*572*786902*622*986
Packing size (W*L*H)(mm)755*615*735855*615*835955*715*9351005*765*1135
Volume43L71L136L225L
Shelf number9131721
Load per rack15kg
Shelf space25mm
(50/60HZ)Current ratingAC220V/5.5AAC220V/7.3AAC220V/9.1AAC220V/13.6A
NW/GW (kg33/3745/5062/6877/96
AccessoryShelf2
Shelf frame4
optional accessoriesShelf


CE for Drying Oven LVD
