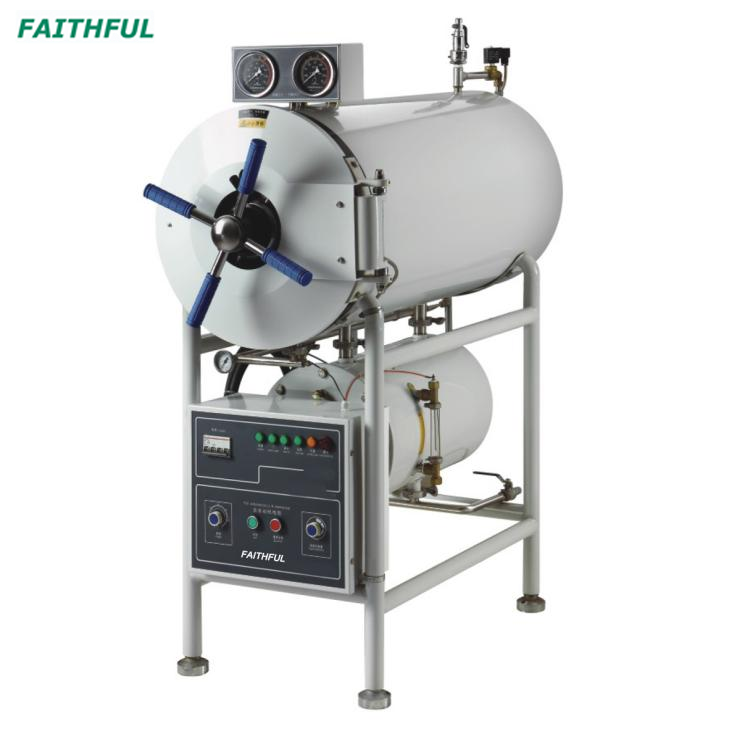

Horizontal cylindrical pressure steam sterilizer-FSF-YDA

Availability:
Quantity:
  • FSF-150YDA FSF-200YDA FSF-280YDA FSF-400YDA FSF-500YDA

  • FAITHFUL

Product Description

1. Sterilizing course automatic sterilization controlled,easy to operate.

2. With drying function,suitable dressing drying.

3. With over-temperature,over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

7. The chamber of the sterilizer is made of stainless steel.


ModelFSF-150YDAFSF-200YDAFSF-280YDAFSF-400YDAFSF-500YDA
Sterilizing chamber150L200L280L400L500L
 volumeφ440×1000mmφ515×1000mmφ600×1000mmΦ700×1100mmΦ700×1300mm
working pressure0.22MPa
working  temperature134
Adjustment of temperature105℃-134℃
Time of sterilization0-60min
Time of drying0--60min
Heat average≤±1
Power9KW/380V 50Hz9KW/380V 50Hz12KW/380V 50Hz18KW/380V 50Hz18KW/380V 50Hz
Dimension1400×600×13001400×670×16501400×770×17801430×880×18301800×900×1820
Transport dimension1550×750×18501560×820×18501680×920×21001800×1050×21001850×1050×2100
