SH-5A/SH-5C SH-6A/SH-6C SH-7A/SH-7C SH-8A/SH-8C SH-9A/SH-9C
FAITHFUL
Product Description:

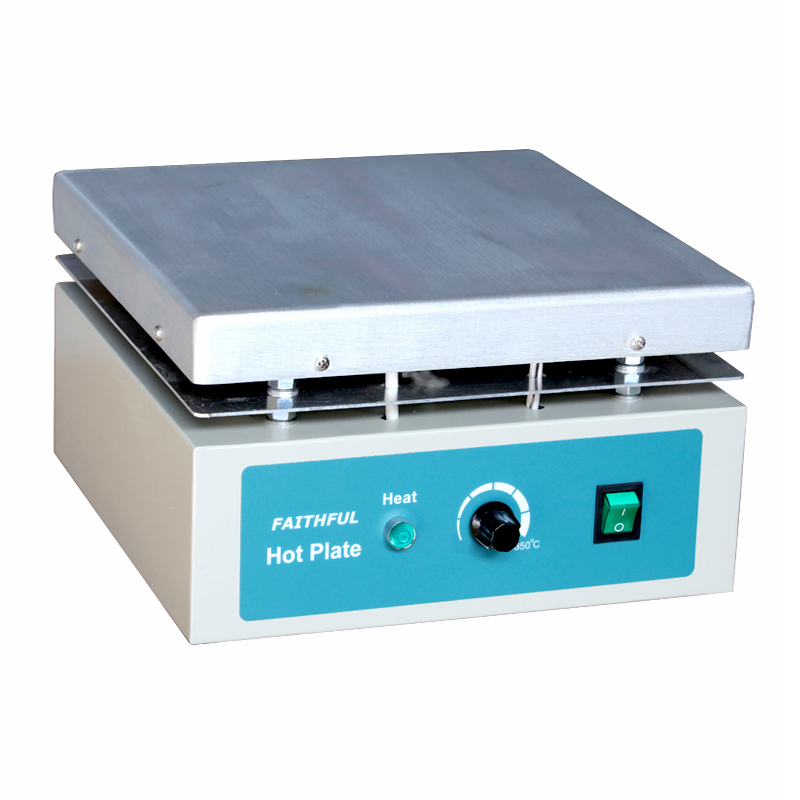

1.Aluminun hot plate,uniform surface temperature
2.Heating up fast and uniform,heating power is stepless adjustable

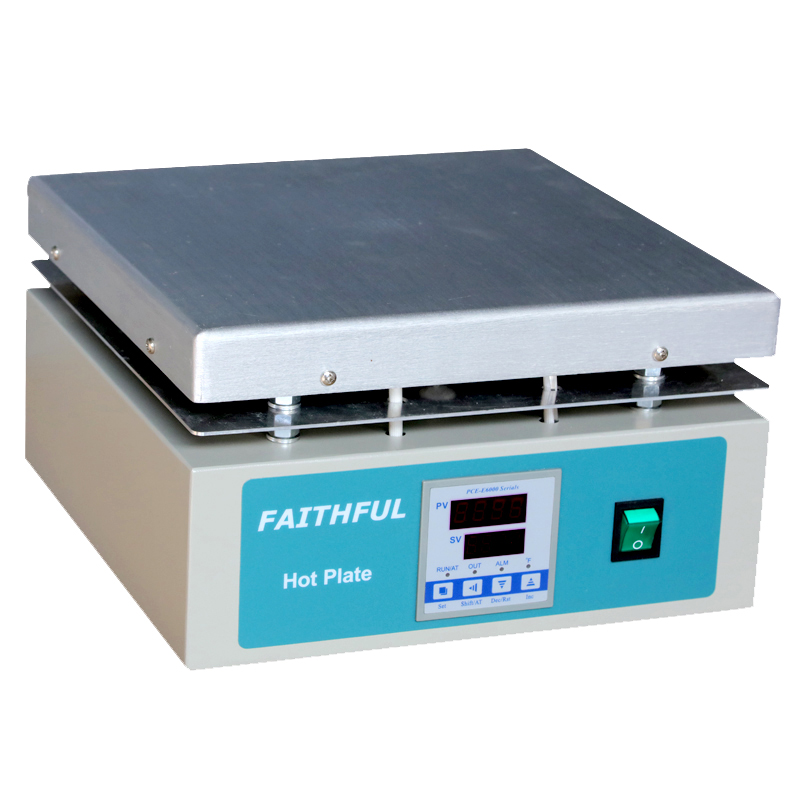

3.Digital hot plate has the more functions as follows:
Digital display can read the temperature more clearly.
Product Description:
1.Aluminun hot plate,uniform surface temperature
2.Heating up fast and uniform,heating power is stepless adjustable
3.Digital hot plate has the more functions as follows:
Digital display can read the temperature more clearly.
Model | SH-5A/5C | SH-6A/6C | SH-7A/7C | SH-8A/8C | SH-9A/9C | |
Working time | Continuous | |||||
Max Temp.(℃) | 350℃ | |||||
Structure | Outer Shell | Iron plate welding, surface spraying | ||||
Hot plate | Aluminum tensile | |||||
Driving mode | No | |||||
Heating power(W) | 1200 | 1800 | 2000 | 2600 | 3000 | |
Controller | Continuous operation | Yes | ||||
Setting method | Scale/Digital | |||||
Timer | No/Digital | |||||
Operation function | No | |||||
Temperature sensor | K mode | |||||
Exterior size (W*L*H)(cm) | 30*30*18 | 35*45*18 | 40*40*18 | 35*60*18 | 40*60*18 | |
Packing Size (W*L*H)(cm) | 34*37*22 | 42*50*22 | 45*47*22 | 42*65*22 | 47*65*22 | |
Plate size(mm) | 300*300 | 350*450 | 400*400 | 350*600 | 400*600 | |
Plate load | 20KG | 30KG | 30KG | 38KG | 40KG | |
Power supply(50/60Hz) | 220V | |||||
NW/GW (kg) | 6.2/7 | 8.4/9.6 | 8.5/9.8 | 11/13 | 12/14.2 |
Model | SH-5A/5C | SH-6A/6C | SH-7A/7C | SH-8A/8C | SH-9A/9C | |
Working time | Continuous | |||||
Max Temp.(℃) | 350℃ | |||||
Structure | Outer Shell | Iron plate welding, surface spraying | ||||
Hot plate | Aluminum tensile | |||||
Driving mode | No | |||||
Heating power(W) | 1200 | 1800 | 2000 | 2600 | 3000 | |
Controller | Continuous operation | Yes | ||||
Setting method | Scale/Digital | |||||
Timer | No/Digital | |||||
Operation function | No | |||||
Temperature sensor | K mode | |||||
Exterior size (W*L*H)(cm) | 30*30*18 | 35*45*18 | 40*40*18 | 35*60*18 | 40*60*18 | |
Packing Size (W*L*H)(cm) | 34*37*22 | 42*50*22 | 45*47*22 | 42*65*22 | 47*65*22 | |
Plate size(mm) | 300*300 | 350*450 | 400*400 | 350*600 | 400*600 | |
Plate load | 20KG | 30KG | 30KG | 38KG | 40KG | |
Power supply(50/60Hz) | 220V | |||||
NW/GW (kg) | 6.2/7 | 8.4/9.6 | 8.5/9.8 | 11/13 | 12/14.2 |
