It is mainly used to amplify tiny objects and become visible instruments to human eyes.
It is mainly used to amplify tiny objects and become visible instruments to human eyes.

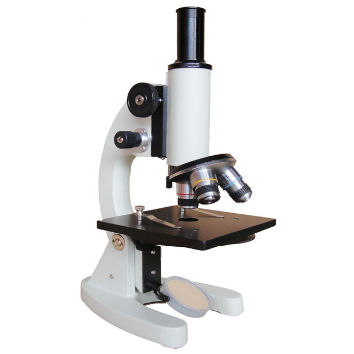

| Model | FSF-02-640X |
| 1、Total Magnification | 40X-640X |
| 2、Eyepieces | Huygenian Eyepieces：H10X,H16X |
| 3、Objectives | Achromatic Objectives：4X,10X,40X（S) |
| 4、Lens Tube | Monocular Vertical Tube |
| 5、Aperture of The Rotating Diaphragm | five steps total：Ø3.2mm，Ø4mm， Ø5mm，Ø8mm，Ø15mm |
| 6、Coarse Adjustment Range | 50mm |
| 7、Fine Adjustment Range | 1.8-2.2mm |
| 8、Working Stage | 120mm*120mm，Clips |
| 9、illumination | Concave-Plan Reflector：Ø50mm |
| 10、Options | Electric light source （110V/20W,220V/20W,12V/20W optional)； 0.18WLEDvariable cold light source ; You can choose the plug you want. |
| 11、Notes | This type of microscope is mainly made of metal ,including:Eyepiece tube, Objective tube, Platform, Holder, Sclice clip , Platform bracket and have a slight focus component in the bottom |
| Model | FSF-02-640X |
| 1、Total Magnification | 40X-640X |
| 2、Eyepieces | Huygenian Eyepieces：H10X,H16X |
| 3、Objectives | Achromatic Objectives：4X,10X,40X（S) |
| 4、Lens Tube | Monocular Vertical Tube |
| 5、Aperture of The Rotating Diaphragm | five steps total：Ø3.2mm，Ø4mm， Ø5mm，Ø8mm，Ø15mm |
| 6、Coarse Adjustment Range | 50mm |
| 7、Fine Adjustment Range | 1.8-2.2mm |
| 8、Working Stage | 120mm*120mm，Clips |
| 9、illumination | Concave-Plan Reflector：Ø50mm |
| 10、Options | Electric light source （110V/20W,220V/20W,12V/20W optional)； 0.18WLEDvariable cold light source ; You can choose the plug you want. |
| 11、Notes | This type of microscope is mainly made of metal ,including:Eyepiece tube, Objective tube, Platform, Holder, Sclice clip , Platform bracket and have a slight focus component in the bottom |
