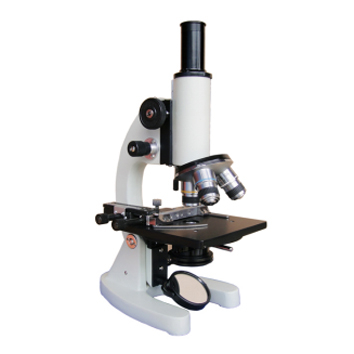

Microscope-FSF-06-1600X

Availability:
Quantity:

It is mainly used to amplify tiny objects and become visible instruments to human eyes.

ModelFSF-06-1600X
1Total Magnification20X-1250X
2EyepiecesHuygenian EyepiecesH5X,H10X,H12.5X
3ObjectivesAchromatic Objectives10X,40X(S),100X(S/OIL)
4Lens TubeMonocular Vertical Tube
5Aperture of The
Rotating Diaphragm
Abbe TypeNA=1.25,With Adjustable Diaphragm
And Filter Holder
6Coarse Adjustment
Range
50mm
7Fine Adjustment
Range
1.8-2.2mm
8Working Stage120mm*120mmattach one simple moving ruler
9illuminationConcave-Plan ReflectorØ50mm
10OptionsElectric light source
110V/20W,220V/20W,12V/20W optional)
0.18WLEDvariable cold light source ; You can
choose the plug you want.
11NotesThis type of microscope is mainly made of metal ,
including:Eyepiece tube, Objective tube, Platform,
Holder, Sclice clip , Platform bracket and have a slight
 focus component in the bottom
