It is mainly used to amplify tiny objects and become visible instruments to human eyes.
It is mainly used to amplify tiny objects and become visible instruments to human eyes.

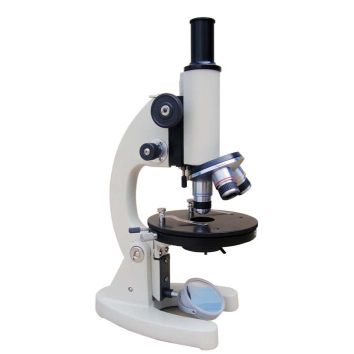

Model | FSF-L101-1600X |
1、Total Magnification | 50X-1600X |
2、Eyepieces | Huygenian Eyepieces:H5X,H10X,H16X |
3、Objectives | Achromatic Objectives:10X,40X,100X(OIL) |
4、Lens Tube | Monocular Vertical Tube |
5、Aperture of The Rotating Diaphragm | With Adjustable Diaphragm |
6、Coarse Adjustment Range | 50mm |
7、Fine Adjustment Range | 1.8-2.2mm |
8、Working Stage | Diameter of Roundstage 120mm,Clips |
9、illumination | Concave-Plan Reflector:Ø50mm |
10、Options | Electric light source (110V/20W,220V/20W,12V/20W optional); 0.18WLEDvariable cold light source ; You can choose the plug you want. |
11、Notes | This type of microscope is mainly made of metal ,including:Eyepiece tube, Objective tube, Platform, Holder, Sclice clip , Platform bracket and have a slight focus component in the bottom |
Model | FSF-L101-1600X |
1、Total Magnification | 50X-1600X |
2、Eyepieces | Huygenian Eyepieces:H5X,H10X,H16X |
3、Objectives | Achromatic Objectives:10X,40X,100X(OIL) |
4、Lens Tube | Monocular Vertical Tube |
5、Aperture of The Rotating Diaphragm | With Adjustable Diaphragm |
6、Coarse Adjustment Range | 50mm |
7、Fine Adjustment Range | 1.8-2.2mm |
8、Working Stage | Diameter of Roundstage 120mm,Clips |
9、illumination | Concave-Plan Reflector:Ø50mm |
10、Options | Electric light source (110V/20W,220V/20W,12V/20W optional); 0.18WLEDvariable cold light source ; You can choose the plug you want. |
11、Notes | This type of microscope is mainly made of metal ,including:Eyepiece tube, Objective tube, Platform, Holder, Sclice clip , Platform bracket and have a slight focus component in the bottom |
