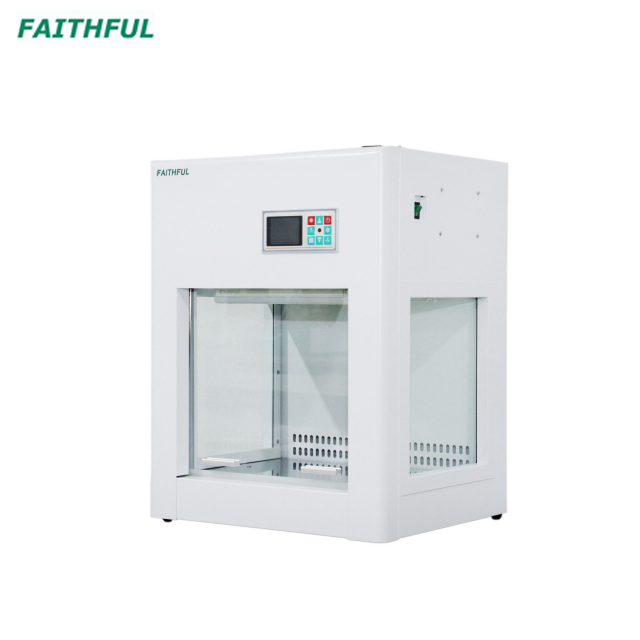

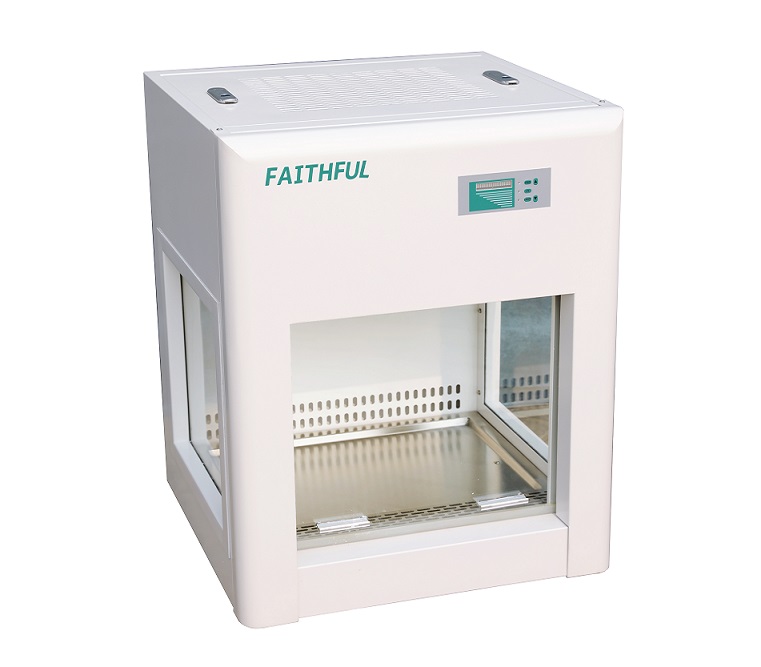

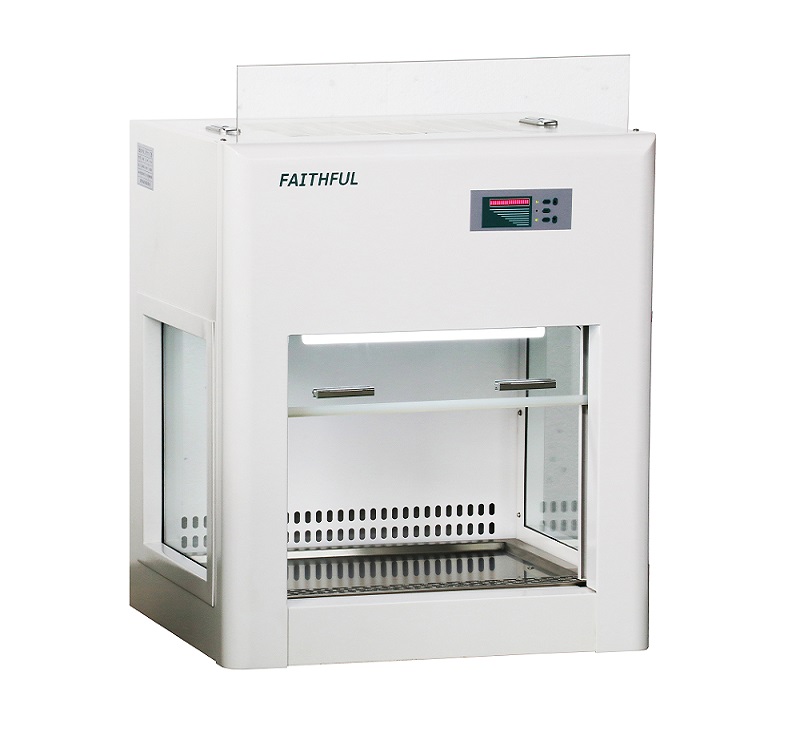

 Mini Laminar Flow Cabinet

Table type clean equipment
Availability:
Quantity:
  • CJ-600P,CJ-600PII

  • FAITHFUL

Product Description:

1. HEAP Filter with efficiency: 99.9999% at 0.3um.

2. Microprocessor control system, LED Display.

3. Manual front window is 5mm toughened glass, anti-ultraviolet radiation.

4. Air speed adjustable.

5. Desktop type, with a handle, saving space and easy to move.

6. Pre-filter is polyester fiber, washable and anti-ultraviolet radiation.

7.Automatic cutting off UV lamp function by opening glass.

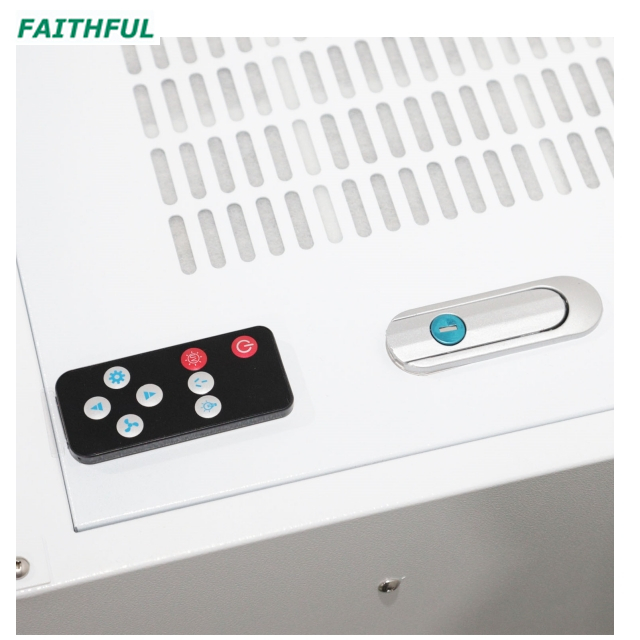

8. CJ-600PII,CJ-600NII have color screen LCD controller (with sterilization timing, built in socket controllable switch , front window status display, can set three position interlock , cumulative work timing, remote control)

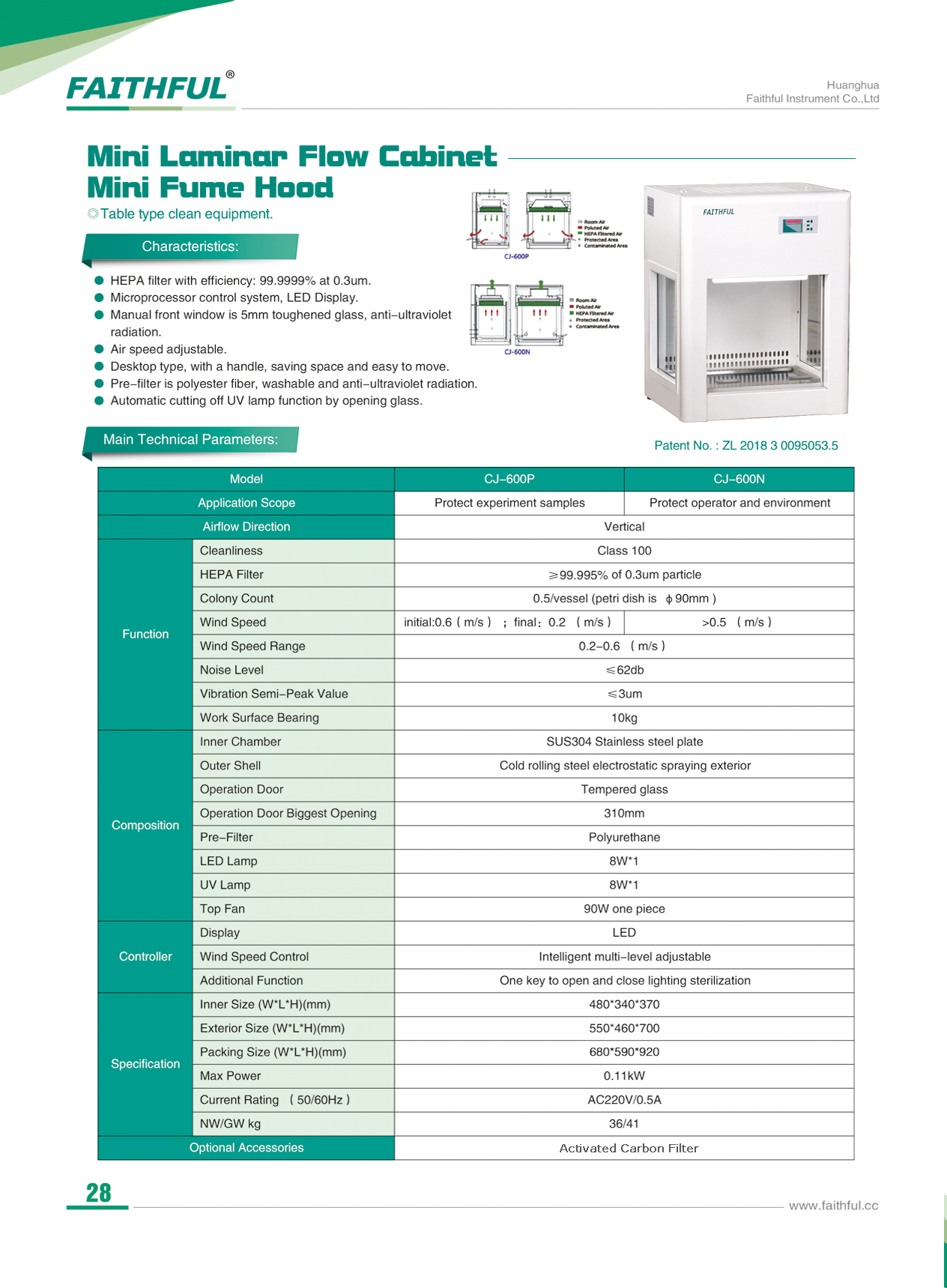

ModelCJ-600PCJ-600N
               CJ-600P II               CJ-600N II
Application ScopeProtect experiment
samples
Protect operator
and environment
Airflow DirectionVertical
FunctionCleanlinessClass 100
High efficiency filter≥99.999% of 0.3um particle
Colony Count≤0.5/vessel (petri dish is φ90mm )
Wind Speedinitial:0.6m/s
final
0.2 m/s
>0.5 (m/s)
Wind Speed
Range
0.2-0.6 (m/s)
Noise Level ≤62db
Vibration Semi-
Peak Value
 ≤3um
Work surface
bearing
10kg
CompositionInner ChamberSUS304 Stainless steel plate
Outer ShellCold rolling steel electrostatic spraying exterior
Operation doorTempered glass
Operation door
biggest opening
310mm
Pre-FilterPolyurethane
LED Lamp8W*1
UV Lamp8W*1
Top Fan90W one piece
ControllerDisplayLED
Wind Speed
Control
Intelligent multi-level adjustable
Additional
Function
One key to open and close
lighting sterilization
SpecificationInner Size
(W*L*H)
(mm)
480*340*370
Exterior Size
(W*L*H)(mm)
550*460*700
Packing Size
(W*L*H)
(mm)
680*590*850
Max Power 0.11kW
Current Rating (50/60Hz) AC220V/0.5A
NW/GW kg36/41
Optional Accessories

CJ-600PII, CJ600NII: wind speed sensor
