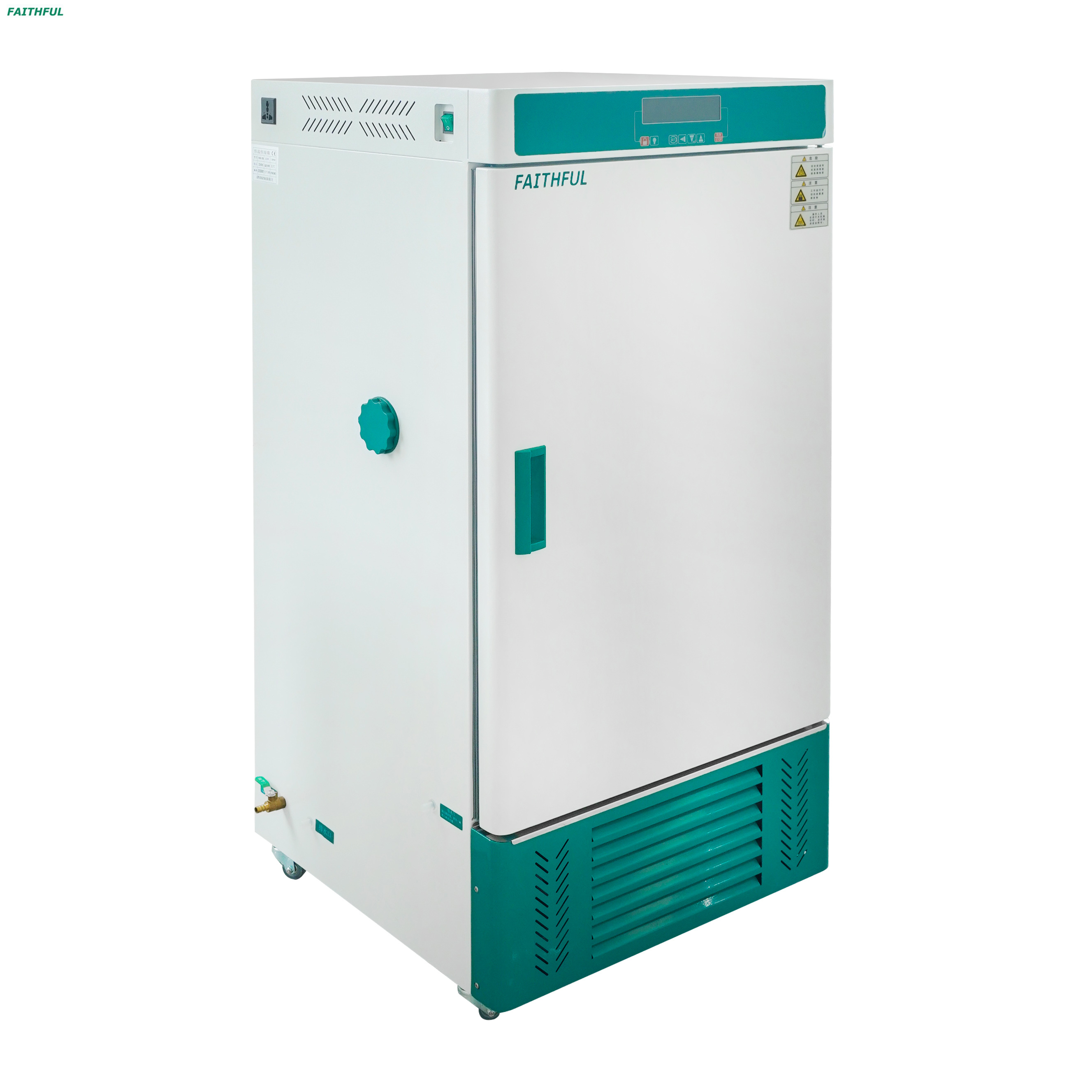

Mould Cultivation Cabinet

Constant temperature experiments and environmental tests for the need for humidity

Quantity:

Product Description:

1. Unique internal wind circulation, fan breeze circulation.

2. Large screen LCD intelligence PID, multi group data display on screen.

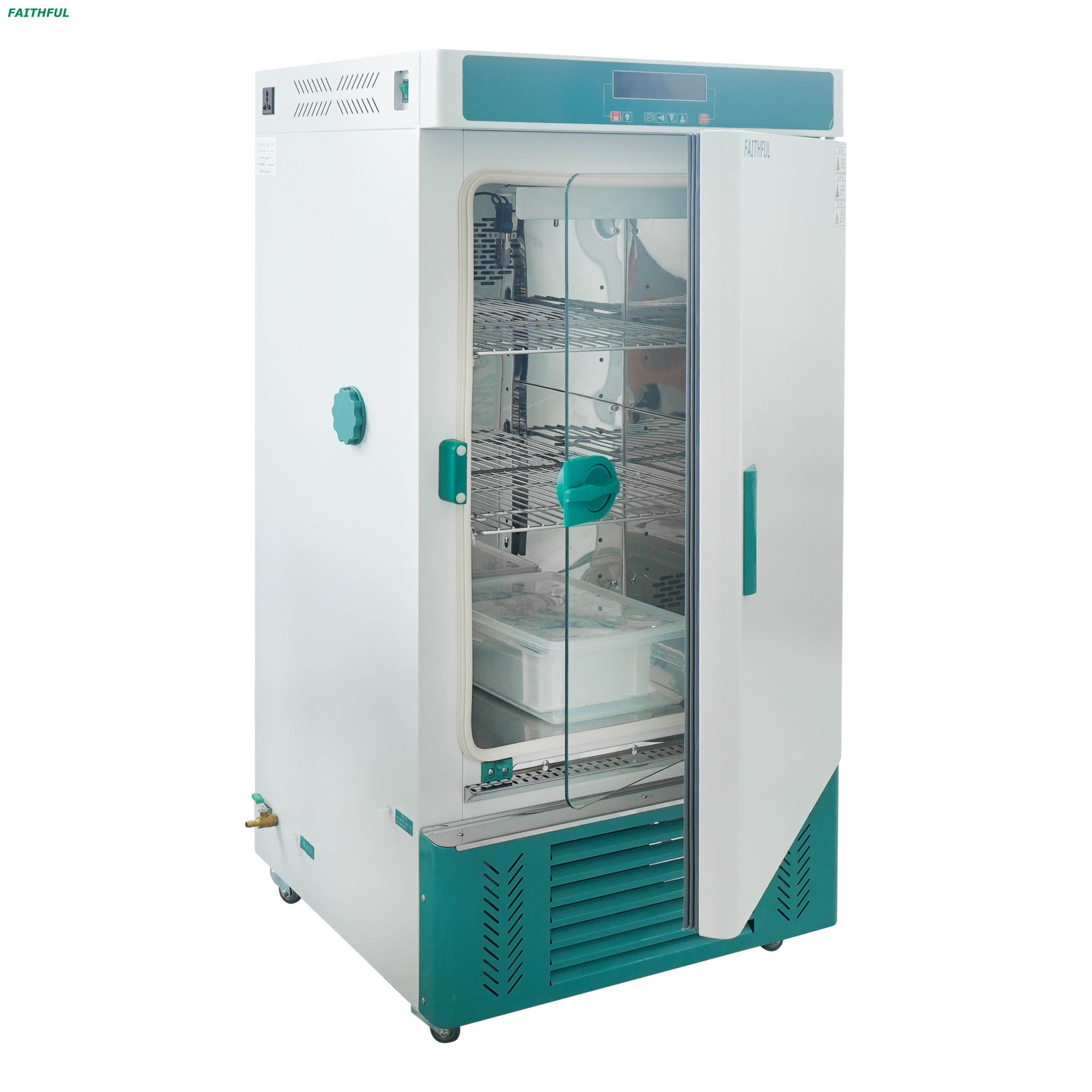

3. The double door structure, with high quality glass easy to observe the samples, the outer door with magnetic strip, good sealing.

4. The upgraded humidifying system has the advantages of small particles, good humidity uniformity and low water consumption


Bl model additional characteristics:

1. LCD display 30 stage programs control, ladder operation; Imported humidity sensor module, humidity automatic control, high precision.

2. Loop self diagnosis, sensor fault alarm


ModelMJX-70BLMJX-150BLMJX-250BL
Cycle ModeForced convection
FunctionTemp. rangeNo humidification065℃;
humidification
10 65
Temp. Resolution
Ratio
0.1℃
Temp. MotionHigh Temp.±0.5
Low Temp.
±1
Temp. Uniformity±1℃
Humidity Range50%~90%RH
Humidity Stability±5%RH
StructureInner ChamberMirror Sainless Steel
Outer ShellCold rolling steel electrostatic
spraying exterior
Insulation layerPolyurethane
HeaterStainless steel heater
Power rating1.8kW 2.0kW 2.2kW
Compressor Air cooled hermetic compressor
CryogenR134a
Defrost structureAutomatic control intelligent defrosting
Humidifying methodExternal
Test holeplastic test hole φ 43mm
Controlled external
power supply
Universal socket (one)
Temp. setting
mode
Touch button setting
Temp. display
mode
Measuring temperature: LCD upper row
 Setting temperature: the lower row
Humidity control
mode
Auto
Timer099.9h×30 Segment
with timing wait function
Operation FunctionFixed value operation、timing function,auto stop Program operation
SensorPT100
Humidity sensorHigh precision anti-condensation
Additional funcitonDeviation correction,
Menu key lock, Power failure parameter memory
 additional character
UV light, loop self diagnosis
Safety device

without temperature

Over temperature alarm

SpecificationInner Chamber size
(W*L*H)
(mm)
420*350
*500
500*500
*600
600*500
*840
Exterior size
(W*L*H)
(mm)
580*610
*1190
660*760
*1290
760*760
*1530
Packing size (W*L*H)(mm)708*716
*1368
788*866
*1468
888*866
*1708
Volume70L150L250L
Load per rack15kg
Shelf number91218
Shelf space35mm
Supply
50/60HzCurrent rating
AC220V/
2.3A
AC220V/
3.6A
AC220V/
5.5A
NW/GW (kg)69/9286/114100/139
 AccessoryShelf2
optional accessoriesShelf, Touch screen controller, RS485 interface,
Printer, Recorder, Remote control, Wireless
SMS alarm, USB data storage
