New Hot Plate

Quantity:

1. Aluminum hot plate or Graphite hot plate,uniform surface temperature

2. Heating up fast and uniform.

3. Plate temp. Uniformity improved more.


Model

SH-5

SH-8

SH-9

SH-5B

SH-8B

SH-9B

SH-II-5B

SH-II-8B

SH-II-9B

Function

Max Temp.
(℃)

SH-5,SH-8,SH-9: 320℃

SH-5B,SH-8B,SH-9B: 350℃

SH-II-5B,SH-II-8B,SH-II-9B: 400℃

Structure

Outer Shell

Iron plate welding, surface spraying

Hot plate

Aluminum tensile:  SH-5, SH-5B,SH-8,SH-8B, SH-9, SH-9B:

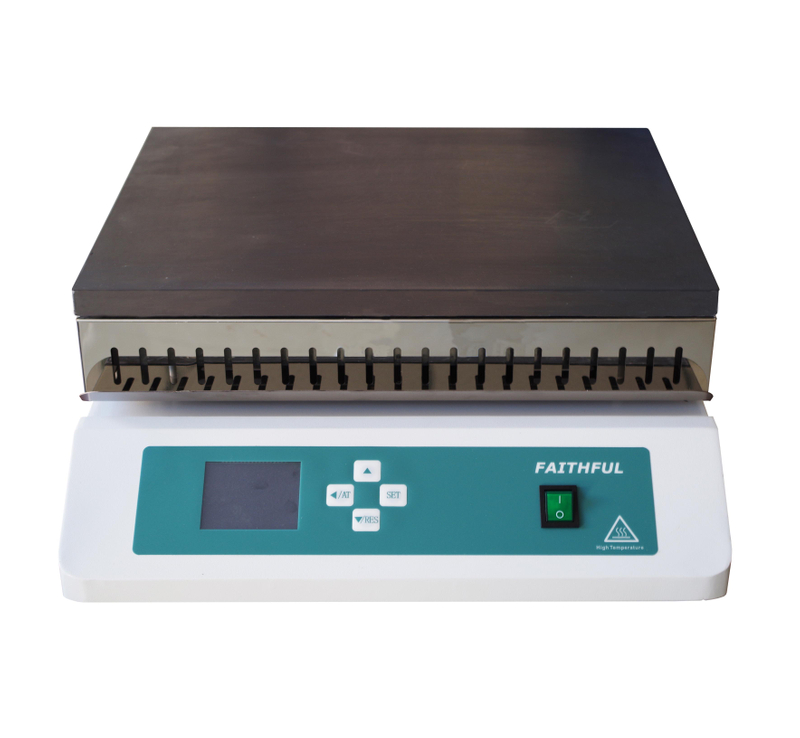

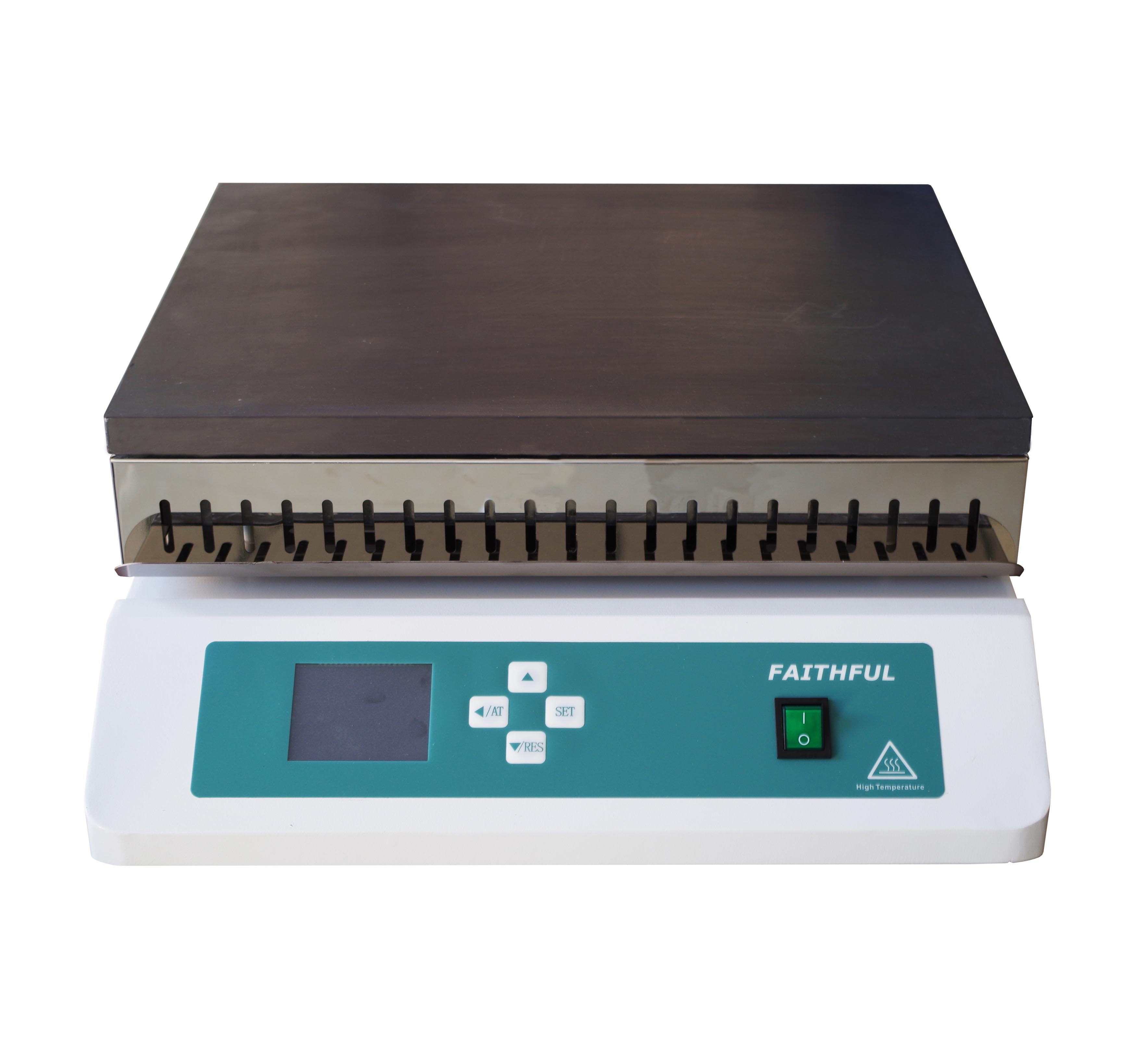

Graphite Plate: SH-II-5B, SH-II-8B,SH-II-9B:

Heating power(W)

SH-5: 800

SH-5B: 1200

SH-II-5B: 1800

SH-8: 1500

SH-8B: 2400

SH-II-8B: 3000

SH-9: 2200

SH-9B: 3500

SH-II-9B: 4500

Controller

Setting method

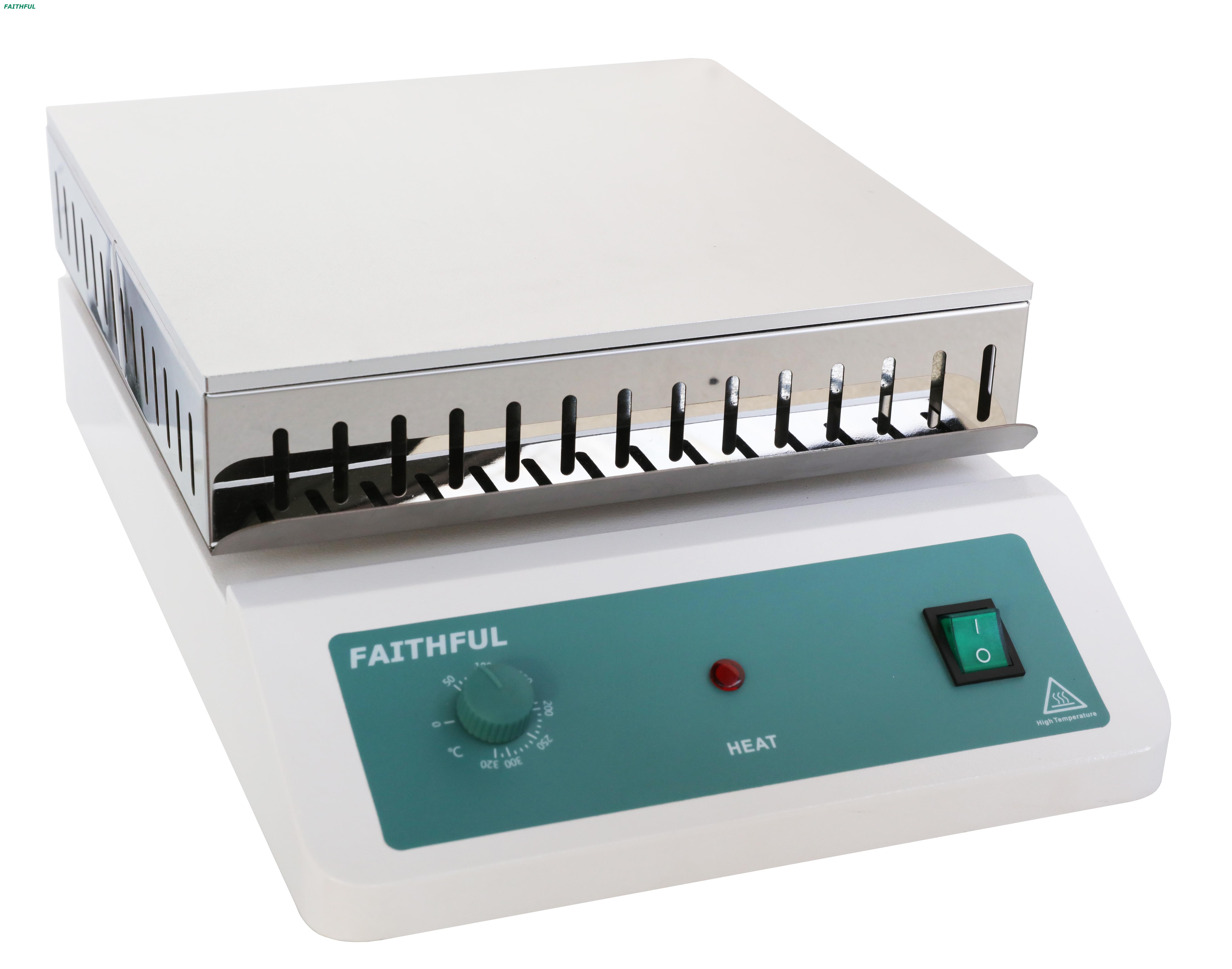

Scale: SH-5, SH-8, SH-9

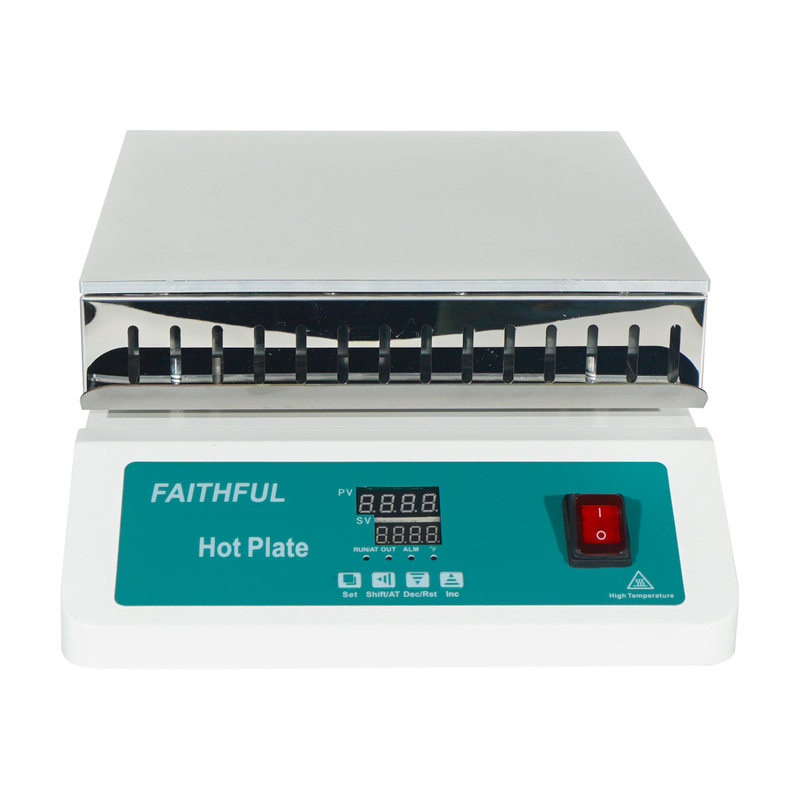

Digital: SH-5B,SH-8B,SH-9B, SH-II-5B, SH-II-8B, SH-II-9B

Timer

No / Digital

Temperature sensor

K model

Temp. accuracy

SH-5,SH-8,SH-9: ±10%

SH-5B,SH-8B,SH-9B,SH-II-5B,SH-II-8B,SH-II-9B: ±1%

Plate Temp. Uniformity

SH-5,SH-8,SH-9: ±15%

SH-5B,SH-8B,SH-9B,SH-II-5B,SH-II-8B,SH-II-9B: ±10%

Specification

Exterior size  (W*L*H) (mm)

 340*370*220

420*500*220

470*650*220

Packing size (W*L*H) (mm)

SH-5 / SH-5B: 520*380*250

SH-II-5B: 550*410*270

SH-8 / SH-8B: 560*520*250

SH-II-8B: 600*560*270

SH-9 / SH-9B: 660*620*250

SH-II-9B: 700*660*270

Plate size(mm)

 300*300

350*450

400*600

Plate load

 20KG

30KG

40KG

Power supply(50/60Hz)

220V

NW/GW (kg)

SH-5 / SH-5B: 9 /10

SH-II-5B: 12 /13.5

SH-8 /SH-8B: 11 /12

SH-II-8B: 19 /20

SH-9 / SH-9B: 15 /17

SH-II-9B: 28 / 30

Note: SH-9B, SH-II-9B: without plug.
