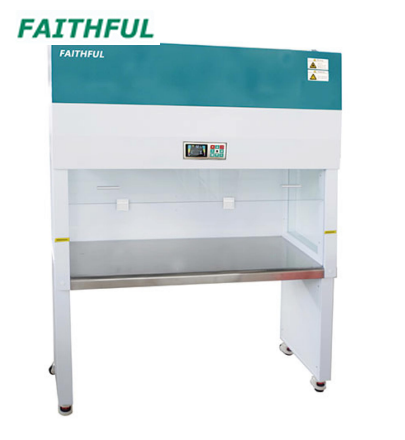

CJ-1DII,CJ-1SII,CJ-2DII,CJ-2SII,CJ-1DIII,CJ-1SIII,CJ-2DIII,CJ-2SIII
FAITHFUL
Product Description：
1.Vertical manifold and quasi- -closed 304 stainless steel table surface can effectively prevent external gas penetration into the operating clean area.
2. Centrifugal fan, stable speed, low noise, light touch air volume control system, five-stage wind speed control, speed 0.2- 0.6m/s adjustable, (initial: 0.6m/s; Final: 0.2m/s).
3. High quality air filter without partition, good purification effect.
4. LCD color screen controller (with sterilization timer, built -in socket instrument controllable switch, front window status display, can set three interlock，cumulative work timing, remote control).
5. CJ-1DIII,CJ-2DIII, CJ-1SIII, CJ-2SllI: wind speed sensor.
6. Automatic cutting off UV lamp function by opening glass.
Product Description：
1.Vertical manifold and quasi- -closed 304 stainless steel table surface can effectively prevent external gas penetration into the operating clean area.
2. Centrifugal fan, stable speed, low noise, light touch air volume control system, five-stage wind speed control, speed 0.2- 0.6m/s adjustable, (initial: 0.6m/s; Final: 0.2m/s).
3. High quality air filter without partition, good purification effect.
4. LCD color screen controller (with sterilization timer, built -in socket instrument controllable switch, front window status display, can set three interlock，cumulative work timing, remote control).
5. CJ-1DIII,CJ-2DIII, CJ-1SIII, CJ-2SllI: wind speed sensor.
6. Automatic cutting off UV lamp function by opening glass.
Model | CJ-1D II | CJ-1SII | CJ-2D II | CJ-2S II | |||
| CJ-1D III | CJ-1S III | CJ-2D III | CJ-2S III | ||||
Applicable Station | one operator one side | one operator two sides | two operators one side | two operators two sides | |||
Airflow Direction | Vertical | ||||||
Function | Cleanliness | Class 100 | |||||
Collection Efficiency | 0.3um particle ≥99.995% | ||||||
Colony Count | ≤0.5/vessel (petri dish is φ 90mm ) | ||||||
Wind Speed | initial: 0.6（m/s）,final：0.2 （m/s） | ||||||
Wind Speed Range | 0.2-0.6 （m/s） | ||||||
Noise Level | ≤62db | ||||||
Vibration Semi-Peak Value | ≤3um | ||||||
Illumination Intensity （Lx） | ≥500LX（Activity Center） | ||||||
Work Surface Bearing | 50kg | ||||||
Composition | Inner Chamber | SUS304 Stainless steel plate | |||||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
Operation door | Tempered Glass | ||||||
HEPA Filter （mm） | 900*640*50 one piece | 1300*640*50 one piece | |||||
Pre-Filter （mm） | 464*360*5 one piece | 712*360*5 one piece | |||||
Fluorescent Lamp | 16W*2 | 24W*2 | |||||
UV Lamp | 20W*1 | 30W*1 | |||||
Top Fan | 180W one piece | 180W two pieces | |||||
Rated power | 240W | 440W | |||||
Controller | Display | LCD color screen | |||||
Wind Speed Control | Intelligent multi-level adjustable | ||||||
Additional Function | Built in 2 multi-purpose sockets, high- efficiency filter, sterilization lamp replacement prompt, foot level adjustment, lighting sterilization one key on/ off | ||||||
Specification | Inner Size (W*L*H)(mm) | 920*690*650 | 920*690*650 | 1320*690*650 | 1320*690*650 | ||
Exterior Size (W*L*H)(mm) | 1060*763*1834 | 1060*763*1834 | 1460*763*1834 | 1460*763*1834 | |||
Packing Size (W*L*H)(mm) | 1210*885*1999 | 1210*885*1999 | 1610*885*1999 | 1610*885*1999 | |||
Max Power of universal socket | Single socket: 800W | ||||||
Current Rating （50/60Hz） | AC220V/1.8A | AC220V/3.6A | |||||
NW/GW kg | 160/200 | 165/205 | 200/250 | 205/255 | |||
Model | CJ-1D II | CJ-1SII | CJ-2D II | CJ-2S II | |||
| CJ-1D III | CJ-1S III | CJ-2D III | CJ-2S III | ||||
Applicable Station | one operator one side | one operator two sides | two operators one side | two operators two sides | |||
Airflow Direction | Vertical | ||||||
Function | Cleanliness | Class 100 | |||||
Collection Efficiency | 0.3um particle ≥99.995% | ||||||
Colony Count | ≤0.5/vessel (petri dish is φ 90mm ) | ||||||
Wind Speed | initial: 0.6（m/s）,final：0.2 （m/s） | ||||||
Wind Speed Range | 0.2-0.6 （m/s） | ||||||
Noise Level | ≤62db | ||||||
Vibration Semi-Peak Value | ≤3um | ||||||
Illumination Intensity （Lx） | ≥500LX（Activity Center） | ||||||
Work Surface Bearing | 50kg | ||||||
Composition | Inner Chamber | SUS304 Stainless steel plate | |||||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
Operation door | Tempered Glass | ||||||
HEPA Filter （mm） | 900*640*50 one piece | 1300*640*50 one piece | |||||
Pre-Filter （mm） | 464*360*5 one piece | 712*360*5 one piece | |||||
Fluorescent Lamp | 16W*2 | 24W*2 | |||||
UV Lamp | 20W*1 | 30W*1 | |||||
Top Fan | 180W one piece | 180W two pieces | |||||
Rated power | 240W | 440W | |||||
Controller | Display | LCD color screen | |||||
Wind Speed Control | Intelligent multi-level adjustable | ||||||
Additional Function | Built in 2 multi-purpose sockets, high- efficiency filter, sterilization lamp replacement prompt, foot level adjustment, lighting sterilization one key on/ off | ||||||
Specification | Inner Size (W*L*H)(mm) | 920*690*650 | 920*690*650 | 1320*690*650 | 1320*690*650 | ||
Exterior Size (W*L*H)(mm) | 1060*763*1834 | 1060*763*1834 | 1460*763*1834 | 1460*763*1834 | |||
Packing Size (W*L*H)(mm) | 1210*885*1999 | 1210*885*1999 | 1610*885*1999 | 1610*885*1999 | |||
Max Power of universal socket | Single socket: 800W | ||||||
Current Rating （50/60Hz） | AC220V/1.8A | AC220V/3.6A | |||||
NW/GW kg | 160/200 | 165/205 | 200/250 | 205/255 | |||
