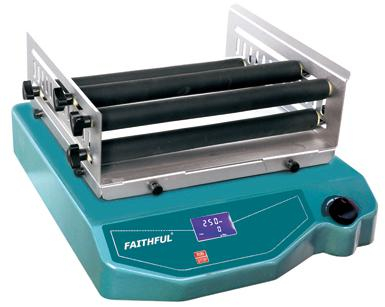

FBS-O10,FBS-O20
FAITHFUL
Product Description
1.Temperature setting, measuring, and running state show on one large LCD Screen, with Rotary Encoder switch.
2. The operating parameters can be remembered and protected. Automatically resume operation if the power supply cut off.
3. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control. Adjustable starting speed to prevent the splash of shake flask liquid.
Product Description
1.Temperature setting, measuring, and running state show on one large LCD Screen, with Rotary Encoder switch.
2. The operating parameters can be remembered and protected. Automatically resume operation if the power supply cut off.
3. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control. Adjustable starting speed to prevent the splash of shake flask liquid.
Model | FBS-O10 | FBS-O20 | |
Shaking Mode | Cyclotron oscillation | ||
Function | Amplitude | Φ10mm | φ20mm |
Rotary Speed range | 100~500 rpm | 30~250rpm | |
Rotary Speed Precision | ±1rpm | ||
Structure | Out Shell | ABS | |
Motor type | Brushless motor | ||
Tray | Anodizing Alluminum | ||
Driving mode | Four horizontal points | ||
Power rating | 0.03kW | ||
Controller | Cyclotron Control Mode | LCD, PID intelligent control | |
Cyclotron Setting Mode | Rotary coding switch | ||
Speed display Mode | LCD display | ||
Timer | 0~9999 min(with timing function) | ||
Operation function | Fixed value operation、timing function、bidirectional automatic switchover、auto stop、quick stop start | ||
Speed Sensor | Hoare | ||
Additional funciton | Deviation calibration, power-off memory | ||
Safety device | Intelligent low speed start, blocking protection | ||
Specification | Exterior size (W*L*H)(mm) | 365*450*222 | |
Packing size (W*L*H)(mm) | 470*550*325 | ||
Tray size (mm) | 320*320 | ||
Load per tray | ≤5kg | ||
Tray Number | 1 | ||
Supply(50/60Hz)Current rating | AC220V/0.14A | ||
NW/GW (kg) | 10/15 | ||
Optional Type | Universal spring grid tray | ||
Flask Clip Tray 250ml*9/500ml*4 |
Model | FBS-O10 | FBS-O20 | |
Shaking Mode | Cyclotron oscillation | ||
Function | Amplitude | Φ10mm | φ20mm |
Rotary Speed range | 100~500 rpm | 30~250rpm | |
Rotary Speed Precision | ±1rpm | ||
Structure | Out Shell | ABS | |
Motor type | Brushless motor | ||
Tray | Anodizing Alluminum | ||
Driving mode | Four horizontal points | ||
Power rating | 0.03kW | ||
Controller | Cyclotron Control Mode | LCD, PID intelligent control | |
Cyclotron Setting Mode | Rotary coding switch | ||
Speed display Mode | LCD display | ||
Timer | 0~9999 min(with timing function) | ||
Operation function | Fixed value operation、timing function、bidirectional automatic switchover、auto stop、quick stop start | ||
Speed Sensor | Hoare | ||
Additional funciton | Deviation calibration, power-off memory | ||
Safety device | Intelligent low speed start, blocking protection | ||
Specification | Exterior size (W*L*H)(mm) | 365*450*222 | |
Packing size (W*L*H)(mm) | 470*550*325 | ||
Tray size (mm) | 320*320 | ||
Load per tray | ≤5kg | ||
Tray Number | 1 | ||
Supply(50/60Hz)Current rating | AC220V/0.14A | ||
NW/GW (kg) | 10/15 | ||
Optional Type | Universal spring grid tray | ||
Flask Clip Tray 250ml*9/500ml*4 |
