Precision cooling  Incubator /Refrigerated Incubator/BOD Incubator
Home » Product » Lab Equipment » Incubator » Cooling  Incubator » Precision cooling  Incubator /Refrigerated Incubator/BOD Incubator

Product Classification

Contact Us

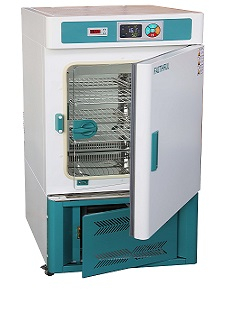

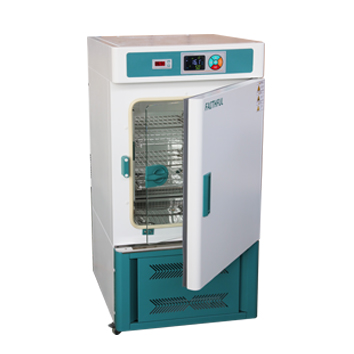

Precision cooling  Incubator /Refrigerated Incubator/BOD Incubator

Various constant temperature experiments and environmental tests at 0~65 C, water analysis, microbe culture of BOD/ bacteria, plant breeding, and sample preservation

Quantity:

Product Description:

1.Unique internal wind circulation structure design, fan breeze circulation.

2. The double door structure, with high quality glass easy to observe the samples, the outer door with magnetic strip, good sealing.

3. Colour LCD display  and 30-stage program temperature control, double evaporators and automatic control intelligent defrosting to ensure long-term operating without defrost. Standard independent temperature limiter, double protection for test safety.

BL model additional characteristics:

1.5.0 inch touch display 30-stage program control, round move, ladder operating.

2.Sensor failure alarm.


ModelSPX-70BIVSPX-150BIVSPX-250BIV
SPX-70BLSPX-150BLSPX-250BL
Cycle ModeForced convection
FunctionTemp. range0~65℃
Temp. Resolution Ratio0.1℃
Temp. MotionHigh Temp.:±0.5℃      Low Temp.:±1℃
Temp. Uniformity±1℃
StructureInner ChamberMirror Sainless Steel
Outer ShellCold rolling steel electrostatic spraying exterior
Insulation layerPolyurethane
HeaterStainless steel heater
Power rating0.8kW1.0kW 1.2kW
CompressorAir cooled hermetic compressor
CryogenR134a
Defrost structureAutomatic control intelligent defrosting
Test hole43mm
Controlled external power supplyUniversal socket (one)
Temp.Control modeBIV:Color screen LCD program  BL:5.0 inch touch screen
Temp. setting modeTouch button setting
Temp. display modeMeasuring temperature: LCD upper screen; setting temperature: the lower row
Timer0~99.9h×30 Segment
Operation functionProgram operation
SensorPT100
Additional funcitonBIV model:LED light, Deviation correction, Menu key lock, Power failure parameter memory
BL model additional character: loop self diagnosis
 Safety deviceOver temperature alarm, digital  temperature limiter
SpecificationInner Chamber size(W*L*H)(mm)420*350*500 500*500*600600*500*840
Exterior size (W*L*H)(mm)580*610*1190660*760*1290760*760*1530
Packing size (W*L*H)(mm)708*716*1368788*866*1468888*866*1708
Volume70L150L250L
Load per rack15kg
Shelf number91218
Shelf space35mm
Power Supply Current ratingAC220V/2.3AAC220V/3.6AAC220V/5.5A
NW/GW (kg)69/9286/114100/139
Shelf2
optional accessoriesShelf, Touch screen controller, RS485 interface, Printer, Recorder, Remote control, Wireless SMS alarm, USB data storage


CE for Incubator LVD.jpg
