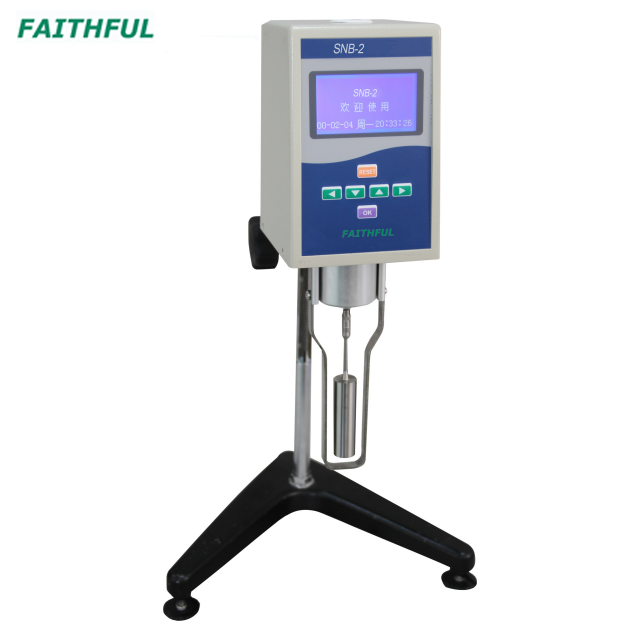

SNB-1,SNB-2
FAITHFUL
This device adopts advanced machine design. manufacturing technology and micro-computer control technology. Blue Ken light and high brightness LCD display are selected for correct data acquisition display,and the data display is clear.
This device adopts advanced machine design. manufacturing technology and micro-computer control technology. Blue Ken light and high brightness LCD display are selected for correct data acquisition display,and the data display is clear.
| Model | SNB-1 | SNB-2 |
Measuring Range | 1~1×105mPa.s | 1~2×106mPa.s |
| mPa.s | mPa.s | |
| Rotor Specification | Standard Rotor NO. 1-4 | Standard Rotor NO. 1-4 |

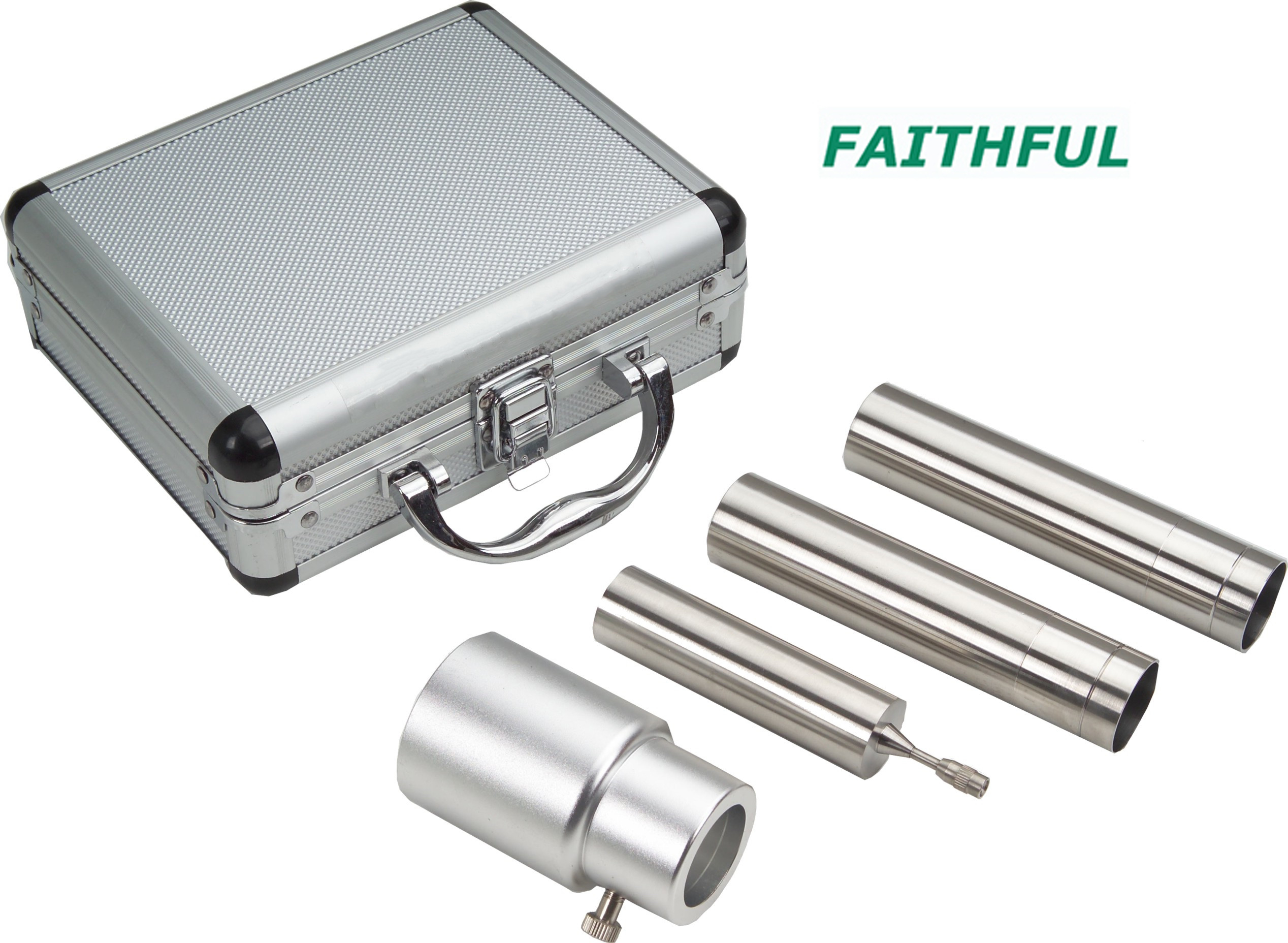

| Rotor No.0 can be selected to measure low viscosity to 0.1~10mPa.s | Rotor No.0 can be selected to measure low viscosity to 0.1~10mPa.s | |
| Rotor Speed | 0.3、0.6、1.5、3 | 0.3、0.6、1.5、3 |
| (transfer/score) | 6、12、30、60 | 6、12、30、60 |
| PC Interface | Standard | Standard |
| Temperature Sensor Interface | Standard | Standard |
| Printer Interface | √ | √ |
| Automatic stop of single measurement | When the measurement reasults are stable, the rotor stops automatically. | When the measurement reasults are stable, the rotor stops automatically. |
| Measurement Accuracy | ±2%（Newton Liquid） | ±2%（Newton Liquid） |
| Power Supply | 220V ±10% 50Hz±10% | 220V ±10% 50Hz±10% |
| Work Environment | The relative humidity is not more than 80% when the temperature is 5~35℃. | The relative humidity is not more than 80% when the temperature is 5~35℃. |
| Outline Size | 280*320*390mm | 380*320*390mm |
| Net Weight | 4.5kg | 4.5kg |
| Model | SNB-1 | SNB-2 |
Measuring Range | 1~1×105mPa.s | 1~2×106mPa.s |
| mPa.s | mPa.s | |
| Rotor Specification | Standard Rotor NO. 1-4 | Standard Rotor NO. 1-4 |
| Rotor No.0 can be selected to measure low viscosity to 0.1~10mPa.s | Rotor No.0 can be selected to measure low viscosity to 0.1~10mPa.s | |
| Rotor Speed | 0.3、0.6、1.5、3 | 0.3、0.6、1.5、3 |
| (transfer/score) | 6、12、30、60 | 6、12、30、60 |
| PC Interface | Standard | Standard |
| Temperature Sensor Interface | Standard | Standard |
| Printer Interface | √ | √ |
| Automatic stop of single measurement | When the measurement reasults are stable, the rotor stops automatically. | When the measurement reasults are stable, the rotor stops automatically. |
| Measurement Accuracy | ±2%（Newton Liquid） | ±2%（Newton Liquid） |
| Power Supply | 220V ±10% 50Hz±10% | 220V ±10% 50Hz±10% |
| Work Environment | The relative humidity is not more than 80% when the temperature is 5~35℃. | The relative humidity is not more than 80% when the temperature is 5~35℃. |
| Outline Size | 280*320*390mm | 380*320*390mm |
| Net Weight | 4.5kg | 4.5kg |
