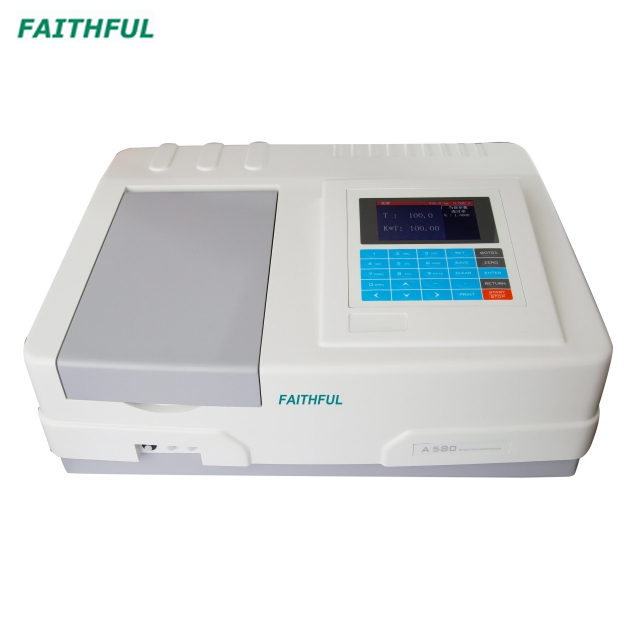

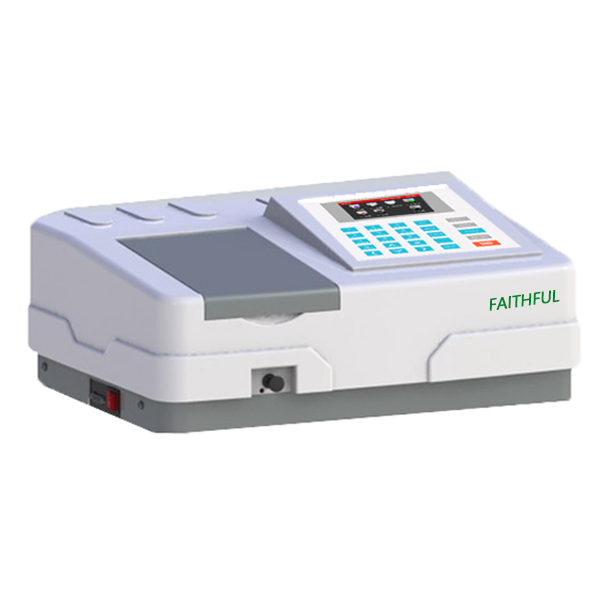

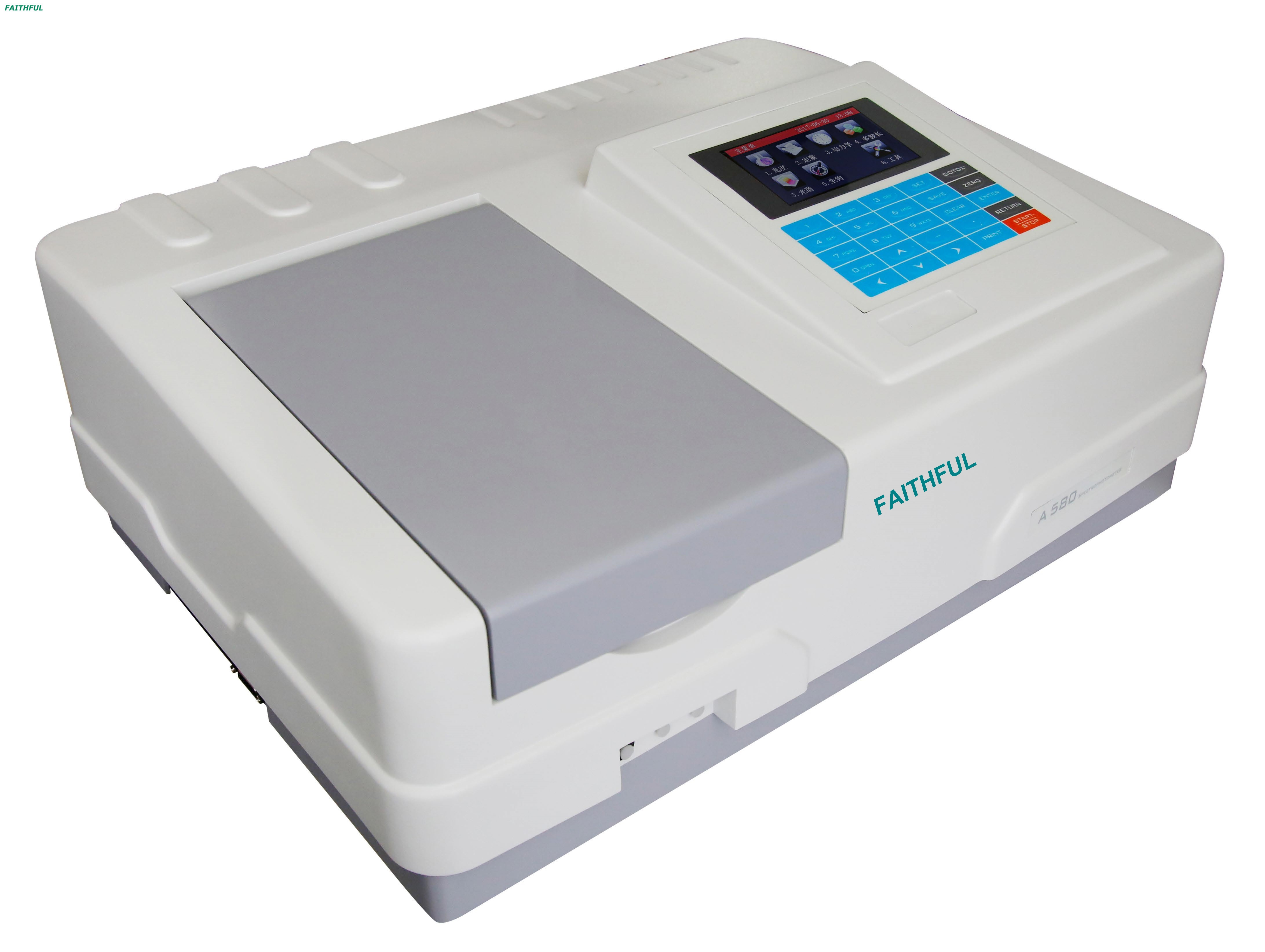

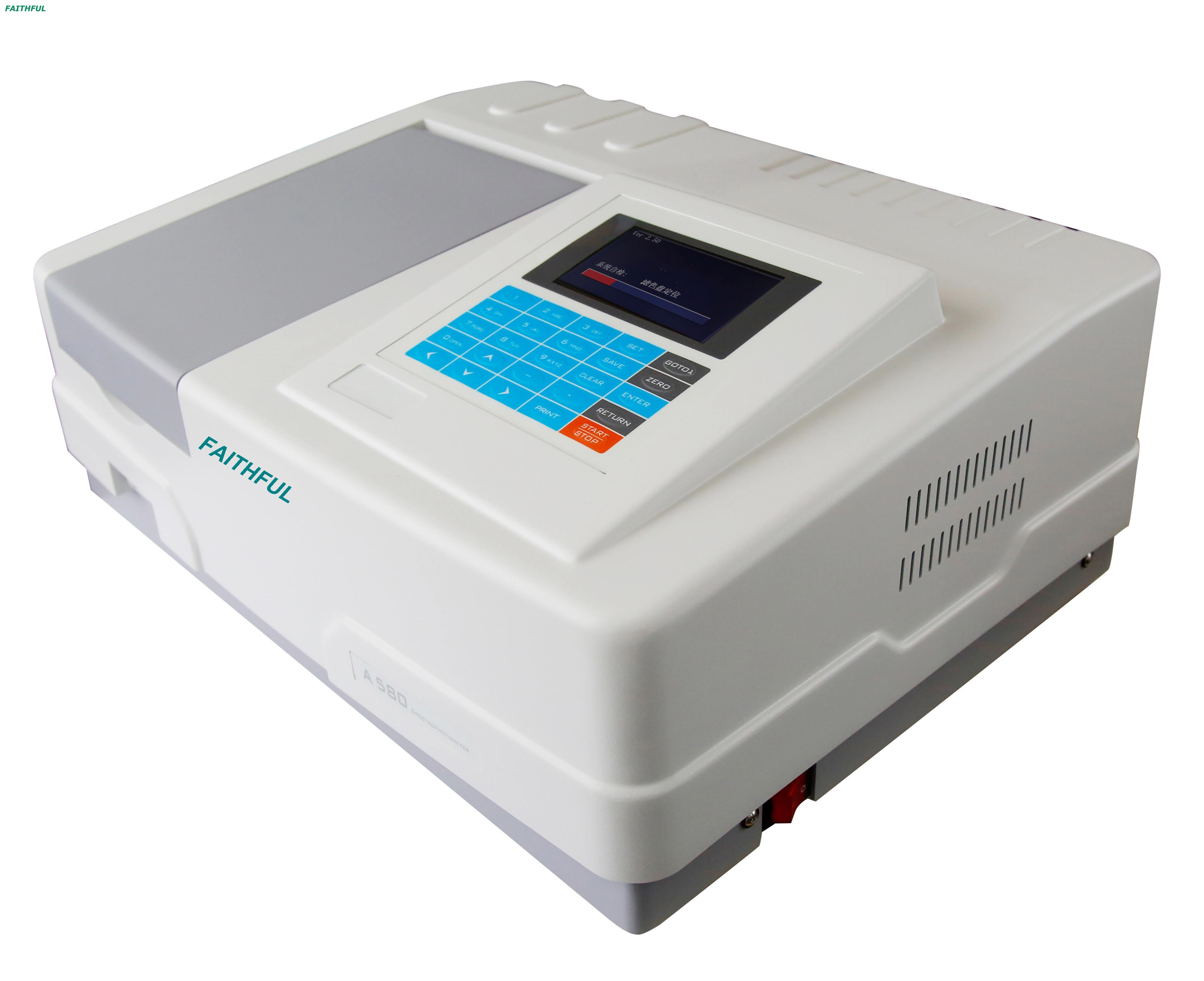

FA560,FA580,FA590,
FAITHFUL
LCD display
Long life and Environmental Deuterium lamp andtungsten lamp
Data can be exported to U disk
Connect printer for printing.High performance grating with High - precision opticalsystem design.
Pre-aligned design ensures the user can change lamps conveniently
With GLP self- check function.
With Si02 coating optical mirror, reducing the pollution from outside fully
LCD display
Long life and Environmental Deuterium lamp andtungsten lamp
Data can be exported to U disk
Connect printer for printing.High performance grating with High - precision opticalsystem design.
Pre-aligned design ensures the user can change lamps conveniently
With GLP self- check function.
With Si02 coating optical mirror, reducing the pollution from outside fully
Model | FA560 FA560PC | FA580 FA580PC | FA590 FA590PC |
Optical System | Double Beam,Grating 1200 lines/mm | ||
Wavelength Range | 190-1100nm | ||
Spectral Bandwidth | 1.8nm | 1nm | 0.5,1,2,4,5nm |
Wavelength Accuracy | ±0.3nm | ||
Wavelength Repeatability | ≤0.2nm | ||
Photometric Accuracy | ±0.002A(0-0.5Abs), ±0.004A(0.5-1.0Abs), ±0.3%T(0-100%T) | ||
Photometric Repeatability | 0.001Abs(0-0.5Abs) 0.002Abs(0.5-1.0Abs) ≤0.1%T(0-100% T) | ||
Stray Light | ≤0.03%T@360nm;220nm | ||
Stability | ±0.0003A/h@500nm | ||
Baseline Flatness | ±0.0005A | ||
Noise | 0.0002Abs | ||
Display | 65 thousand ture color 7 inch TFT LCD (480*480) | ||
Photometric Mode | T,A,C,E | ||
Photometric Range | 0-200%T,-0.301-3.0A | ||
Detector | Silicon Photodiode | ||
Light Source | Deuterium Lamp,Tungsten Lamp | ||
Input | Membrane Keypad | ||
Output | USB-A*2Print and data output USB-B Connect PC | ||
Compartment | Optional 8 Auto Cell holder, Solid Sample Holder,Micro Cell Holder, 10-100mm Cell Holder |
Model | FA560 FA560PC | FA580 FA580PC | FA590 FA590PC |
Optical System | Double Beam,Grating 1200 lines/mm | ||
Wavelength Range | 190-1100nm | ||
Spectral Bandwidth | 1.8nm | 1nm | 0.5,1,2,4,5nm |
Wavelength Accuracy | ±0.3nm | ||
Wavelength Repeatability | ≤0.2nm | ||
Photometric Accuracy | ±0.002A(0-0.5Abs), ±0.004A(0.5-1.0Abs), ±0.3%T(0-100%T) | ||
Photometric Repeatability | 0.001Abs(0-0.5Abs) 0.002Abs(0.5-1.0Abs) ≤0.1%T(0-100% T) | ||
Stray Light | ≤0.03%T@360nm;220nm | ||
Stability | ±0.0003A/h@500nm | ||
Baseline Flatness | ±0.0005A | ||
Noise | 0.0002Abs | ||
Display | 65 thousand ture color 7 inch TFT LCD (480*480) | ||
Photometric Mode | T,A,C,E | ||
Photometric Range | 0-200%T,-0.301-3.0A | ||
Detector | Silicon Photodiode | ||
Light Source | Deuterium Lamp,Tungsten Lamp | ||
Input | Membrane Keypad | ||
Output | USB-A*2Print and data output USB-B Connect PC | ||
Compartment | Optional 8 Auto Cell holder, Solid Sample Holder,Micro Cell Holder, 10-100mm Cell Holder |
