FUV-1000,FUV-1200,FV-1000,FV-1200
FAITHFUL
Features:

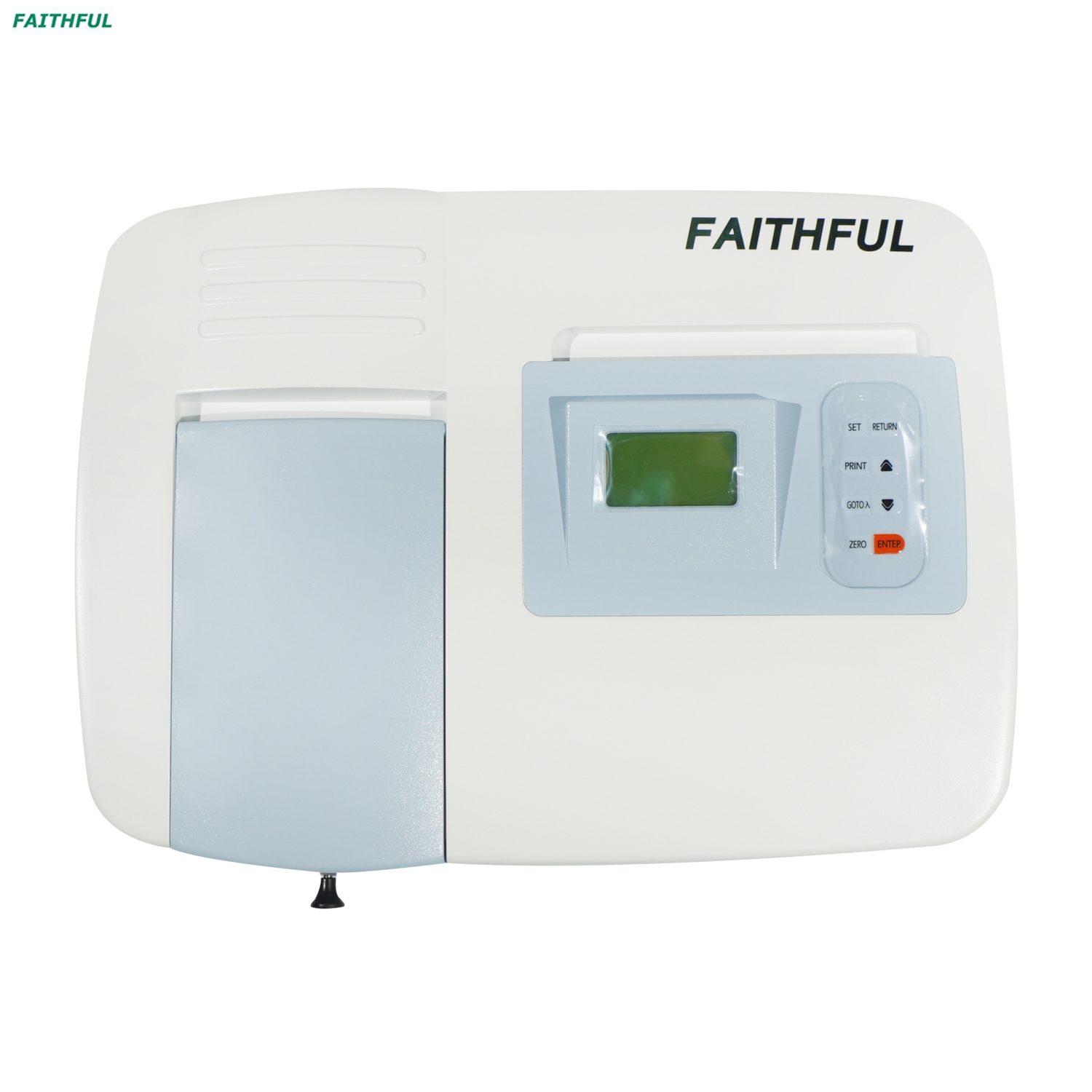

1.Large LCD screen (128*64 Dots)with saving standard curvr function
2.Imported&Environmental Deuterium lamp,preventing from Ozone inhalation
3.Adopted high-class grating with wholly heremetic light path design,
to ensure the instrument has the super low stray light.
4.Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
5.Pre-aligned design ensures the user can change lamps conveniently.
6.Wavelength calibration,wavelength setting,change lamp conveniently.
7.With SiO2 coating optical mirror,reducing the pollution from outside fully
8.Optional PC Software to expand the applications to Quantitative,Multi-Wavelength and Kinetics.
9.Widely used for Organic chemistry,Inorganic chemistry,Life sciences,foods,Medicine and health,
Agriculture,Geology,Metallurgy and Environment etc. fields.
Features:
1.Large LCD screen (128*64 Dots)with saving standard curvr function
2.Imported&Environmental Deuterium lamp,preventing from Ozone inhalation
3.Adopted high-class grating with wholly heremetic light path design,
to ensure the instrument has the super low stray light.
4.Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
5.Pre-aligned design ensures the user can change lamps conveniently.
6.Wavelength calibration,wavelength setting,change lamp conveniently.
7.With SiO2 coating optical mirror,reducing the pollution from outside fully
8.Optional PC Software to expand the applications to Quantitative,Multi-Wavelength and Kinetics.
9.Widely used for Organic chemistry,Inorganic chemistry,Life sciences,foods,Medicine and health,
Agriculture,Geology,Metallurgy and Environment etc. fields.
Model | FUV-1000 | FV-1000 | FUV-1200 | FV-1200 |
Optical System | Single Beam,Grating 1200 lines/mm | |||
Wavelength Range | 200-1100nm | 325-1100nm | 195-1100nm | 320-1100nm |
Spectral Bandwidth | 4.0nm or 2.0nm | |||
Wavelength Accuracy | ±1.8nm | ±1.0nm | ||
Wavelength Repeatability | ≤0.5nm | |||
Photometric Accuracy | ±0.002A(0-0.5Abs),±0.004A(0.5-1.0Abs),±0.5%T(0-100%T) | |||
Photometric Repeatability | 0.001 Abs (0-0.5Abs),0.002Abs(0.5--1.0Abs),≤0.2%T(0-100%T) | |||
Stray Light | S0.2%T@360nm;220nm(UV) | |||
Stability | ±0.002A/h @500nm | |||
Noise | ±0.001A | |||
Display | 128*64 Dots LCD | |||
Photometric Mode | T,A,C,E | |||
Photometric Range | 0-200%T,-0.301-3.0A | |||
Detector | Silicon Photo diode | |||
Light Source | Deuterium Lamp,Tungsten Lamp | |||
Input | Membrane Keypad | |||
Output | Parallel Print ,USB -B | |||
Compartment | Solid Sample Holder,Micro Cell Holder,10-100mm Cell Holder |
Model | FUV-1000 | FV-1000 | FUV-1200 | FV-1200 |
Optical System | Single Beam,Grating 1200 lines/mm | |||
Wavelength Range | 200-1100nm | 325-1100nm | 195-1100nm | 320-1100nm |
Spectral Bandwidth | 4.0nm or 2.0nm | |||
Wavelength Accuracy | ±1.8nm | ±1.0nm | ||
Wavelength Repeatability | ≤0.5nm | |||
Photometric Accuracy | ±0.002A(0-0.5Abs),±0.004A(0.5-1.0Abs),±0.5%T(0-100%T) | |||
Photometric Repeatability | 0.001 Abs (0-0.5Abs),0.002Abs(0.5--1.0Abs),≤0.2%T(0-100%T) | |||
Stray Light | S0.2%T@360nm;220nm(UV) | |||
Stability | ±0.002A/h @500nm | |||
Noise | ±0.001A | |||
Display | 128*64 Dots LCD | |||
Photometric Mode | T,A,C,E | |||
Photometric Range | 0-200%T,-0.301-3.0A | |||
Detector | Silicon Photo diode | |||
Light Source | Deuterium Lamp,Tungsten Lamp | |||
Input | Membrane Keypad | |||
Output | Parallel Print ,USB -B | |||
Compartment | Solid Sample Holder,Micro Cell Holder,10-100mm Cell Holder |
