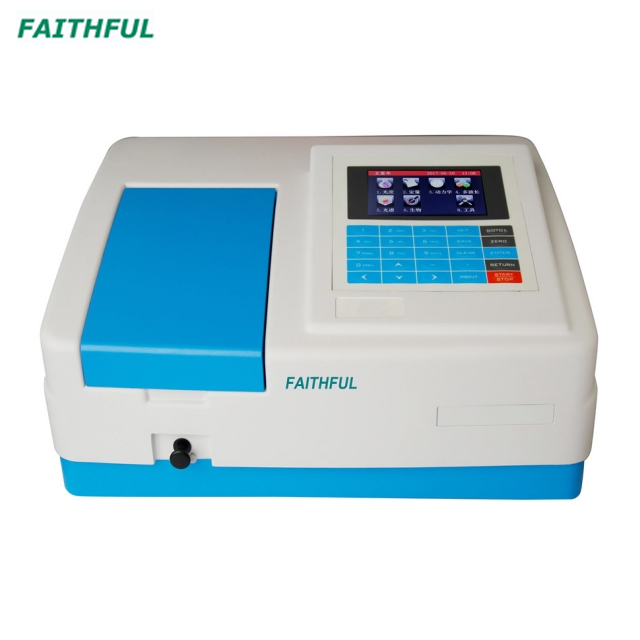

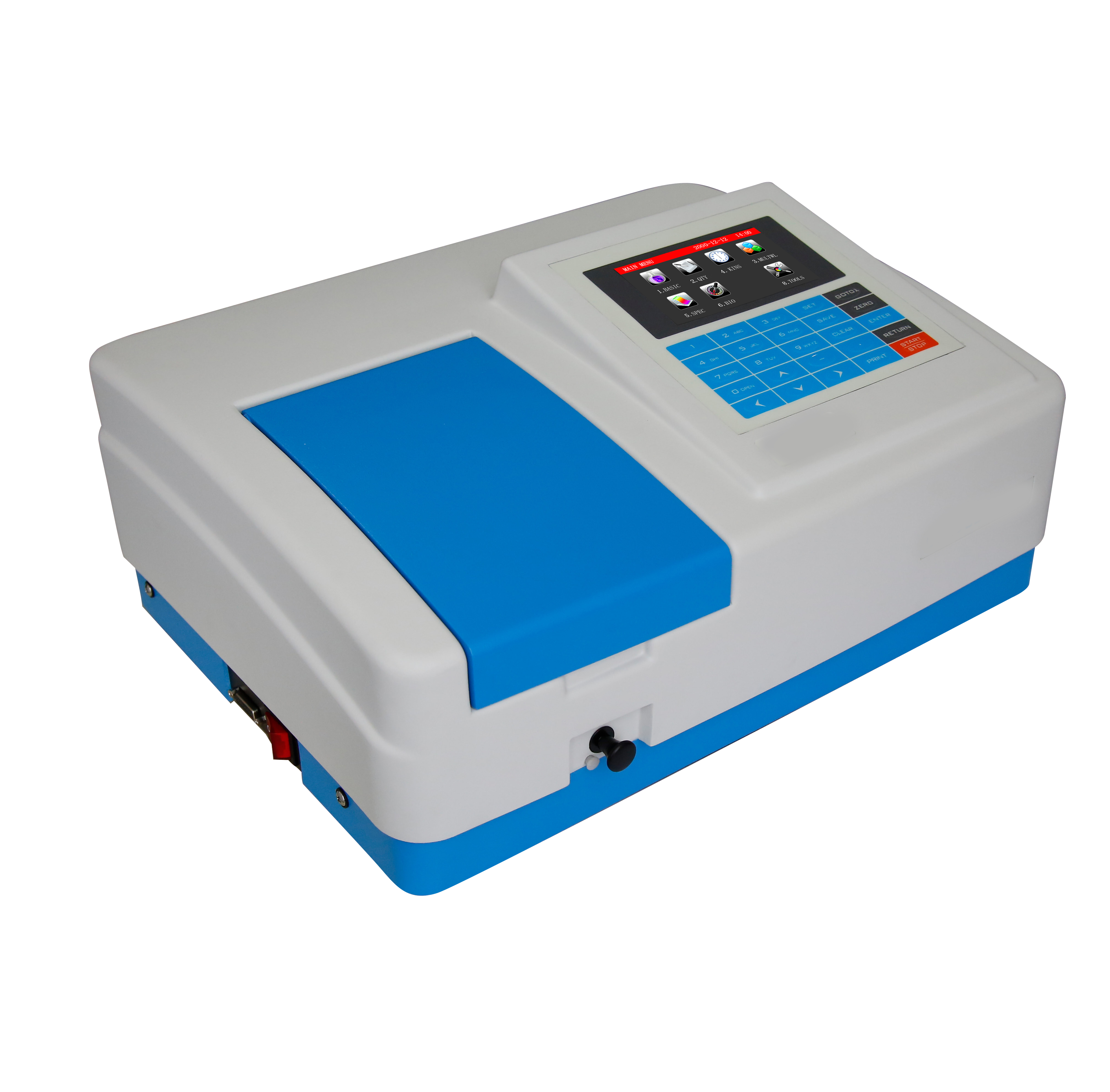

FUV-1900, FUV-1900PC, FV-1900,FV-1900PC
FAITHFUL
1.Large LCD screen (480*272 Dots) with 65 thousand true color and support U disk data saving
2.Imported&Environmental Deuterium lamp,preventing from Ozone inhalation
3.Data output:Data can be exported to U disk (USB Output)
4.Print port:Instrument can connect PCL printer for printing A4 paper(USB Port)
5.Adopted high-class grating with wholly hermetic light path design,to ensure the instrument has the super low stray light.
6.Upgrade package can be downloaded from AOE web with S/N,support U disk one -key upgrade
7.Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
8.Pre-aligned design ensures the user can change lamps conveniently
9.Wiht GLP self-check function,check the wavelength accuracy and Photometry accuracy,can provide test report and power-off protection
10.Wavelength calibration,wavelength setting,change lamp source and dark current calibration automatically
11.With SiO2 coating optical mirror,reducing the pollution from outside fully
1.Large LCD screen (480*272 Dots) with 65 thousand true color and support U disk data saving
2.Imported&Environmental Deuterium lamp,preventing from Ozone inhalation
3.Data output:Data can be exported to U disk (USB Output)
4.Print port:Instrument can connect PCL printer for printing A4 paper(USB Port)
5.Adopted high-class grating with wholly hermetic light path design,to ensure the instrument has the super low stray light.
6.Upgrade package can be downloaded from AOE web with S/N,support U disk one -key upgrade
7.Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
8.Pre-aligned design ensures the user can change lamps conveniently
9.Wiht GLP self-check function,check the wavelength accuracy and Photometry accuracy,can provide test report and power-off protection
10.Wavelength calibration,wavelength setting,change lamp source and dark current calibration automatically
11.With SiO2 coating optical mirror,reducing the pollution from outside fully
Model | FUV-1900/FUV-1900PC | FV1900/FV-1900PC | ||
Optical System | Single Beam,Grating 1200 lines/mm | |||
Wavelength Range | 190-1100nm | 320-1100nm | ||
Spectral Bandwidth | 2nm | |||
Wavelength Accuracy | ±0.5nm | |||
Wavelength Repeatability | ≤0.2nm | |||
Photometric Accuracy | ±0.002A (0-0.5Abs),±0.004A(0.5-1.0Abs),±0.5%T(0-100%T) | |||
Photometric Repeatability | 0.001 Abs (0-0.5Abs),0.002Abs(0.5-1.0Abs),≤0.2%T(0-100%T) | |||
Stray Light | ≤0.04%T @360nm;220nm | |||
Stability | ±0.001A/h @500nm | |||
Baseline Flatness | ±0.002A | |||
Noise | 0.0005Abs @500nm | |||
Display | 480 *27265 thousand true colorTFT LCD | |||
Photometric Mode | T.A.C,E | |||
Photometric Range | 0--200%T,-0.301-3.0A | |||
Detector | Silicon Photodiode | |||
Light Source | Deuterium Lamp,Tungsten Lamp | |||
Input | Membrane Keypad | |||
Output | USB-A*2 Print and data output USB-B Connect PC | |||
Compartment Optional | 8 Auto Cell holder,Solid Sample Holder,Micro Cell Holder,100mm Cell Holder |
Model | FUV-1900/FUV-1900PC | FV1900/FV-1900PC | ||
Optical System | Single Beam,Grating 1200 lines/mm | |||
Wavelength Range | 190-1100nm | 320-1100nm | ||
Spectral Bandwidth | 2nm | |||
Wavelength Accuracy | ±0.5nm | |||
Wavelength Repeatability | ≤0.2nm | |||
Photometric Accuracy | ±0.002A (0-0.5Abs),±0.004A(0.5-1.0Abs),±0.5%T(0-100%T) | |||
Photometric Repeatability | 0.001 Abs (0-0.5Abs),0.002Abs(0.5-1.0Abs),≤0.2%T(0-100%T) | |||
Stray Light | ≤0.04%T @360nm;220nm | |||
Stability | ±0.001A/h @500nm | |||
Baseline Flatness | ±0.002A | |||
Noise | 0.0005Abs @500nm | |||
Display | 480 *27265 thousand true colorTFT LCD | |||
Photometric Mode | T.A.C,E | |||
Photometric Range | 0--200%T,-0.301-3.0A | |||
Detector | Silicon Photodiode | |||
Light Source | Deuterium Lamp,Tungsten Lamp | |||
Input | Membrane Keypad | |||
Output | USB-A*2 Print and data output USB-B Connect PC | |||
Compartment Optional | 8 Auto Cell holder,Solid Sample Holder,Micro Cell Holder,100mm Cell Holder |
