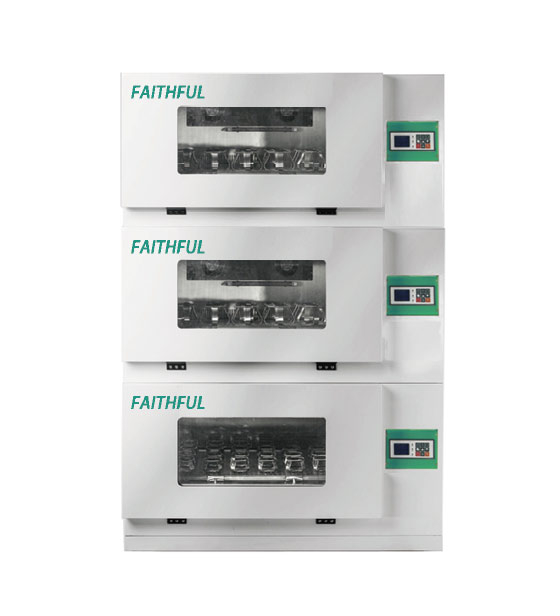

FSI-280NC;FSI-280N;FSI-150NC; FSI-150N
FAITHFUL
1、Three layers to offer the Max . using space .
2、280 model open the door up and down ; 150 model open the door for left and right .
3、High precision PID microcomputer intelligent temperature control system .
4、Multi-Dimensional integration eccentric drive , operate smooth , stable , durable and safe .
5、Multi-stage speed , temperature and time control system . Can set different speed , temperature and time in one time , automatic change operating mode during working .
6、Inner humidifying plate , achieve natural humidification . ( optional )
7、Inner deflector-type waterproof system to protect motor damage from bottome breaking and liquid leaking , and no need to clean with special tools .
8、Flush the bottom of the inner chamber all-around without dead ends
9、Equipped with high quality servo motor , high speed precision , good high and low speed performance and stability .
10、High quality imported compressor , Non-CFC refrigeration system that comply with the international environmental requirements , low noise and good refrigeration effect , ensure device to work stably under low temperature .
11、LCD display temperature , time and speed on same screen .
12、Three rotation mode for chose positive rotation , inversion reciprocal and mutual conversion .
1、Three layers to offer the Max . using space .
2、280 model open the door up and down ; 150 model open the door for left and right .
3、High precision PID microcomputer intelligent temperature control system .
4、Multi-Dimensional integration eccentric drive , operate smooth , stable , durable and safe .
5、Multi-stage speed , temperature and time control system . Can set different speed , temperature and time in one time , automatic change operating mode during working .
6、Inner humidifying plate , achieve natural humidification . ( optional )
7、Inner deflector-type waterproof system to protect motor damage from bottome breaking and liquid leaking , and no need to clean with special tools .
8、Flush the bottom of the inner chamber all-around without dead ends
9、Equipped with high quality servo motor , high speed precision , good high and low speed performance and stability .
10、High quality imported compressor , Non-CFC refrigeration system that comply with the international environmental requirements , low noise and good refrigeration effect , ensure device to work stably under low temperature .
11、LCD display temperature , time and speed on same screen .
12、Three rotation mode for chose positive rotation , inversion reciprocal and mutual conversion .
Name | Stacked Constant Temperature Shaker (LCD) | |||
Model | FSI-280NC | FSI-280N | FSI-150NC | FSI-150N |
Control Mode | PID Microcomputer Processing Chip | |||
Cycle Mode | Forced Air Convection | |||
Oscillation Mode | Cyclotron Oscillation | |||
Display Mode | LCD Display | |||
USB Data Download System | Yes | |||
Control System | Standard Mode;Continuous Mode;Programable Mode(multi-stage temperature,speed and time control) | |||
Rotary Speed Range(rpm/min) | 0, 20-350(Top Tray 20-300,Static Cultivate, Positive And Negative Rotation) | |||
Rotary Accuracy(rpm) | ±1 | |||
Amplitude(mm) | Φ26 | |||
Max Capacity (clamp) | 250ml x 60 or 500ml x 40 or 1L x 20 or 2L x 11(each unit) | 250ml x 25 or 500ml x 16 or 1L x 9 or 2L x 5 or 3L x 5 or 5L x 4( each unit) | ||
Max Capacity (stick mat) | 250ml x 55 or 500ml x 33 or 1L x 8 or 2L x 15( each unit) | 250ml x 25 or 500ml x 16 or 1 x 9 or 2L x 5 or 3L x 4 or 5L x 2( each unit) | ||
Standard Configuration | 500ml x 33 | 500ml x 16 | ||
Plate Size(mm) | 830 x 510 | 475 x 465 | ||
Timer Range(h/min) | 0-9999 (with timing function,continuous operating) | |||
Temp.Range(℃) | 4-65 (25℃) | RT+10-65 | 4-65 (25℃) | RT+10-65 |
Temperature Accuracy(℃) | ±0.1 | |||
Temperature Uniformity(℃) | Effective Working Area) | |||
Temperature Motion(℃) | ≤0.1(37℃) | |||
Tray Number | 2 pieces | |||
External Size(mm) | 1360 x 830 x 620 | 870 x 755 x 1300 | ||
Capacity(L) | 280 | 150 | ||
Power(W) | 1800 | 1600 | 650 | 550 |
Power Supply | AC220±10% 50-60HZ | |||
Ambient Temperature(℃) | 5-30 |
Name | Stacked Constant Temperature Shaker (LCD) | |||
Model | FSI-280NC | FSI-280N | FSI-150NC | FSI-150N |
Control Mode | PID Microcomputer Processing Chip | |||
Cycle Mode | Forced Air Convection | |||
Oscillation Mode | Cyclotron Oscillation | |||
Display Mode | LCD Display | |||
USB Data Download System | Yes | |||
Control System | Standard Mode;Continuous Mode;Programable Mode(multi-stage temperature,speed and time control) | |||
Rotary Speed Range(rpm/min) | 0, 20-350(Top Tray 20-300,Static Cultivate, Positive And Negative Rotation) | |||
Rotary Accuracy(rpm) | ±1 | |||
Amplitude(mm) | Φ26 | |||
Max Capacity (clamp) | 250ml x 60 or 500ml x 40 or 1L x 20 or 2L x 11(each unit) | 250ml x 25 or 500ml x 16 or 1L x 9 or 2L x 5 or 3L x 5 or 5L x 4( each unit) | ||
Max Capacity (stick mat) | 250ml x 55 or 500ml x 33 or 1L x 8 or 2L x 15( each unit) | 250ml x 25 or 500ml x 16 or 1 x 9 or 2L x 5 or 3L x 4 or 5L x 2( each unit) | ||
Standard Configuration | 500ml x 33 | 500ml x 16 | ||
Plate Size(mm) | 830 x 510 | 475 x 465 | ||
Timer Range(h/min) | 0-9999 (with timing function,continuous operating) | |||
Temp.Range(℃) | 4-65 (25℃) | RT+10-65 | 4-65 (25℃) | RT+10-65 |
Temperature Accuracy(℃) | ±0.1 | |||
Temperature Uniformity(℃) | Effective Working Area) | |||
Temperature Motion(℃) | ≤0.1(37℃) | |||
Tray Number | 2 pieces | |||
External Size(mm) | 1360 x 830 x 620 | 870 x 755 x 1300 | ||
Capacity(L) | 280 | 150 | ||
Power(W) | 1800 | 1600 | 650 | 550 |
Power Supply | AC220±10% 50-60HZ | |||
Ambient Temperature(℃) | 5-30 |
