WB-3-1,WB-7-2,WB-13-4,WB-19-6,WB-12-4,WB-18-6,WB-23-8
FAITHFUL
Product Description:

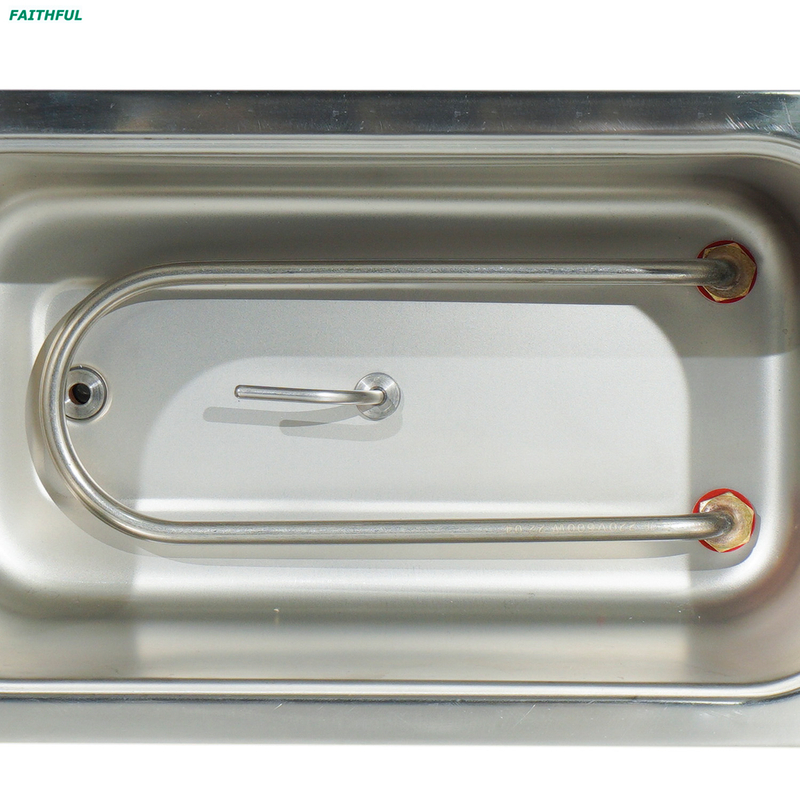

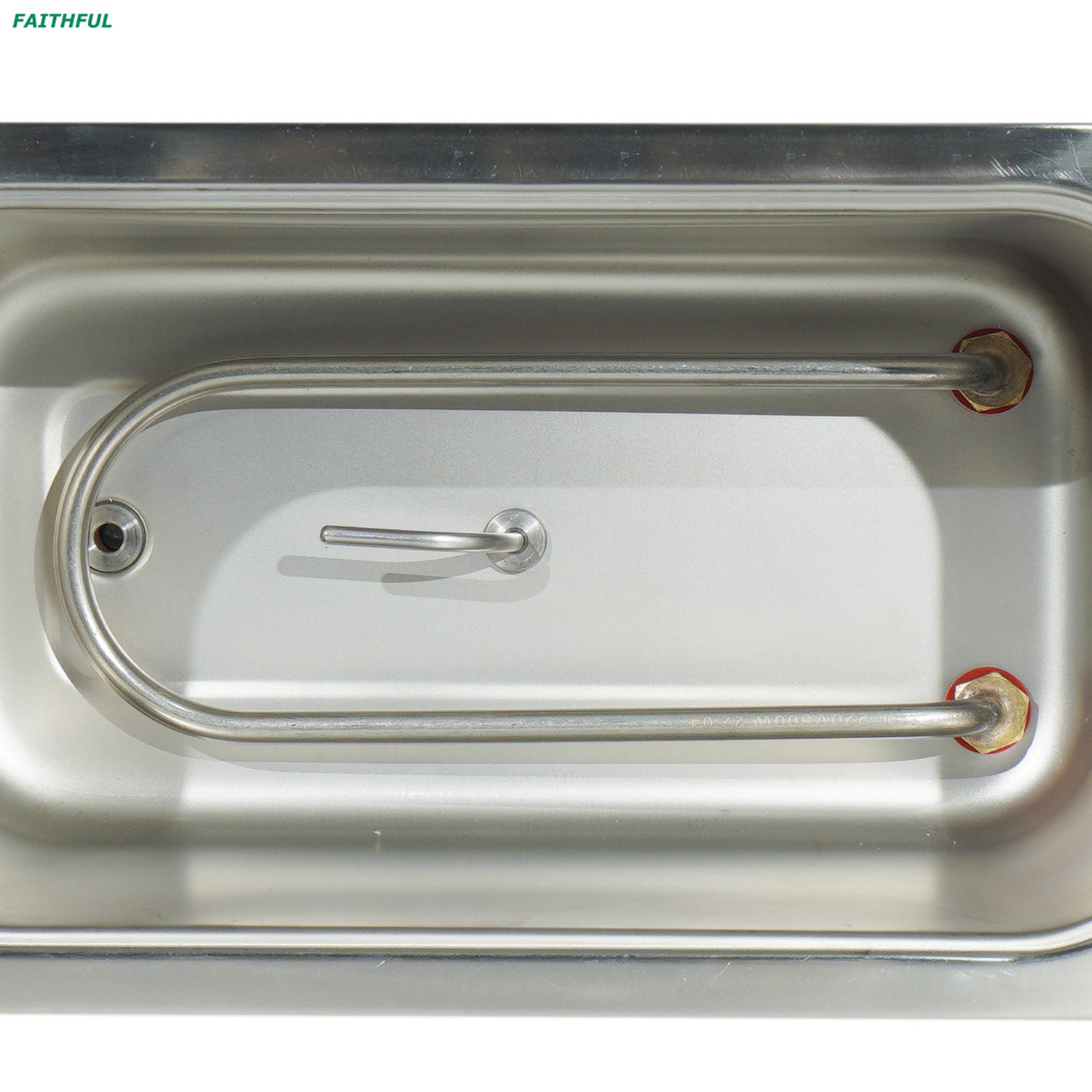

Inner tank: 1 hole, 2 holes, 2 rows & 4 four holes, 2 rows & 6 holes are stainless steel stretching inner chamber. 1 row & 4 holes, 1 row & 6 holes, 2 rows & 8 holes are stainless steel inner chamber.
Product Description:
Inner tank: 1 hole, 2 holes, 2 rows & 4 four holes, 2 rows & 6 holes are stainless steel stretching inner chamber. 1 row & 4 holes, 1 row & 6 holes, 2 rows & 8 holes are stainless steel inner chamber.
Name | 1 hole | 1 row & 2 holes | 1 row & 4 holes | 1 row & 6 holes | 2 rows & 4 holes | 2 rows & 6 holes | 2 rows & 8 holes | |
Model | WB-3-1 | WB-7-2 | WB-13-4 | WB-19-6 | WB-12-4 | WB-18-6 | WB-23-8 | |
Heating mode | Bottom heating,water temperature natural convection | |||||||
Function | Temp. range | Rt+5~100℃ | ||||||
Temp. Resolution Ratio | 0.1℃ | |||||||
Temp. Motion | ±0.5℃ | |||||||
Temp. Uniformity | ±1℃ | |||||||
Structure | Water sink | Stainless steel, surface electrolysis treatment | ||||||
Outer shell | Cold rolled steel plate, surface electrostatic powder spray | |||||||
Heater | Stainless steel U type heating tube | |||||||
Power rating | 300W | 600W | 1000W | 1500W | 800W | 1200W | 2000W | |
Controller | Temp. control mode | PID | ||||||
Temp. setting mode | Touch button setting | |||||||
Temp. display mode | Measuring temperature: display on the three digital tubes upper row , setting temperature: display on the lower row | |||||||
Timer | 0∽999 min(with timing function) | |||||||
Timing function | Fixed temperature operation, timing function, auto stop. | |||||||
Program schema | Optional: multi-section program control | |||||||
Additional function | Deviation correction, menu key lock, power failure back-up, power-off parameter memory, PID adjustable | |||||||
Sensor | Thermal resistor | |||||||
Safety device | Over-temperature alarm, short-circuit protection | |||||||
Specification | Inner Chamber size(W*L*H) (mm) | 160*160 *130 | 305*160 *130 | 600*165 *130 | 900*165 *130 | 305*305 *130 | 470*305 *130 | 600*300 *130 |
Exterior size (W*L*H) (mm) | 200*210 *210 | 340*210 *210 | 635*165 *210 | 930*210 *210 | 340*350 *210 | 510*350 *210 | 635*340 *210 | |
Packing size (W*L*H) (mm) | 270*270 *275 | 405*275 *275 | 715*260 *275 | 1000*260 *275 | 415*415 *275 | 575*410 *275 | 700*415 *275 | |
Internal volume | 3.3L | 6.3L | 12.8L | 19.3L | 12L | 18.6L | 23.4L | |
Cover aperture | ∅120mm | |||||||
Cover material | PP Plastic | |||||||
Cover number per hole | 5 | |||||||
Power Supply (50/60Hz) Current rating | AC220V/ 1.4A | AC220V/ 2.7A | AC220V/ 4.5A | AC220V/ 6.8A | AC220V/ 3.6A | AC220V/ 5.4A | AC220V/ 6.8A | |
NW/GW (kg) | 3KG/3.5KG | 4KG/5KG | 7KG/8KG | 8KG/10KG | 6KG/7KG | 8KG/9KG | 9KG/11KG |
Name | 1 hole | 1 row & 2 holes | 1 row & 4 holes | 1 row & 6 holes | 2 rows & 4 holes | 2 rows & 6 holes | 2 rows & 8 holes | |
Model | WB-3-1 | WB-7-2 | WB-13-4 | WB-19-6 | WB-12-4 | WB-18-6 | WB-23-8 | |
Heating mode | Bottom heating,water temperature natural convection | |||||||
Function | Temp. range | Rt+5~100℃ | ||||||
Temp. Resolution Ratio | 0.1℃ | |||||||
Temp. Motion | ±0.5℃ | |||||||
Temp. Uniformity | ±1℃ | |||||||
Structure | Water sink | Stainless steel, surface electrolysis treatment | ||||||
Outer shell | Cold rolled steel plate, surface electrostatic powder spray | |||||||
Heater | Stainless steel U type heating tube | |||||||
Power rating | 300W | 600W | 1000W | 1500W | 800W | 1200W | 2000W | |
Controller | Temp. control mode | PID | ||||||
Temp. setting mode | Touch button setting | |||||||
Temp. display mode | Measuring temperature: display on the three digital tubes upper row , setting temperature: display on the lower row | |||||||
Timer | 0∽999 min(with timing function) | |||||||
Timing function | Fixed temperature operation, timing function, auto stop. | |||||||
Program schema | Optional: multi-section program control | |||||||
Additional function | Deviation correction, menu key lock, power failure back-up, power-off parameter memory, PID adjustable | |||||||
Sensor | Thermal resistor | |||||||
Safety device | Over-temperature alarm, short-circuit protection | |||||||
Specification | Inner Chamber size(W*L*H) (mm) | 160*160 *130 | 305*160 *130 | 600*165 *130 | 900*165 *130 | 305*305 *130 | 470*305 *130 | 600*300 *130 |
Exterior size (W*L*H) (mm) | 200*210 *210 | 340*210 *210 | 635*165 *210 | 930*210 *210 | 340*350 *210 | 510*350 *210 | 635*340 *210 | |
Packing size (W*L*H) (mm) | 270*270 *275 | 405*275 *275 | 715*260 *275 | 1000*260 *275 | 415*415 *275 | 575*410 *275 | 700*415 *275 | |
Internal volume | 3.3L | 6.3L | 12.8L | 19.3L | 12L | 18.6L | 23.4L | |
Cover aperture | ∅120mm | |||||||
Cover material | PP Plastic | |||||||
Cover number per hole | 5 | |||||||
Power Supply (50/60Hz) Current rating | AC220V/ 1.4A | AC220V/ 2.7A | AC220V/ 4.5A | AC220V/ 6.8A | AC220V/ 3.6A | AC220V/ 5.4A | AC220V/ 6.8A | |
NW/GW (kg) | 3KG/3.5KG | 4KG/5KG | 7KG/8KG | 8KG/10KG | 6KG/7KG | 8KG/9KG | 9KG/11KG |
