Thermostatic water tank

Availability:
Quantity:
  • HHW 21.420AII,SHHW21.420AII,HHW21.600AII,SHHW21.600AII

  • FAITHFUL

Product Description

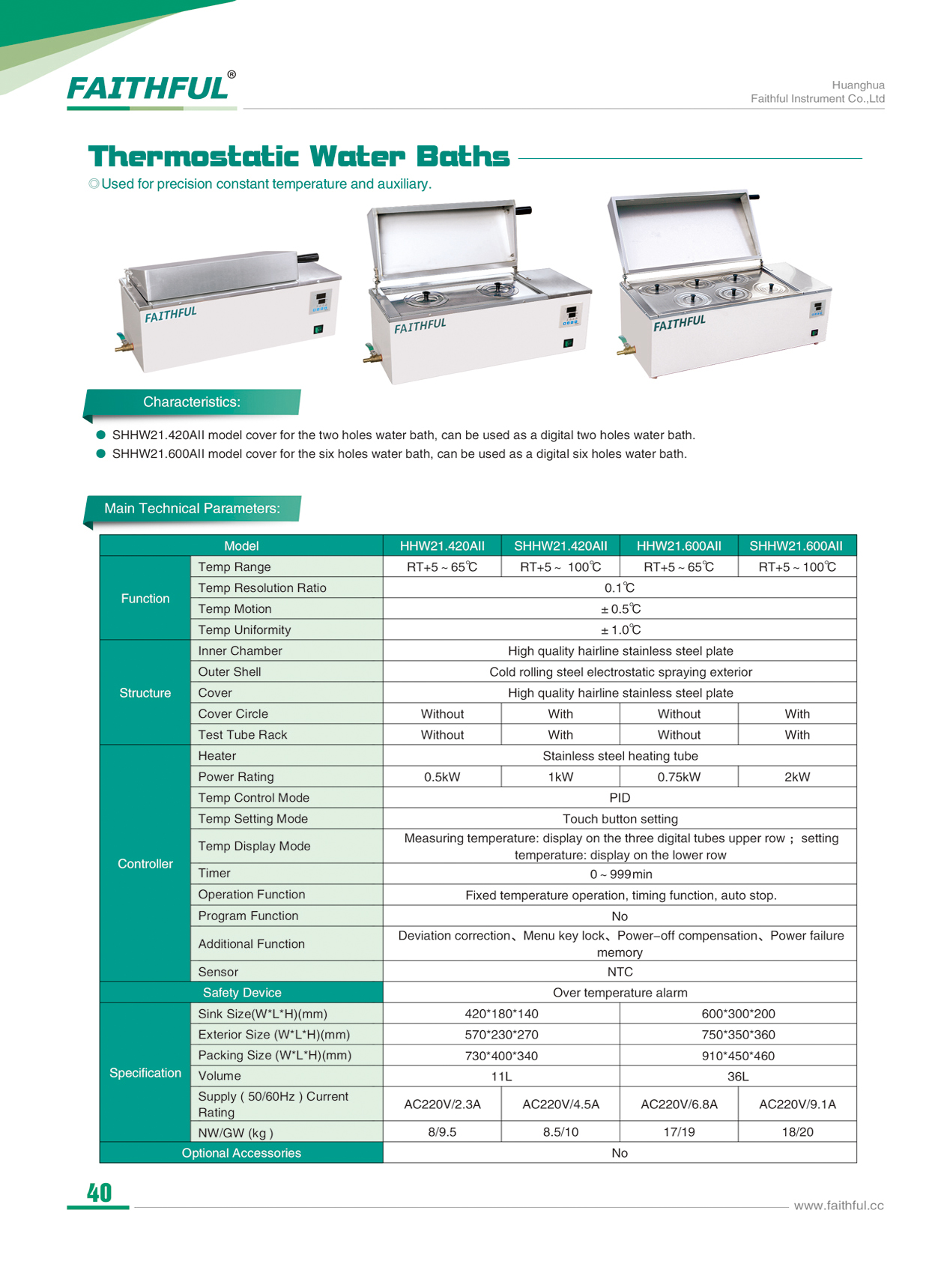

1. SHHW21.420AII model cover for the two holes water bath, can be used as a digital two holes water bath.

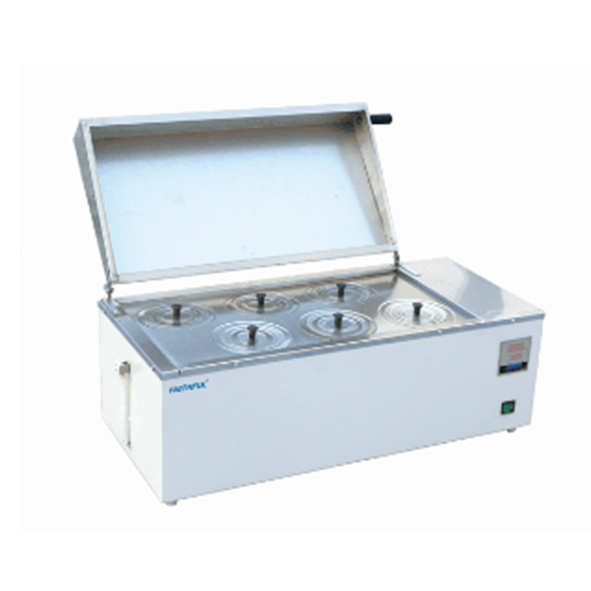

2.SHHW21.600AII model cover for the six holes water bath, can be used as a digital six holes water bath.


ModelHHW
21.420AII
SHHW
21.420AII
HHW
21.600AII
SHHW
21.600AII
FunctionTem. RangeRT+
565
RT+
5 100
RT+
565
RT+
5100
Tem. Resolution
Ratio
0.1℃
Tem. Motion±0.5℃
Tem. Uniformity±1.0℃
StructureInner ChamberHigh quality hairline stainless steel plate
Outer ShellCold rolling steel electrostatic spraying exterior
CoverHigh quality hairline stainless steel plate
Cover circleWithoutWithWithoutWith
Test tube rackWithoutWithWithoutWith
ControllerHeaterStainless steel heating tube
Power Rating0.5kW1kW0.75kW2kW
Tem. control
mode
PID
Tem. setting
mode
Touch button setting
Tem. display
mode
Measuring temperature: display on the three
digital tubes upper row setting
 temperature: display on the lower row
Timer0~999min(with timing wait function)
Operation functionFixed temperature operation,
timing function, auto stop.
Program functionNo
Additional functionDeviation correctionMenu key lock
Power-off compensation
Power failure memory
SensorCU50
Safety deviceOver temperature alarm
SpecificationSink size
(W*L*H)
(mm)
420*180*140600*300*200
Exterior size
(W*L*H)
(mm)
570*230*270750*350*360
Packing size
(W*L*H)
(mm)
720*320*380900*440*440
Volume11L36L
Supply
50/60Hz)
Current rating
AC220V/
2.3A
AC220V/
4.5A
AC220V/
6.8A
AC220V/
9.1A
NW/GW (kg)8/9.58.5/1017/1918/20
Optional accessories

Different sizes can be customized, can add power off protection function

when water shortage.

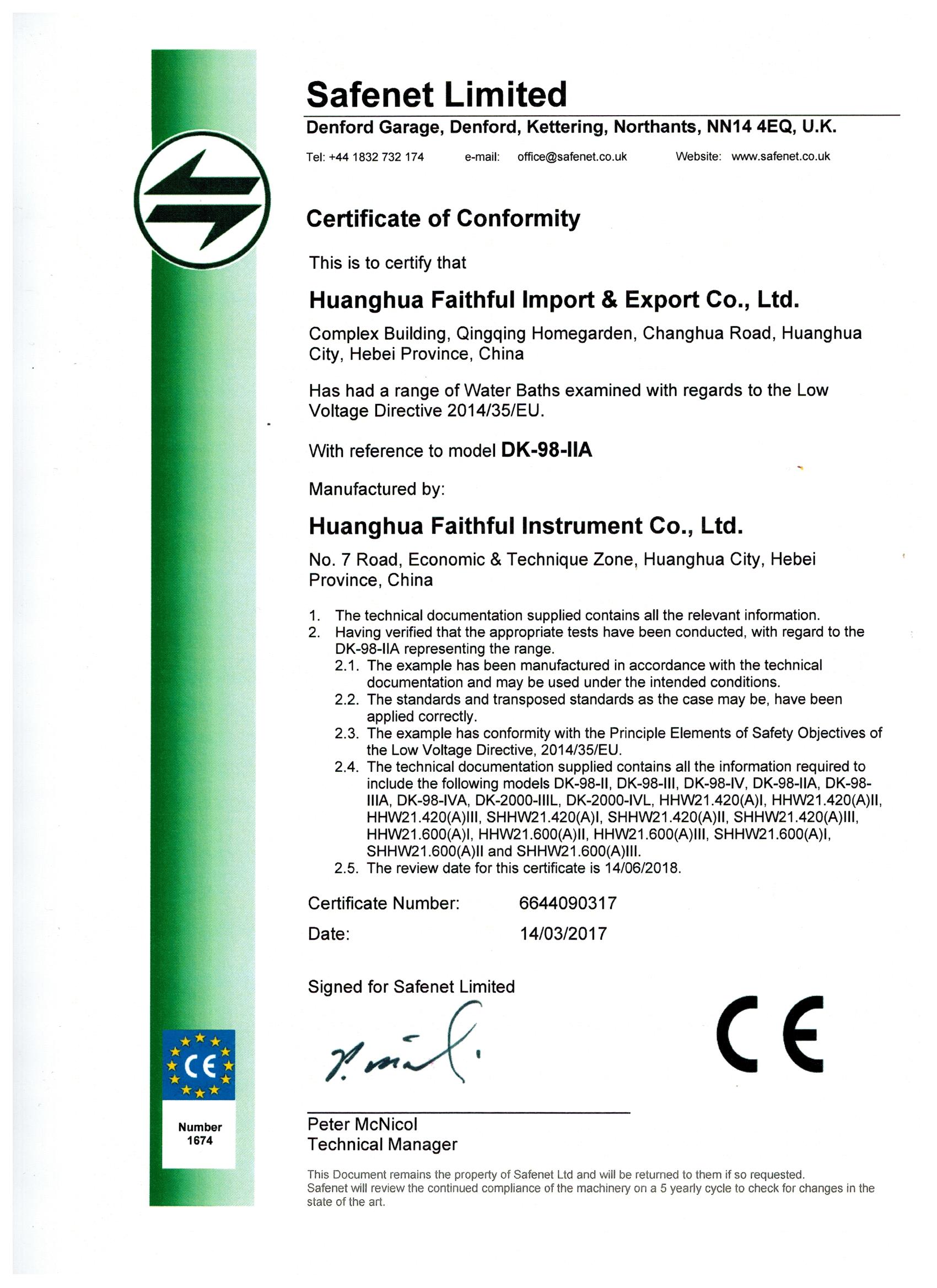

CE for Water Bath LVD
