| Model | DZ-1BCⅡ | DZ-2BCⅡ | DZ-3BCⅡ | DZ-4BCⅡ |
|
| Heating mode | Four walls heat conduction and decompression |
| Function | Temp.
Range | RT+10-250℃ |
Useful vacuum
degree Range | <133Pa |
Temp.
Resolution Ratio | 0.1℃ |
| Temp. motion | ±1℃ |
Heating-up
time | 80min | 100min | 120min | 120min |

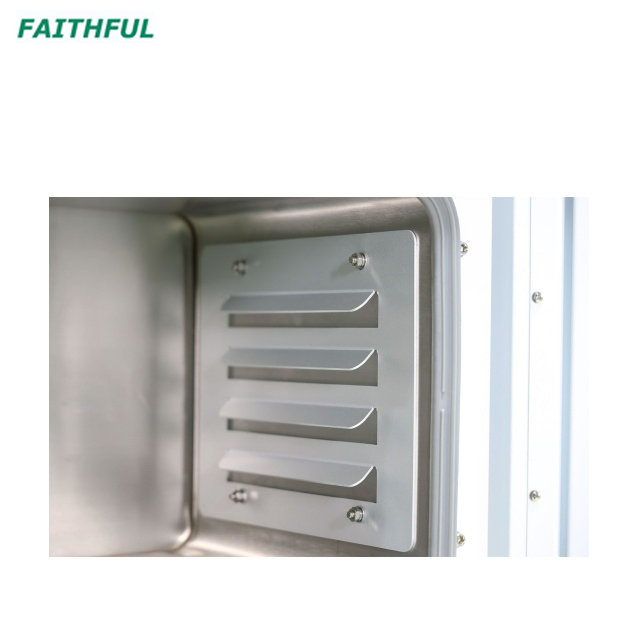

| Structure | Inner Chamber | High quality stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |

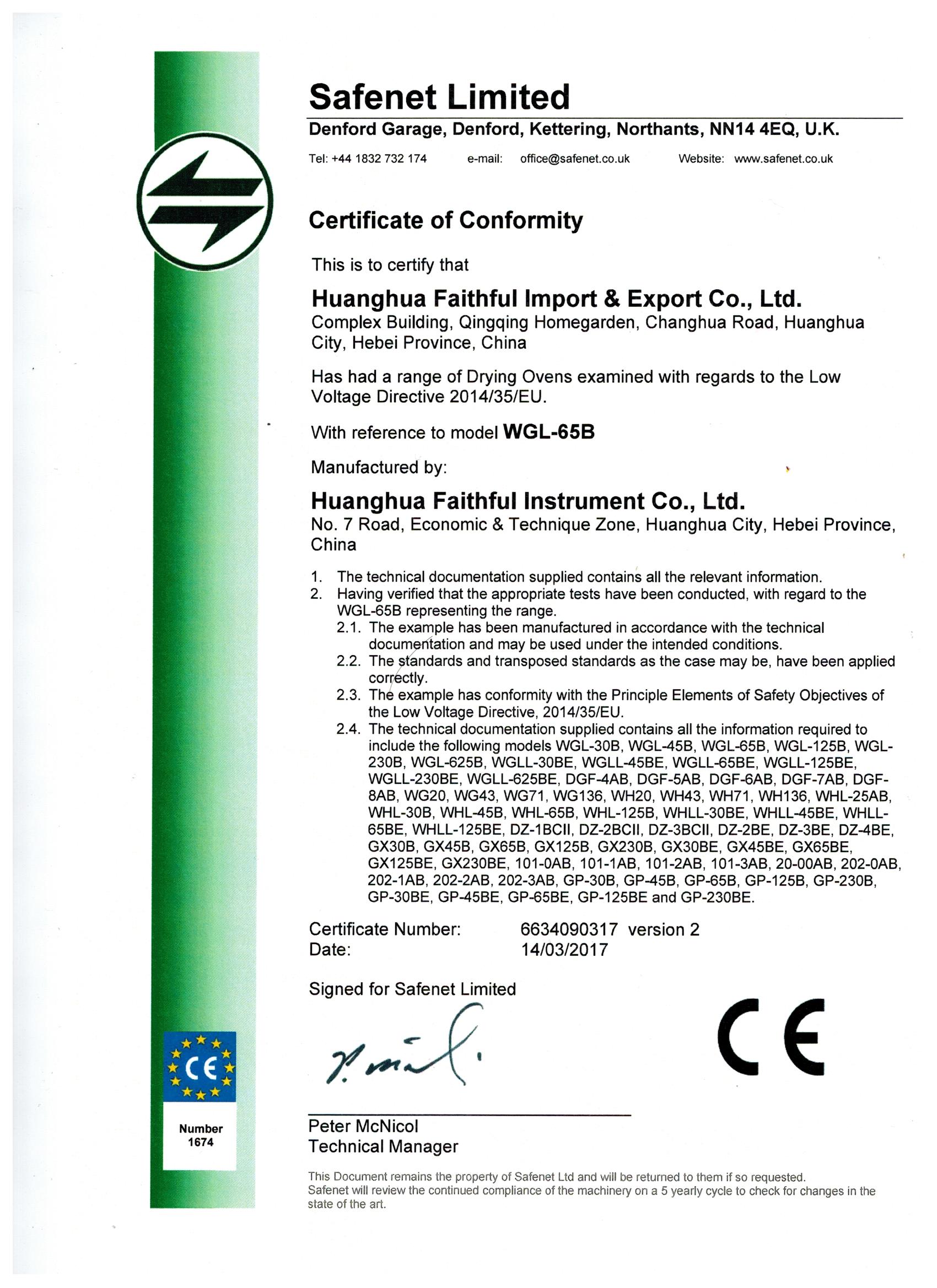

| Insulation layer | High quality aluminum silicate cotton(with CE certification) |
| Heater | Stainless steel electric heat tube |
Observation
window | Bullet proof tempered glass |
| Vacuum meter | Pointer type, accuracy class 2.5 |

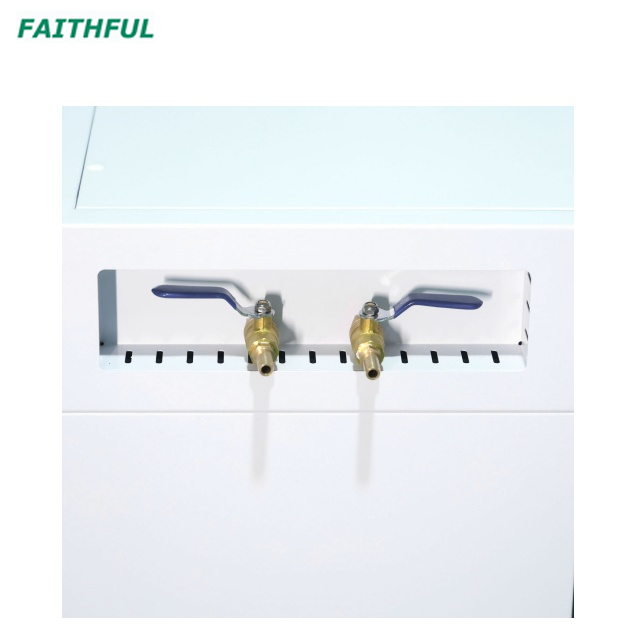

| Nozzle diameter | 10mm |
| Power rating | 0.8kW | 1.4kW | 2.0kW | 3.0kW |
| Controller | Temp. control
mode | Two temperature section PID intelligent |
Temp. setting
mode | Touch button setting |
Temp. display
mode | Measuring temperature: display on the four digital tubes
upper row ; setting temperature: display on the
lower row |
| Timer | 0-9999min(with timing wait function) |
| Operation function | Fixed temperature operation, timing function, auto stop |
| Additional function | Sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking,
power-off parameter memory |
| Sensor | pt100 |
| Safety device | Over temperature sound-light alarm |
| Specification | Inner Chamber
size(W*L*H)
(mm) | 300*300*270 | 415*370*340 | 450*450*450 | 550*600*650 |
Exterior size
(W*L*H)(mm) | 480*480*606 | 560*540*680 | 640*590*780 | 740*740*1000 |
Packing size
(W*L*H)(mm) | 590*550*750 | 704*620*814 | 739*700*889 | 839*850*1109 |
| Volume | 24L | 52L | 91L | 214.5L |
| Standard Shelf Number | 4
| 6 | 7 | 8 |
| Load per rack | 15kg |
| Shelf space | 40mm | 40mm | 50mm | 70mm |
50/60HZ)
Current rating | AC220V/3.6A | AC220V/6.3A | AC220V/9.1A | AC220V/13.6A |
| NW/GW (kg） | 42/52 | 67/92 | 82/105 | 170/200 |
| Accessory | Shelf | 2 |
| Shelf frame | 4 |
| optional accessories | Silicone connecting tube, vacuum pump filter, vacuum pump |
