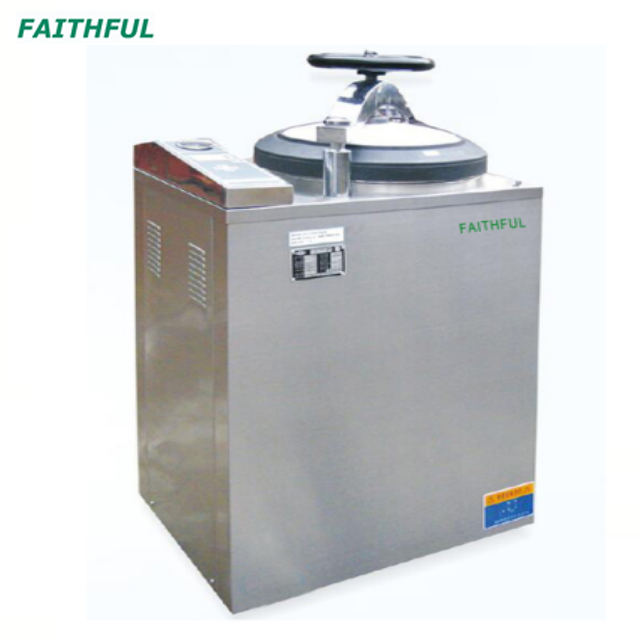

Vertical Pressure Steam Sterilizer-FSF-HV

Fully vacuum automatic microcomputer

Quantity:

Product Description:

1. Automatically controlled by computer, digital display of work- ing status, touch type key.

2. Fully automatically route for water inlet, pulse vacuum, heat- ing, sterilizing, draining, exhausting, vacuum drying.

3. 3 times pulse vacuum, which make the vacuum rate as -0.081 mpa,and ensure the high extracting of inner air from

    dressing, A.B type hollowed appliance.

4. With 4 fixed program for appliance, medical dressing, rub- bers and fluid, and the user

    can also set the program as they

5. Equipped with the PTAT testing connector, easy to run the testing.

6. Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing.

7. Equipped with bacteria filter, ensure the sterile air enter the inner vacuum environment, avoid the second

    contamination.

8. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

9. Automatically shut off with beep reminding after sterilization.


Model

FSF-35HV

FSF-50HV

FSF-75HV

FSF-100HV

Capacity

35L(φ318*450)mm

50L(φ340*550)mm

75L(φ400*600)mm

100L(φ440*650)mm

Working pressure

0.22Mpa

Working temperature

134℃

Max working pressure

0.23Mpa

Temperature range

0-134℃

Timer scope

1-99min

Heat average

≤±1℃

Power

2.5KW/AC220V.50HZ

3KW/AC220V.50HZ

4.5KW/AC220V.50HZ

4.5KW/AC220V.50HZ

Exterior size(mm)

600*410*1030

690*470*1140

730*510*1270

750*550*1305

Packing size(mm)

730*500*1170

760*550*1290

820*600*1138

840*640*1410

G.W/E.W

96/77kg

120/100kg

140/118kg

160/128kg
