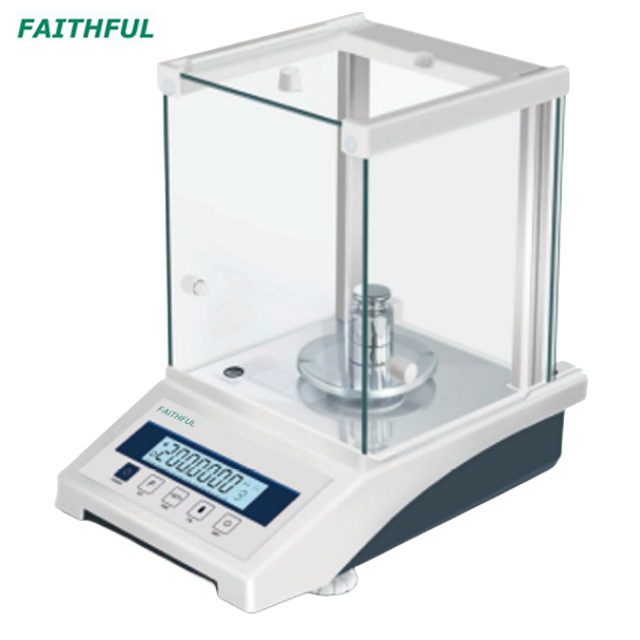

FA2004E(N),FA2104E(N),FA2204E(N)
FAITHFUL
Function
★ Internal auto calibration (FA-EN)
★ Electromagnetic force sensor
★ LCD (White back light with black font)
★ Tare function/Counting/Unit conversion
★ Sensitivity/Speed set/Percentage
★ Density function
★ Accumulation function/peak hold/Upper and lower set
★ Dynamic weighing /Net and Gross/Clock function(optional)
★ Print function (baud rate setting, Continuous communication or press communication)
★ Calibration time setting
★ Overload alarm/Fault alarm/Level indicator
★ Option: Density kit (solid/liquid)/RS485/USB/printer
Function
★ Internal auto calibration (FA-EN)
★ Electromagnetic force sensor
★ LCD (White back light with black font)
★ Tare function/Counting/Unit conversion
★ Sensitivity/Speed set/Percentage
★ Density function
★ Accumulation function/peak hold/Upper and lower set
★ Dynamic weighing /Net and Gross/Clock function(optional)
★ Print function (baud rate setting, Continuous communication or press communication)
★ Calibration time setting
★ Overload alarm/Fault alarm/Level indicator
★ Option: Density kit (solid/liquid)/RS485/USB/printer
FA-E(N) Series | |||
Model | FA2004E(N) | FA2104E(N) | FA2204E(N) |
Maximum Capacity: | 200g | 210g | 220g |
Minimum Load: | 10 mg | ||
Readability [d]: | 0.1 mg | ||
Tare range: | -220g | ||
Standard repeatability [5% Max]: | 0.07mg | ||
Standard repeatability [Max]: | 0.08 mg | ||
Standard minimum weight (USP): | 140 mg | ||
Standard minimum weight (U=1%,k=2): | 14 mg | ||
Permissible repeatability [5% Max]: | 0.09 mg | ||
Permissible repeatability [Max]: | 0.1 mg | ||
Linearity: | ± 0.2 mg | ||
Stabilization time: | 2S | ||
Adjustment: | Internal (automatic) | ||
Display: | LCD (backlit), 4-Digit | ||
Communication interface: | 2×RS232,2×USB-A (interchangeable) USB-B, Wi-Fi@(option) | ||
Power supply: | 100-240 V AC 50/60 Hz | ||
Operating temperature: | +10 to +40℃ | ||
Weighing pan dimensions: | Φ100 mm | ||
Packaging dimensions: | 425 x 320 x 415mm | ||
Gross weight: | 6.0kg |
FA-E(N) Series | |||
Model | FA2004E(N) | FA2104E(N) | FA2204E(N) |
Maximum Capacity: | 200g | 210g | 220g |
Minimum Load: | 10 mg | ||
Readability [d]: | 0.1 mg | ||
Tare range: | -220g | ||
Standard repeatability [5% Max]: | 0.07mg | ||
Standard repeatability [Max]: | 0.08 mg | ||
Standard minimum weight (USP): | 140 mg | ||
Standard minimum weight (U=1%,k=2): | 14 mg | ||
Permissible repeatability [5% Max]: | 0.09 mg | ||
Permissible repeatability [Max]: | 0.1 mg | ||
Linearity: | ± 0.2 mg | ||
Stabilization time: | 2S | ||
Adjustment: | Internal (automatic) | ||
Display: | LCD (backlit), 4-Digit | ||
Communication interface: | 2×RS232,2×USB-A (interchangeable) USB-B, Wi-Fi@(option) | ||
Power supply: | 100-240 V AC 50/60 Hz | ||
Operating temperature: | +10 to +40℃ | ||
Weighing pan dimensions: | Φ100 mm | ||
Packaging dimensions: | 425 x 320 x 415mm | ||
Gross weight: | 6.0kg |
