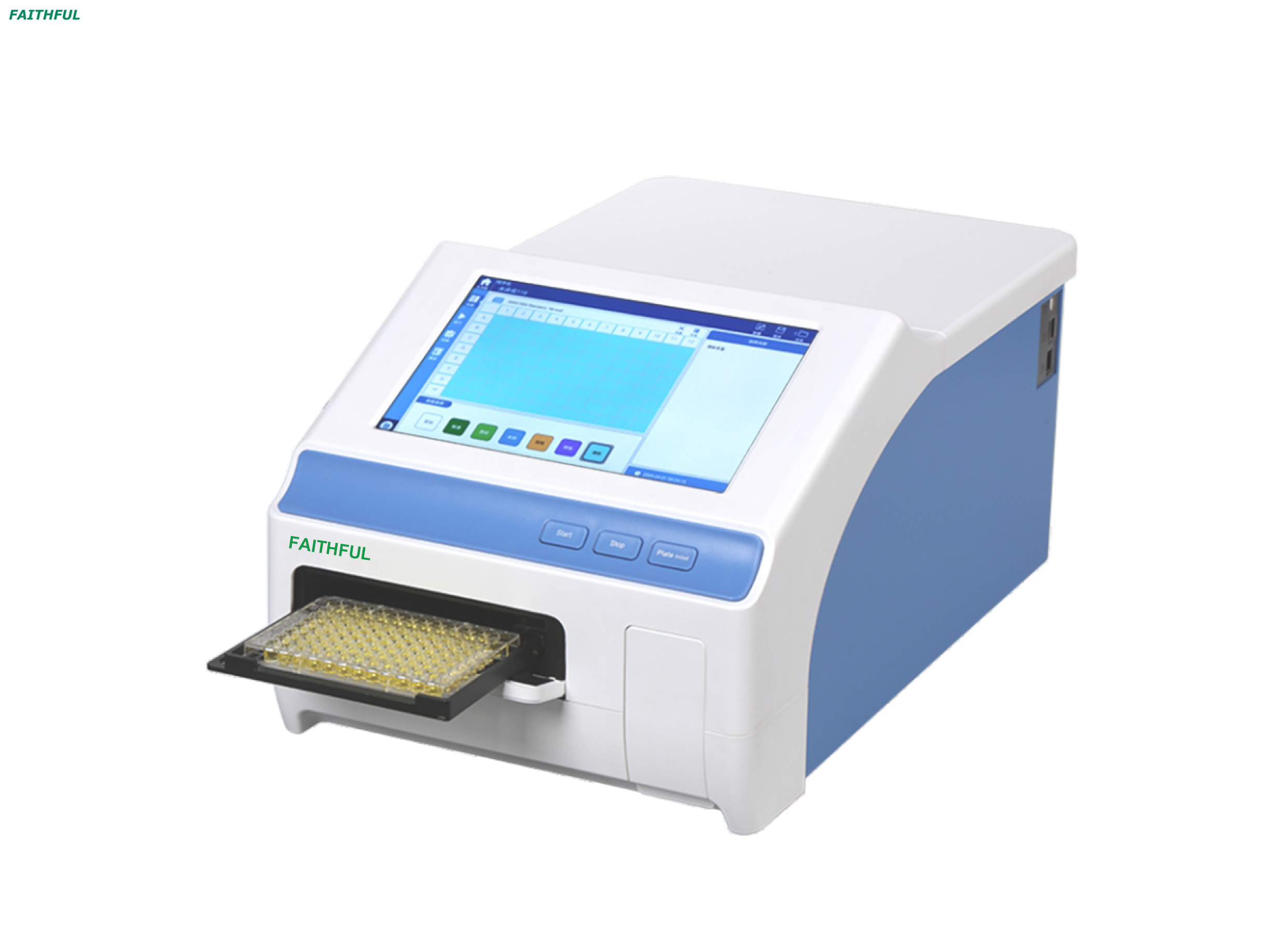

FlexA-200 Microplate Reader

FlexA-200 is a UV/Vis micro-plate spectrophotometer offering free wavelength selection, so being an ideal tool for virtually any photometric research application, such as DNA, RNA, protein analysis and more It offers exceptional usability through its intuitive, user-friendly internal software and comprehensive ReaderIt-II Software. FlexA-200 microplate reader has been designed to deliver high performance and high quality results with minimal user effort, It measures 96-and 384-well plates and plate shaking motion is linear
Availability:
Quantity:
  • FlexA-200

  • FAITHFUL

Feature:

1. 10 inch touch screen, and offers stand-alone operation, it is easy to use

Intuitive, user-friendly internal software on a 10 inch touch screen for quick measurements. Easy and logical assays setup for demanding assays with the powerful PC software (ReaderIt-II), the PC software can offer to analysis, review, validate data. It is easy access to data via USB interface and WIFI.


2. Freely selectable wavelengths from 200 - 1000 nm for the demands of various assays

Wavelength selection in FlexA-200 is done by using an advanced monochromator system. Any wavelength between 200 to 1000nm can be selected at any time. Using the spectral scanning feature, the whole spectrum of a sample be scanned in 1nm increments to allow identification of the optimal measurement wavelength for a new assay.


3.Both microplate reading for any throughput requirements

It measures 96-and 384-well plates.


4.Flexibility and performance for various photometric applications

FlexA-200 microplate reader supports endpoint, kinetic and spectral scanning assays. It reads 96- and 384-well microplates with and without lids. A broad wavelength range with the UV area, pathlength correction as well as fast spectral scanning makes it an ideal tool for any photometric research application, including DNA, RNA and protein analysis.

ModelFlexA-200
Display10 inch touch screen
Light sourceXenon lamp
Wavelength range200 - 1000 nm with 1 nm steps
Wavelength accuracy2 nm
Tepetition0.2 nm
Wavelength selectionMonochromator
Read-out range0 - 4.0 OD
Half-bandwidth of filters<2.5
DetectorTwo silicon photoelectric detector, one for measurement, another for reference
Linearity @450 nmR²≥0.999,[0.0-3.0Abs]
Accuracy @450 nm±(1.0 %+0.003Abs),(0~2.0 Abs]; ±2.0 %,(2.0~2.5Abs]
Precision @450 nmCV <0.5 % or SD<0.003 accurate model; CV <1.0 % fast mode
Test speed8 seconds with 96-well plate (fast mode); 28 seconds with 96-well plate (accurate model)
Plate shakingLinear; three options for speed
IncubatorRT + 4 ℃~45 ℃
UIIntegrated software or PC control software
Analysis softwareReaderIt-II
User interfaceTouch screen, android system, 10 inch touch screen, external keyboard & mouse
Storage16G, more than 20,000 test records

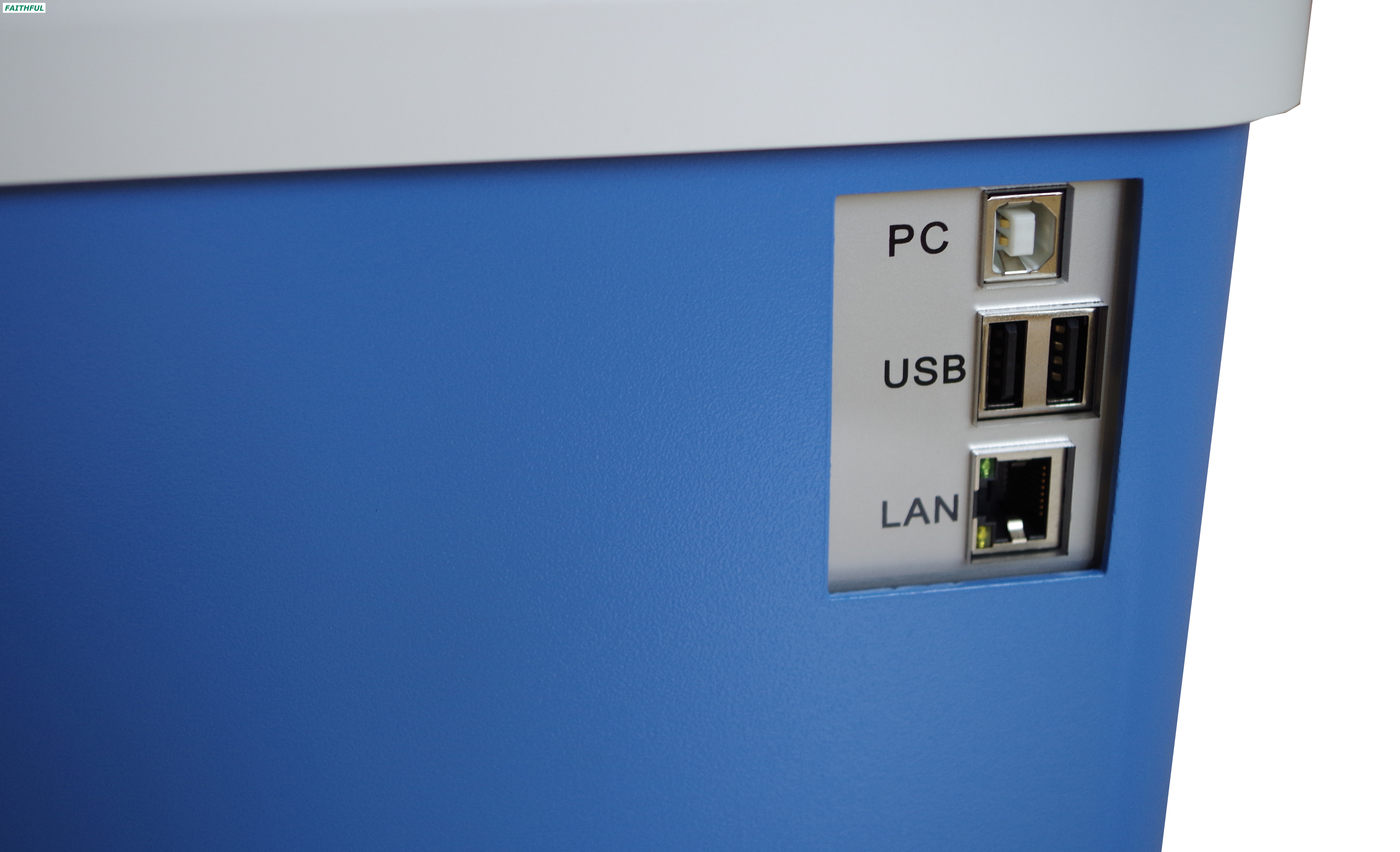

Port2 USB A type ports, 1 USB B type port, 1 Ethernet port
Automated systemTemporarily incompatible with automated systems
Power supplyDC24 V, 6.67 A
Dimension (W×D×H) mm300×500×260 mm
Weight15.5 kg
