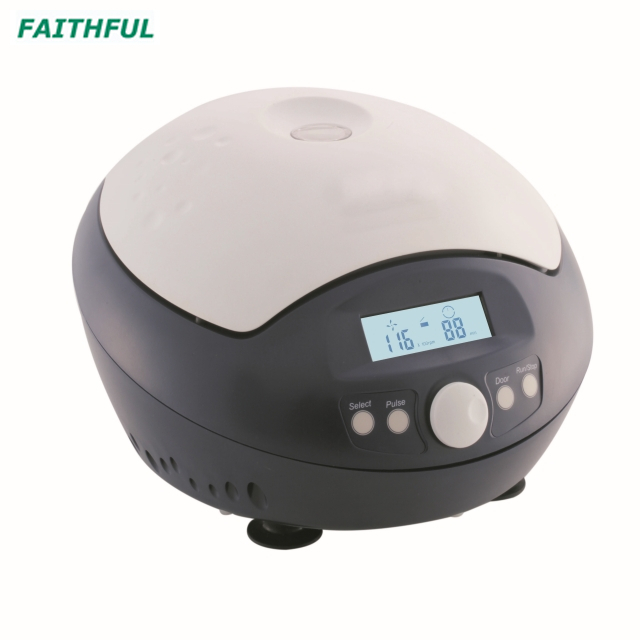

FD2012 Plus
FAITHFUL
1.Ergonomic electronic lock design, the centrifuge lid can be closed with single finger touch
• Powerful centrifugal force of 15100xg and max. speed of 15000rpm ideal for various applications

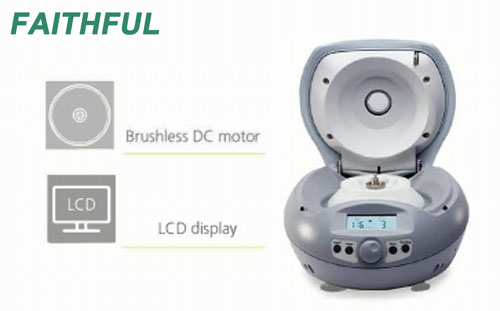

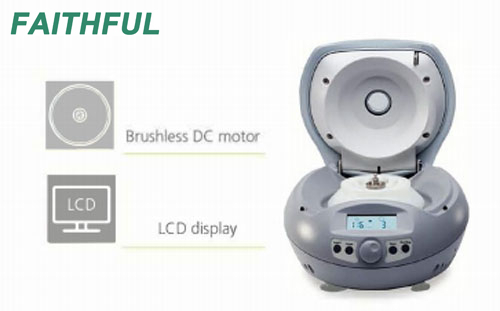

• Brushless DC motor drive quickly accelerates the rotor to set speed
• Quiet working, Low noise ≤56dB
• D2012 is proven by IEC/EN 61010-1
• D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test. MCA test according to IEC/EN61010-2-20
1.Ergonomic electronic lock design, the centrifuge lid can be closed with single finger touch
• Powerful centrifugal force of 15100xg and max. speed of 15000rpm ideal for various applications
• Brushless DC motor drive quickly accelerates the rotor to set speed
• Quiet working, Low noise ≤56dB
• D2012 is proven by IEC/EN 61010-1
• D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test. MCA test according to IEC/EN61010-2-20
Specifications | FD2012 plus |
Max. Speed | 15000rpm(500-15000rpm), increment:100rpm |
Max. RCF | 15100×g, increment: 100×g |
Speed Accuracy | ±20rpm |

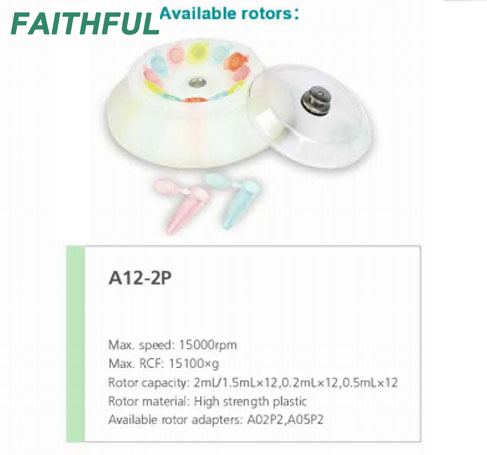

Rotor Capacity | 0.2mL/0.5mL/1.5mL/2mL×12 |
Run Time | 30sec-99min/Continuous |
Driving Motor | Brushless DC motor |
Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
Power | Single-phase, AC100V-240V 50Hz/60Hz, 3A ,100W |
Noise level | ≤54dB |
Acceleration/Braking time | 11s↑/9s↓ |
Dimension[D×W×H] | 255×245×140mm |
Weight | 6kg |
Certification | EMC, CE, FCC, ICES, cTUVus, CB |
Advanced features | Speed/RCF switch,Short-time run function,sound-alert function |
Specifications | FD2012 plus |
Max. Speed | 15000rpm(500-15000rpm), increment:100rpm |
Max. RCF | 15100×g, increment: 100×g |
Speed Accuracy | ±20rpm |
Rotor Capacity | 0.2mL/0.5mL/1.5mL/2mL×12 |
Run Time | 30sec-99min/Continuous |
Driving Motor | Brushless DC motor |
Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
Power | Single-phase, AC100V-240V 50Hz/60Hz, 3A ,100W |
Noise level | ≤54dB |
Acceleration/Braking time | 11s↑/9s↓ |
Dimension[D×W×H] | 255×245×140mm |
Weight | 6kg |
Certification | EMC, CE, FCC, ICES, cTUVus, CB |
Advanced features | Speed/RCF switch,Short-time run function,sound-alert function |
