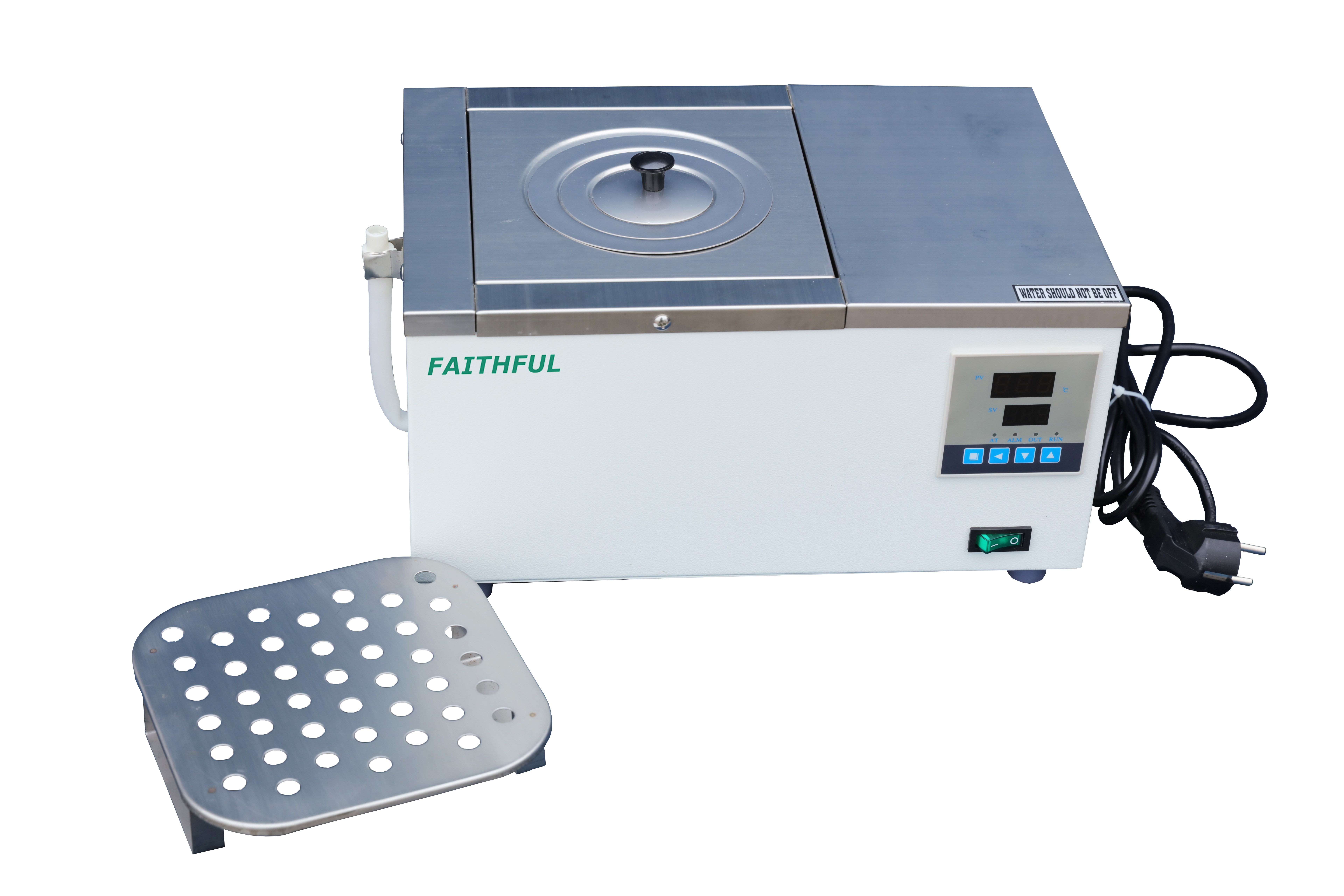

DK-98-(II)A
FAITHFUL
DK-98-IIA means:PID Microprocessor digital temperature controller.
Note:We can produce the water bath as customer requirement.
●Cold-rolling steel spraying exterior.
●Stainless steel Inner tank and cover.
●Intelligent Temperature control instrument adopts PID control,
dual digital display ,with functions of timing of operation(0-9999min),
fixed value operation,automatically stop、realization of over-
temperature alarm,power-off compensation、power failure memory,
error correction and Menu lock.
DK-98-IIA means:PID Microprocessor digital temperature controller.
Note:We can produce the water bath as customer requirement.
●Cold-rolling steel spraying exterior.
●Stainless steel Inner tank and cover.
●Intelligent Temperature control instrument adopts PID control,
dual digital display ,with functions of timing of operation(0-9999min),
fixed value operation,automatically stop、realization of over-
temperature alarm,power-off compensation、power failure memory,
error correction and Menu lock.

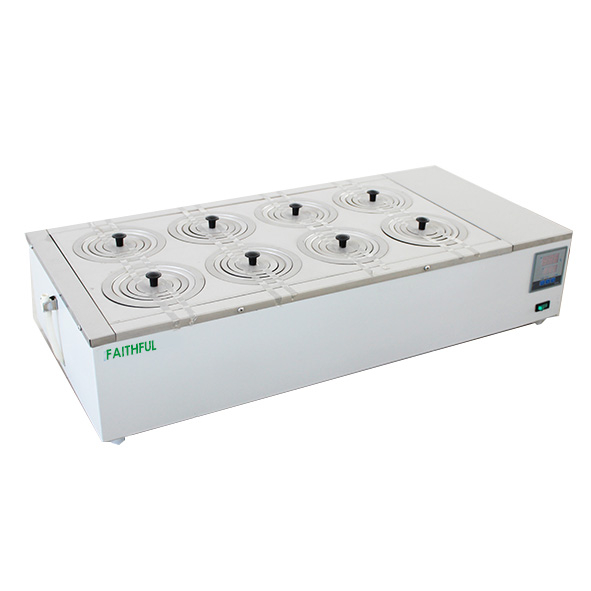

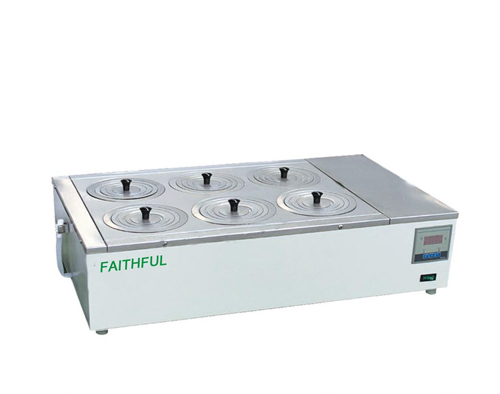

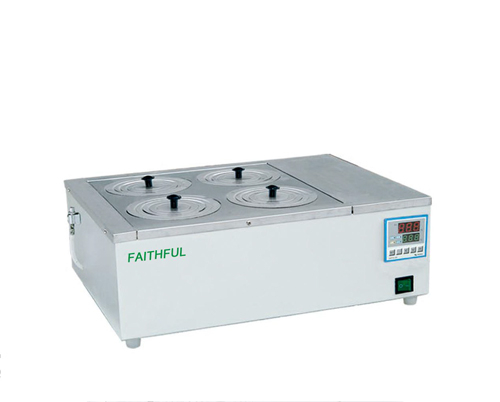

Model | DK-98- (II)A 1 hole | DK-98- (II)A 1 row & 2 holes | DK-98- (II)A 1 row& 4 holes | DK-98- (II)A 1 row & 6 holes | DK-98- (II)A 2 rows & 4 holes | DK-98- (II)A 2 rows & 6 holes | DK-98- (II)A 2 rows & 8 holes |
Voltage | 200-240V/100-120V | ||||||
Power(W) | 400 | 500 | 1000 | 1500 | 1000 | 1500 | 2000 |
Tem- motion (℃) | ±0.5℃ | ||||||
Tem- range (℃) | Room Temp.+5~100℃ | ||||||
Tem- Sensitivity (℃) | ≤±1℃ | ||||||
Display error(℃) | ≤±2.5℃ | ||||||
Chamber Size (mm) | 168*168 *120 | 325*168 120 | 653*168 *120 | 945168 *120 | 325*325 *120 | 480*325 *120 | 635*325 *120 |
Products Size (mm) | 360*240 190 | 510*240 *190 | 830*380 *190 | 1100*250 *215 | 510*380 *190 | 670*380 *190 | 830*380 *190 |
Packing Size (mm) | 400*320 *235 | 555*320 *230 | 865*320 *235 | 1170*320 *230 | 550*475 *235 | 715*475 *235 | 870*480 *235 |
N.W.(KG) | 3.3 | 5 | 7 | 12 | 6.5 | 8.6 | 9 |
G.W.(KG) | 4.3 | 6.5 | 8 | 14 | 7.7 | 9.3 | 10 |
Model | DK-98- (II)A 1 hole | DK-98- (II)A 1 row & 2 holes | DK-98- (II)A 1 row& 4 holes | DK-98- (II)A 1 row & 6 holes | DK-98- (II)A 2 rows & 4 holes | DK-98- (II)A 2 rows & 6 holes | DK-98- (II)A 2 rows & 8 holes |
Voltage | 200-240V/100-120V | ||||||
Power(W) | 400 | 500 | 1000 | 1500 | 1000 | 1500 | 2000 |
Tem- motion (℃) | ±0.5℃ | ||||||
Tem- range (℃) | Room Temp.+5~100℃ | ||||||
Tem- Sensitivity (℃) | ≤±1℃ | ||||||
Display error(℃) | ≤±2.5℃ | ||||||
Chamber Size (mm) | 168*168 *120 | 325*168 120 | 653*168 *120 | 945168 *120 | 325*325 *120 | 480*325 *120 | 635*325 *120 |
Products Size (mm) | 360*240 190 | 510*240 *190 | 830*380 *190 | 1100*250 *215 | 510*380 *190 | 670*380 *190 | 830*380 *190 |
Packing Size (mm) | 400*320 *235 | 555*320 *230 | 865*320 *235 | 1170*320 *230 | 550*475 *235 | 715*475 *235 | 870*480 *235 |
N.W.(KG) | 3.3 | 5 | 7 | 12 | 6.5 | 8.6 | 9 |
G.W.(KG) | 4.3 | 6.5 | 8 | 14 | 7.7 | 9.3 | 10 |
