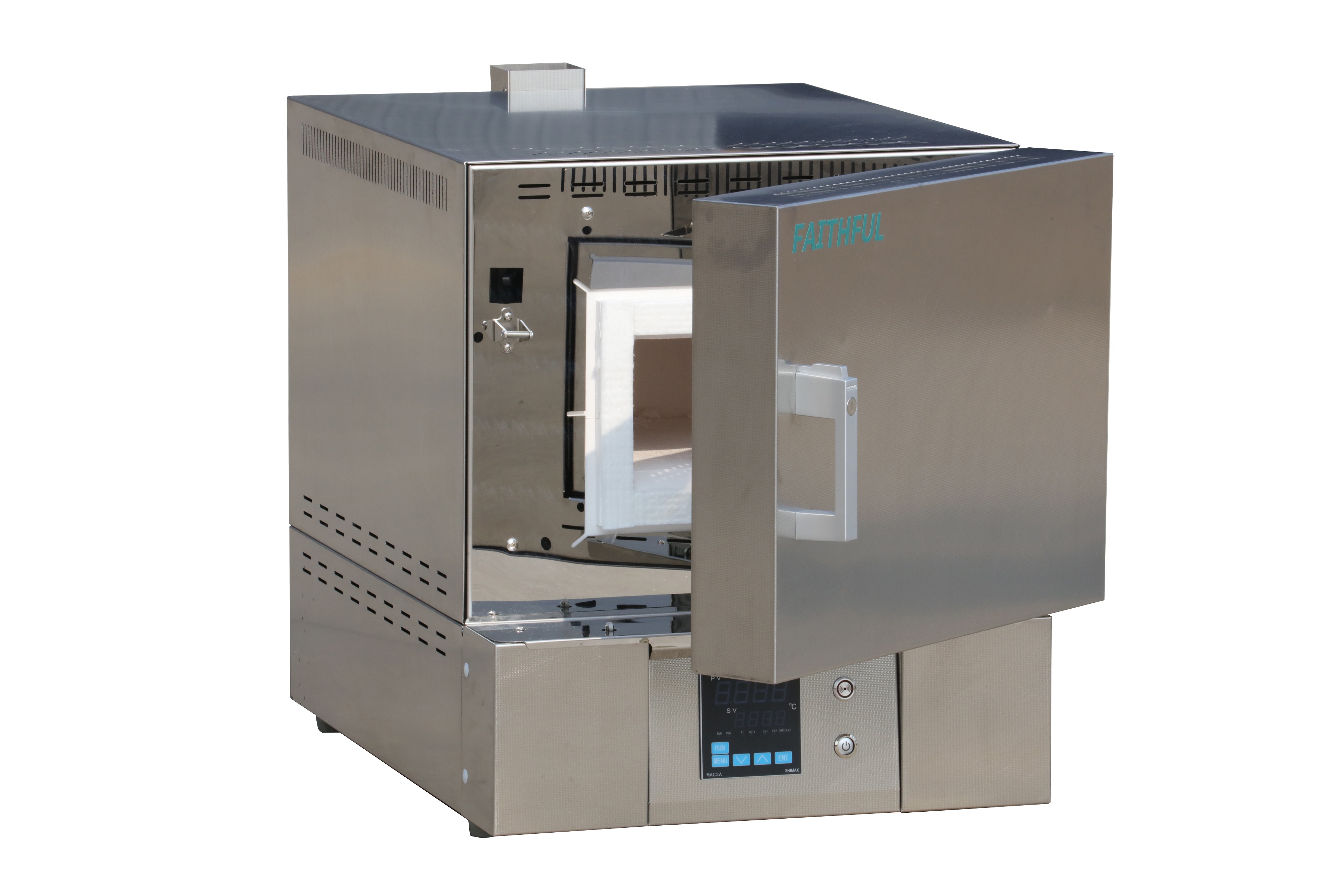

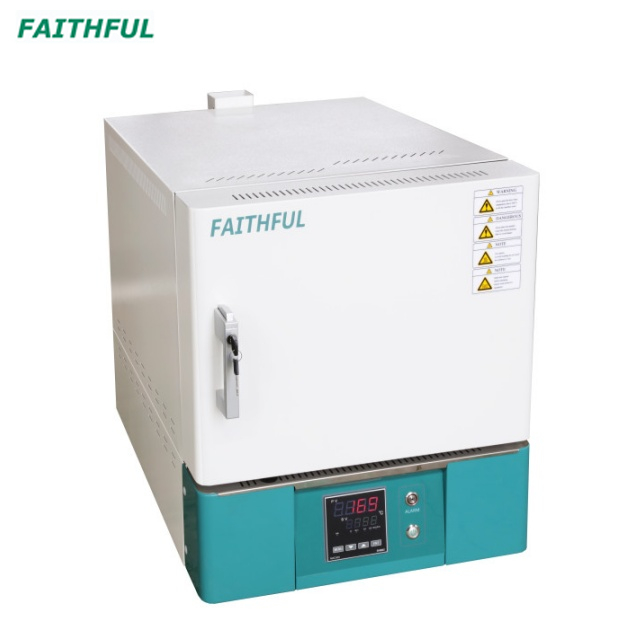

1200℃ Ceramic Fiber Muffle Furnace

Sintering, melting, elemental analysis and physical measurement within 1200℃ of precise control
Availability:
Quantity:

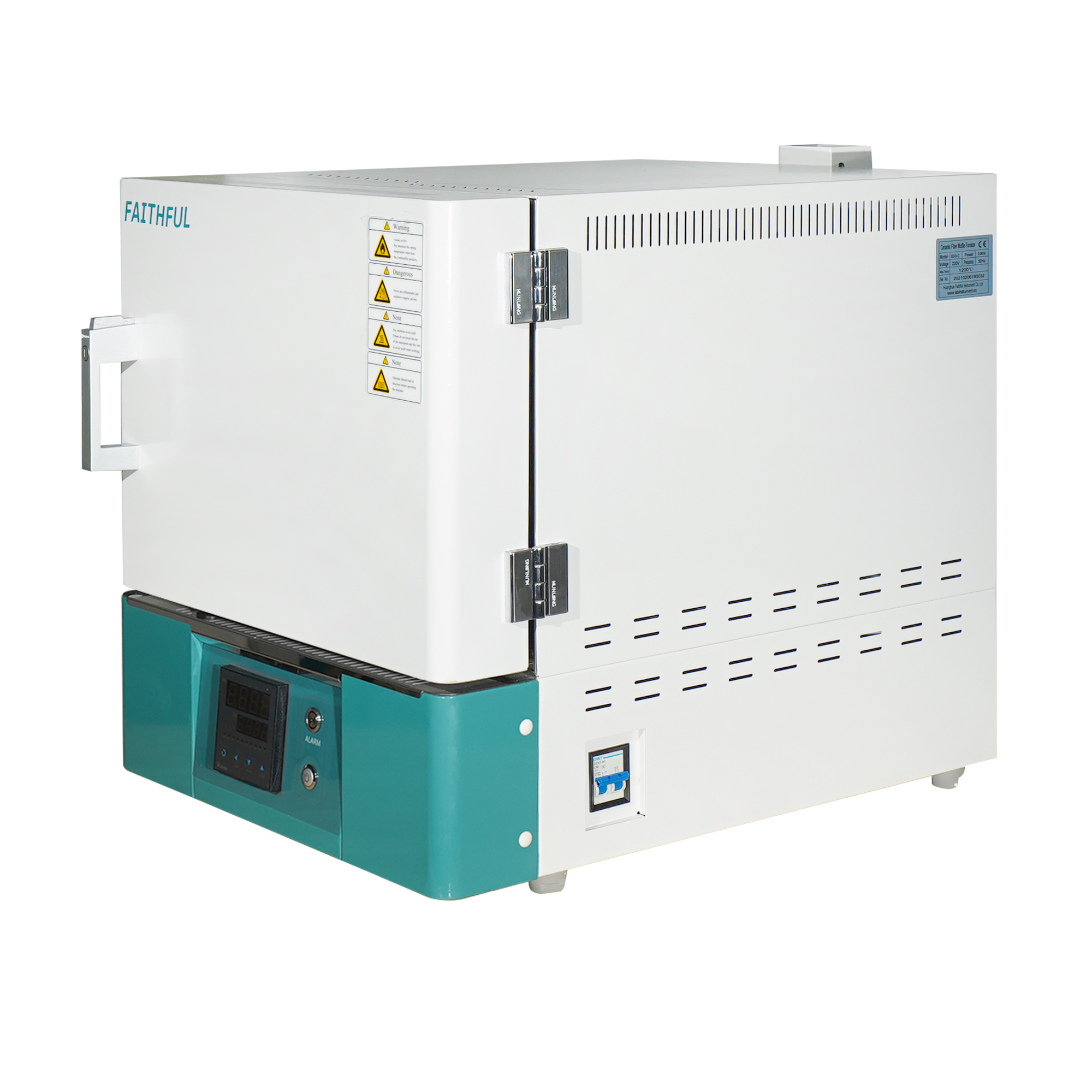

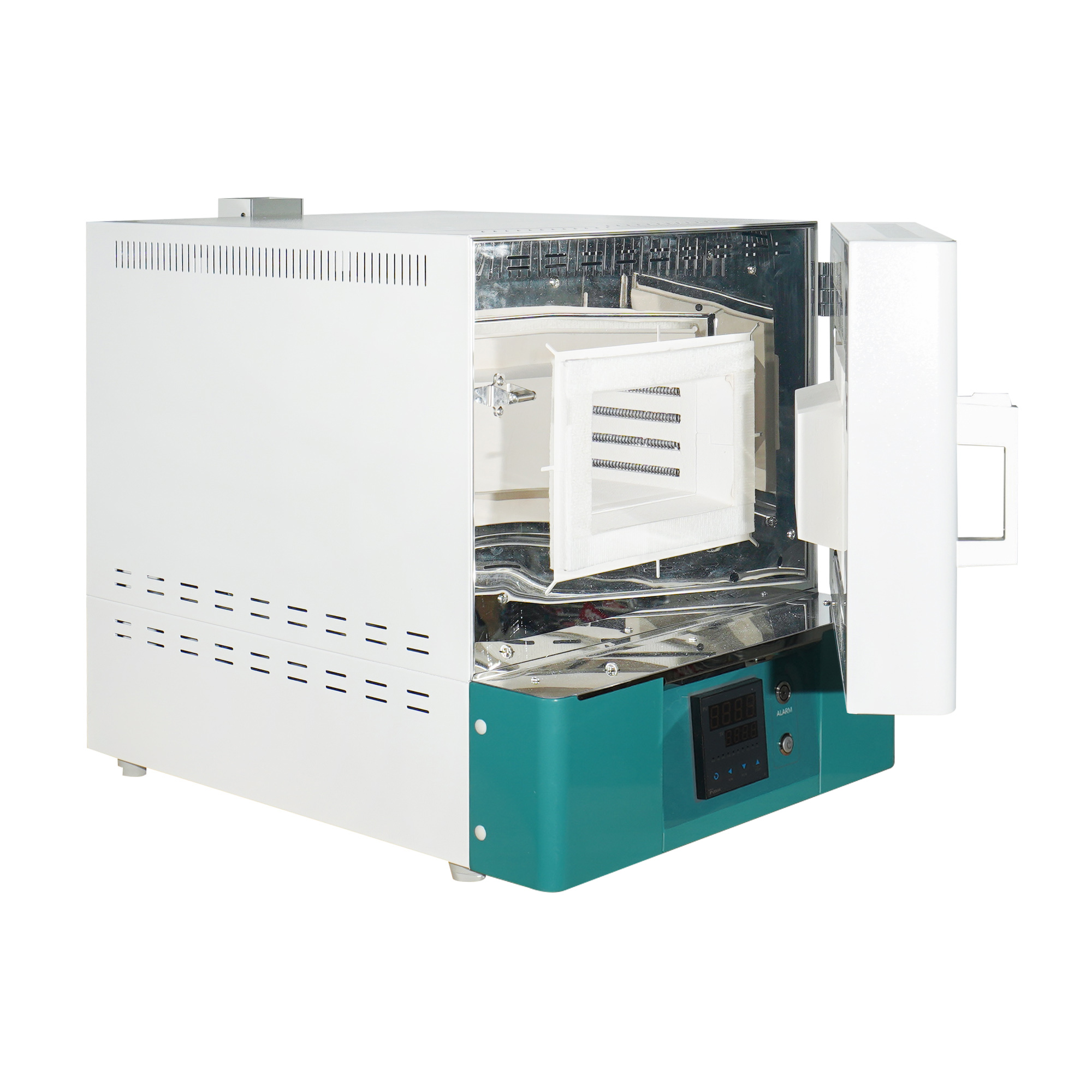

  • SX3-Series,SX4-Series

  • FAITHFUL

Product Description:

1. Mirror stainless steel mouth, long-term use will not change color.

2. Imported double insulated ceramic liner, stable performance

3. Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.

4. In the double shell, the air sleeve is insulated, and the double guiding air passage.

5.High-precision micro-computer controller and precision sensor are perfectly integrated, and the temperature is accurate.

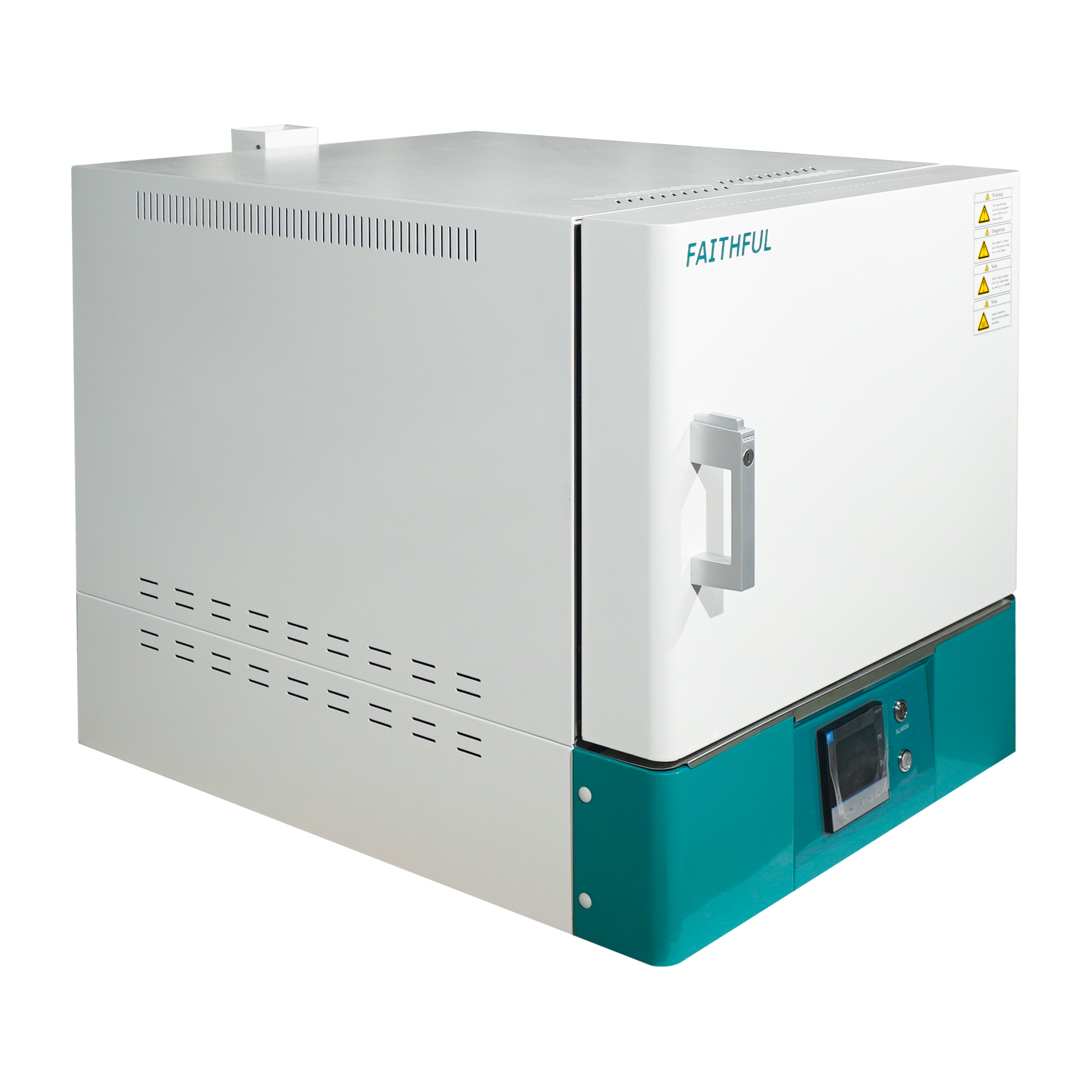

SX4 model also has the following characteristics:

1.Import time control system and high precise sensor with sensitive, response, high precision and good stability.

2.Adding exhaust devices is beneficial to ashing.

3. Split design, circuit detachable, easy to maintenance and repair.

4. P model is program temperature control type. Program temperature controller can programme multistage program.



Model

SX3-2.5-12

SX3-5-12

SX3-8-12

SX3-10-12

SX3-36-12

SX3-2.5-12B

SX3-5-12B

SX3-8-12B

SX3-10-12B

SX4-2-12

SX4-7-12

SX4-12-12

SX4-16-12

SX4-36-12

SX4-2-12B

SX4-7-12B

SX4-12-12B

SX4-16-12B

SX4-2-12P

SX4-7-12P

SX4-12-12P

SX4-16-12P

SX4-36-12P

SX4-2-12PB

SX4-7-12PB

SX4-12-12PB

SX4-16-12PB

Heating mode

Alloy wire heating in three sides left; right; top side.


Function

Temp. Range

100-1200℃

Temp. Resolution Ratio

1℃

Temp. motion

±1℃

Temp.Rising time to max temp

≤30min


Structure

Chamber material

Ceramic fiber

Outer shell

without B:cold rolling steel electrostatic spraying exterior; B model: stainless steel

Insulation layer

Ceramic fiber

Heater

Alloy heating wire

Power rating

1.5kW

3.0kW

4.5kW

6.0kW

9.0kW

Exhaust hole

φ30mm(chimney size 80*60mm)


Controller

Temp. control mode

SX3 Type : domestic Xianmen Yudian single-stage temperature controller

SX4 Type: Japaness SHIMAX single-stage temp. controller

SX4-P: Japaness Fuji color LCD 64- segment programmed temperature controller


Temp. setting mode

Touch button setting

Temp. display mode

Measuring temperature: LED upper row, setting temperature: the lower row

Timer

Without P: No Timing Function; SX4- -P: 0- -99 hours and 59 minutes(with Timing Waiting Function) SX3: 01-3200min


Operation function

Fixed temperature operation, timing function, auto stop.

Additional function

Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory

Sensor

SX3:K type sensor;SX4:High precision sensor

Safety device

Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection,thermocouple failure


Specification

Inner Chamber size

(W*L*H)(mm)

120*200*80

200*300*120

200*300*200

250*400*160

300*400*300

Exterior size (W*L*H)(mm)


450*685*600


530*785*640

530*785*720

600*895*700

630*885*820

Packing size (W*L*H)(mm)

570*770*740

650*870*780

655*875*865

720*980*845

750*970*965

Volume

2L

7L

12L

16L

36L

Current rating (50/60HZ)

AC220V/13.6A

AC220V/20.4A

AC220V/9.9A

AC380V/9.9A

AC380V/13.6A

NW/GW (kg)

33/37

45/50

62/68

77/96

87/106

optional type

Air port, USB interface, 5.0inch ture color screen, programmable controller with USB date storage function



CE for Incubator sxLVD
