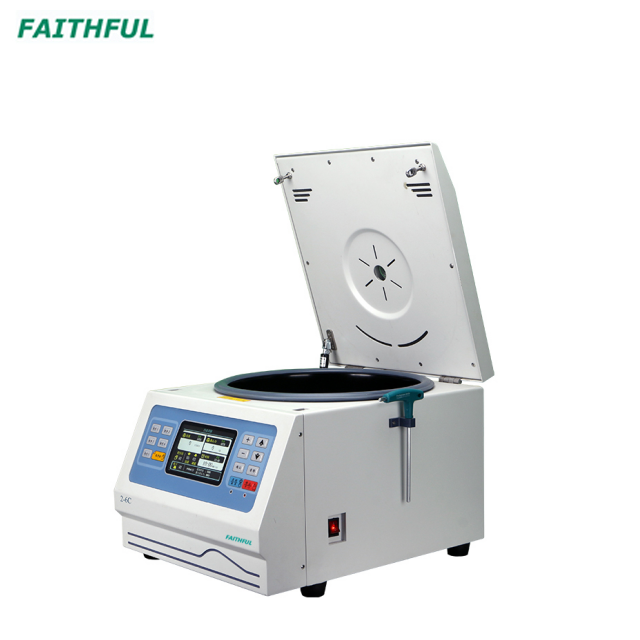

2-6C Low Speed Table Centrifuge

Availability:
Quantity:
  • 2-6C

  • FAITHFUL

Equipped with five groups of user-defined preset programs.

Program group shortcut key, large storage space, can store 99 program groups.

Automatic electronic door lock.

One key short-time centrifuge button.

HD large LCD display and the parameters can be revised during operation without shutdown.

Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

10 gear acceleration /deceleration with linear drive.

Two modes can be set: start timing/arrival revolution timing.

With rotor automatic identification system .

Over speed,over heat,unbalance protections with auto lid lock.

Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

It is equipped with a rotor cover that can be quickly locked for easy use.

Special noise reduction system.

Technical Parameters

Model

2-6C

Max Speed

6000rpm

Max RCF

4338×g

Max Capacity

4×100ml

Timer

1s~99h59min59s

Revolutions/min

±10r/min

Voltage

AC 220±22V 50/60Hz 10A

Power

300W

Noise Level

≤62dB (A)

Exterior Size

360×500×325 (mm)

Net Weight

31kg

Rotor Automatic Identification

Yes


Angle Rotor No.1

Angle Rotor No.2

Max, speed: 6000rpm

Max RCF: 4226xg

Rotor capacity: 12×15ml(W)

Max, speed: 6000rpm

Max RCF: 4338xg

Rotor capacity: 6×50ml(W)

Swing-out Rotor No.3

Swing-out Rotor No.4

Max, speed: 4200rpm

Max RCF: 2760xg

Rotor capacity: 4×50ml

Max, speed: 4200rpm

Max RCF: 2760xg

Rotor capacity: 4×100ml

Swing-out Rotor No.5

Swing-out Rotor No.6

Max, speed: 4200rpm

Max RCF: 2760xg

Rotor capacity: 16×15ml

Max, speed: 4200rpm

Max RCF: 2760xg

Rotor capacity: 24×10ml
