2XZ-2L,2XZ-4L,2XZ-6L

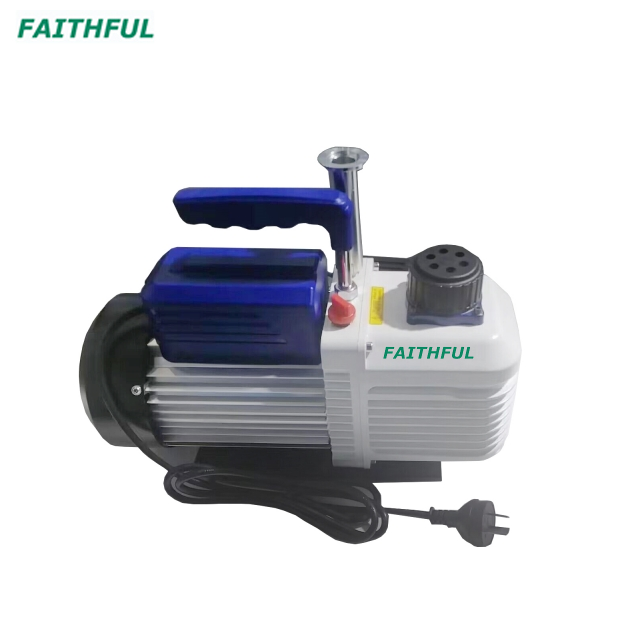

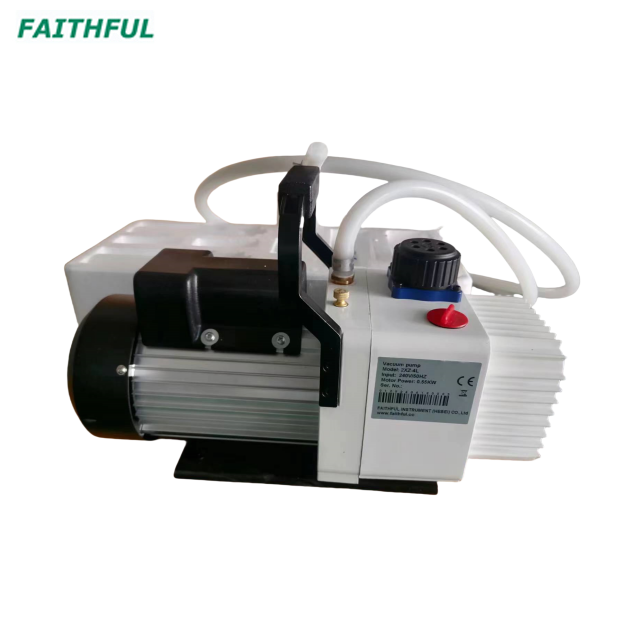

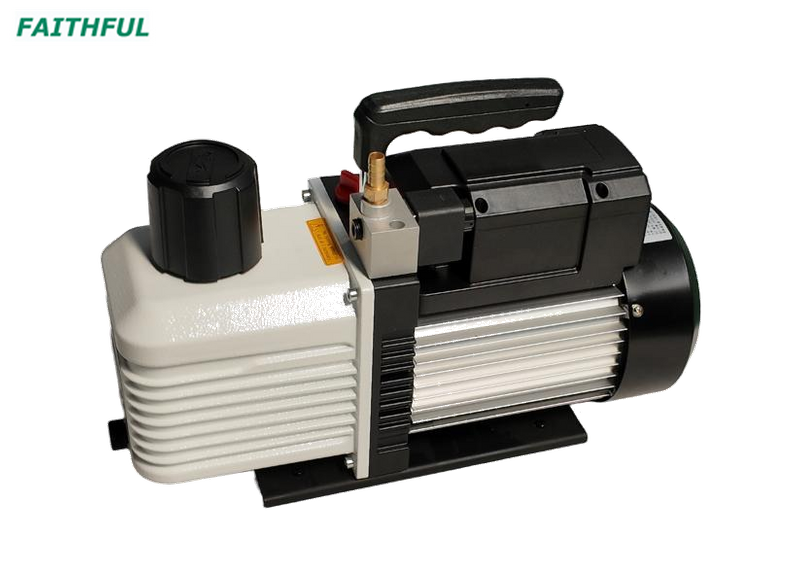

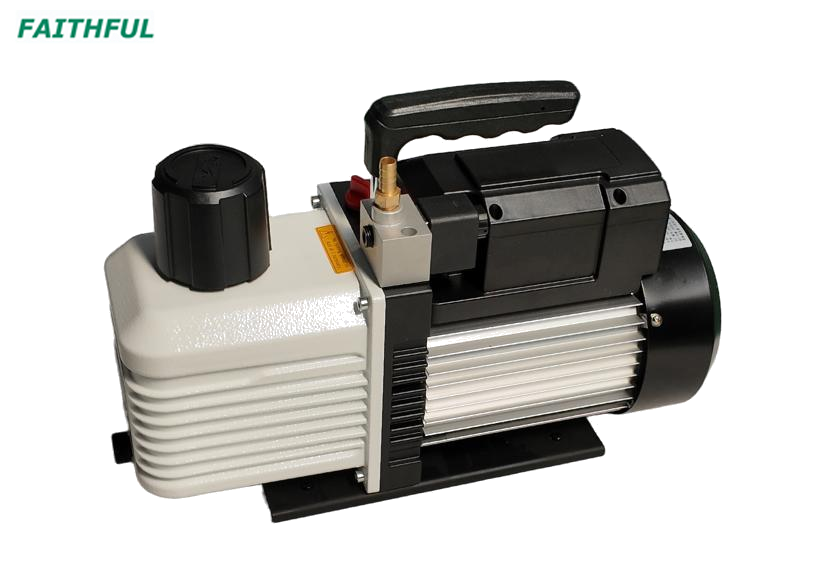

Rotary Vane Vacuum Pump
Used to medical and health undertakings, scientific research, agriculture and other units, medical equipment, dressing, glassware, solution medium disinfection and sterilization
Products Introduces
Integral steel structure, rotary base, with high precision, high stability.
Adopt special military anti-corrosion treatment technology.
Air-cooled structure, no need for external water cooler.
Built-in gear pump and constant pressure oil supply mechanism, high suction pressure can also run stably. Double anti-oil structure.
Rotary Vane Vacuum Pump
Used to medical and health undertakings, scientific research, agriculture and other units, medical equipment, dressing, glassware, solution medium disinfection and sterilization
Products Introduces
Integral steel structure, rotary base, with high precision, high stability.
Adopt special military anti-corrosion treatment technology.
Air-cooled structure, no need for external water cooler.
Built-in gear pump and constant pressure oil supply mechanism, high suction pressure can also run stably. Double anti-oil structure.
Model | 2XZ-2L | 2XZ-4L | 2XZ-6L | |
Ambient Temp. | 5-40 | 5-40 | 5-40 | |
Humidity | Less than 85% RH | |||
Storage and Operating Altitude | <1000m | |||
Flow Rate m//h(L/s) | 50Hz | 8(2.2) | 16(4.4) | 24(6.7) |
60Hz | 2.0 | 4.0 | 6.0 | |
Ultimate Vacuum(Pa) | 2Pa | 2Pa | 4x10¯¹Pa | |
Power Supply | single/three phase | single/three phase | single/three phase | |
Rated Power(KW) | 0.35kw/0.55kw | 0.55kw/0.75kw | 0.75kw/1.1kw | |
Inlet and Exhaust Port | 10mm | |||
Oil Capacity(L) | 0.6-1 | 0.9-1.5 | 1.2-2.0 | |
Motor Speed (RPM) | 50Hz | 1440 | 1440 | 1440 |
60Hz | 1720 | 1720 | 1720 | |
Operation Temp(℃) | 5-40 | 5-40 | 5-40 | |
Noise Level(dB) | ≤56 | ≤58 | ≤58 | |
Weight(kg) | 25 | 30 | 35 | |
Dimensions(mm) | 460x145x220 | 560x192x320 | 560x192x320 | |
Model | 2XZ-2L | 2XZ-4L | 2XZ-6L | |
Ambient Temp. | 5-40 | 5-40 | 5-40 | |
Humidity | Less than 85% RH | |||
Storage and Operating Altitude | <1000m | |||
Flow Rate m//h(L/s) | 50Hz | 8(2.2) | 16(4.4) | 24(6.7) |
60Hz | 2.0 | 4.0 | 6.0 | |
Ultimate Vacuum(Pa) | 2Pa | 2Pa | 4x10¯¹Pa | |
Power Supply | single/three phase | single/three phase | single/three phase | |
Rated Power(KW) | 0.35kw/0.55kw | 0.55kw/0.75kw | 0.75kw/1.1kw | |
Inlet and Exhaust Port | 10mm | |||
Oil Capacity(L) | 0.6-1 | 0.9-1.5 | 1.2-2.0 | |
Motor Speed (RPM) | 50Hz | 1440 | 1440 | 1440 |
60Hz | 1720 | 1720 | 1720 | |
Operation Temp(℃) | 5-40 | 5-40 | 5-40 | |
Noise Level(dB) | ≤56 | ≤58 | ≤58 | |
Weight(kg) | 25 | 30 | 35 | |
Dimensions(mm) | 460x145x220 | 560x192x320 | 560x192x320 | |
