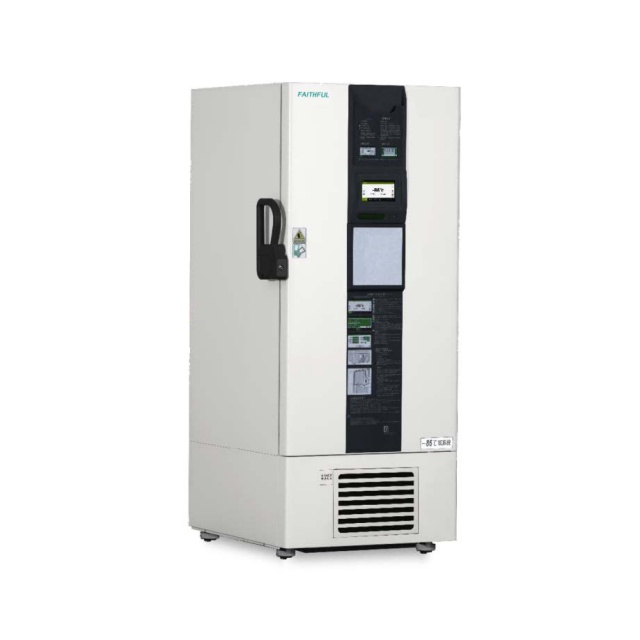

-86°C Ultra Low Temperature Freezer- FSF-86V408D

Mether Ultra Low Temperature Freezer are specially designed to store samples products
Availability:
Quantity:
  • FSF-86V408D

  • FAITHFUL

2 Independent Cooling System:Dual cooling system is designed with 2 independent cooling systems which provides extra insurance for bio-samples. Dual cooling system maximizes optimal reliability, longevity and efficiency.

Extreme Safety:Should one system unexpectedly fail, the other will maintain a temperature in the -70℃ range ensuring that the sensitive samples not put at risk separately.

Ultimate cooling performance:Under normal working conditions, the 2 independent systems start in sequence at intervals. Then 2 systems work together to get a rapid pull-down performance.

7″ LCD touch screen:Easy operation and observation.

Smart Operating System:Authorities, alarms, curve & events.

Advanced insulation tech:Fumed Silicon V.I.P & PURF.

Multi-layer sealing design:Foamed inner doors with silicon gaskets.

Eco-friendly:CFC-free refrigerant & insulation.

Energy saving:More efficient cooling system.


Model

FSF-86V408D

FSF-86V588D

FSF-86V728D

FSF-86V838D

Cooling method

Direct Cooling

Defrost

Manual

Temperature range

-40℃~-86℃

Ambient temperature

10~32℃

Display

7'' LCD touch screen

Access port QTY/Dia.

2/25mm

Outside material

Color sprayed steel

Inside material

Stainless steel

Castor

Universal

Refrigerant

R4001 (mixed gas)

Temp. controller

Microprocessor

System

Dual cooling system

Sensor

PT100

Compressor brand/QTY

SECOP/2

Insulation

PURF+VIP

Inner door material/QTY

Foamed SS/2

Racks

8(5X4)+8(4*4)

16*(5x5)

18*(5x4)+6*(6x4)

24*(5x5)

Boxes (2 Inches)

288

400

504

600

Samples(2ml)

28,800

4000

50400

60000

Voltage frequency

220V 50/60Hz;110V/60Hz

Power(W)

1350

1500

1400

1700

Current(A)

11A

10.47

10.37

10.75

Power consumption

12.3kWh/24h

16.1kWh/24h

18.1kWh/24h

18.8kWh/24h

Noise(db)

53

53

55

55

Package size(W*D*H)(mm)

965*1025*2125

970*1180*2200

1330*1015*2210

1270*1170*2200

Exterior size(W*D*H)(mm)

891*992*1945.5

891*1155*1994.5

1248*975*1994.5

1179*1135*1994.5

Interior size(W*D*H)(mm)

606*575*1180

606*738*1310

963*558*1350

894*718*1310

Capacity(L/cu.ft)

408/14.40

588

728

838

N.W/G.W(kg)

235.5/315

283/358.5

316/392

391/419

USB Access

Y

RS485 Access

Y

Remote alarm access

Y
