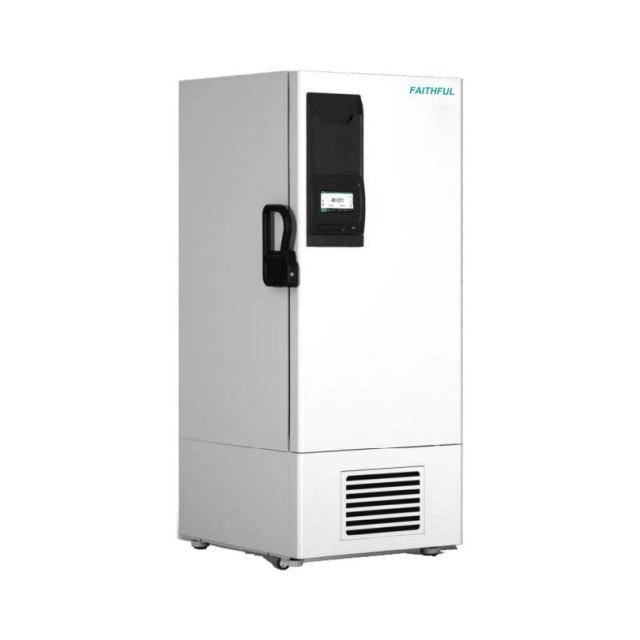

-86°C Ultra Low Temperature Freezer- FSF-86V408E

Ultra Low Temperature Freezer are specially designed to store samples products
Availability:
Quantity:
  • FSF-86V408E

  • FAITHFUL

Super-cooling technology:The powerful cooling system drives the unique mixed refrigeration system for fast cooling down. This system is stable, energy saving and easy maintenance.

Advanced thermal insulation:The insulation are designed with the latest generation of VIP technology to achieve thermal conductivity of 0.005 W(m.K). That makes ULTs more efficient in Insulation and less heat loss, so as to achieve the purpose of energy saving as well as space-saving.

7" LCD touch screen:Easy operation and observation.

Smart Operating System:Authorities, alarms, curve & events.

Advanced insulation tech:Fumed Silicon V.I.P & PURF.

Multi-layer sealing design:Foamed inner doors with silicon gaskets.

Energy saving:More efficient cooling system.

Eco-friendly:CFC-free refrigerant & insulation.


Model

FSF-86V340E

FSF-86V408E

FSF-86V588E

FSF-86V728E

FSF-86V838E

Cooling method

Direct Cooling

Defrost

Manual

Temperature range

-40°C~-86°C

Ambient temperature

10~32℃

Display

7" LCD touch display

Access port QTY/Dia.

2/25mm

Outside material

Power coated steel

Inside material

Stainless steel

Castor

Y/4 4Universal

Shelf/drawer QTY

Stainless steel shelf/3

Inside door

2

Refrigerant

R4001(mixed gas)

Temp. controller

Microprocessor

System

Auto-cascade

Sensor

PT100

Compressor brand/QTY

SECOP/1

SECOP/1

SECOP/2

SECOP/2

SECOP/2

Capacity(L)

340

408

588

728

838

Insulation

PURF+VIP

Inner door material/QTY

Foamed SS/2

Racks

12*(4X4)

16*(5x5,4x4)

16*(5x5)

18*(5x4)+6*(6x4)

24*(5x5)

Boxes (2 Inches)

192

288

400

504

600

Samples(2ml)

19,200

28800

40000

50400

60000

Voltage

220V 50Hz/60Hz

Power(W)

810

890

1500

1400

1700

Current(A)

5.13

5.34

10.35

10.37

10.75

Power consumption

11.63KWh/24h

10.92KWh/24h

16.02KWh/24h

23.44KWh/24h

19.27KWh/24h

Noise(db)

52

50

53

53

55

Package size(W*D*H)(mm)

955*1085*2080

963*1025*2125

970*1185*2200

1320*1010*2200

1263*1165*2210

Exterior size(W*D*H)(mm)

854*1006*1907

872*1028*1945.5

891*1155*1994.5

1248*97*1994.5

1179*1135*1994.5

Interior size(W*D*H)(mm)

488*607*1140

606*575*1180

606*738*1310

963*571*1350

894*718*1310

NW./GW.(kg)

224.5/297.5

235/298

283/345

316/399.5

332/418.5

USB Intereface

Yes

RS232/485

Yes
